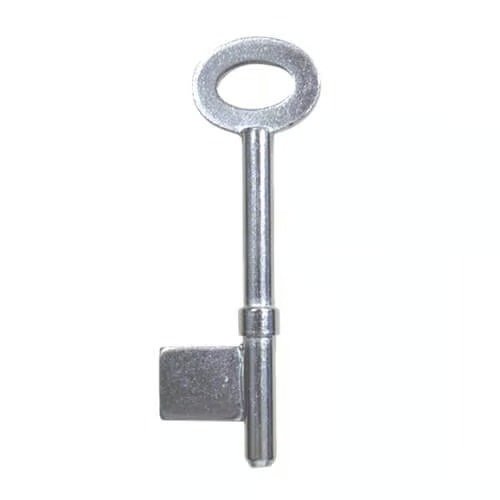

6.5 Gauge Mortice Key Blank 13mm Bit

ABT Gibbons copy gearbox is for UPVC doors but does not feature a snib and a faceplate is not supplied. Top and bottom extensions have now been discontinued.

Brackets for the extension pieces are threaded.

A version for aluminium doors with a snib is available.

Handle spindle centres are 87mm/48mm

Handles to suit:

EAS48LLW – White Lever/Lever

EAS48LLG – Gold Lever/Lever

EAS4885LLW – White Offset Lever/Moveable Pad

EAS4885LLG – Gold Offset Lever/Moveable Pad

Latch Reversal: Push in the latch, and undo the screw inside of the lock case (adjacent to the latch) to remove the latch. reverse and reinsert.

The Hooply multipoint gearbox has Faceplate dimensions of 240mm x 24mm, Centers of 68mm, and a Backset of 60mm. This lock case has Fingerbolts – see HOO002 for the standard deadbolt version. It is commonly used on site containers and security steel doors.

Operation: Key Wind

Latch reversal: Depending on the date of manufacture either:

1. To reverse the latch, undo the screw on top of the lock case and push the silver button up and the latch should pop out. Twist and reinsert the screw.

2. Using a screwdriver or similar insert into the round hole in the back edge of the lock case behind the latch. Push the entire latch bolt forward until the bolt clears the faceplate and can be rotated. Spin the bolt through 180 degrees. remove the screwdriver from the back of the case and the bolt will move back into position.
