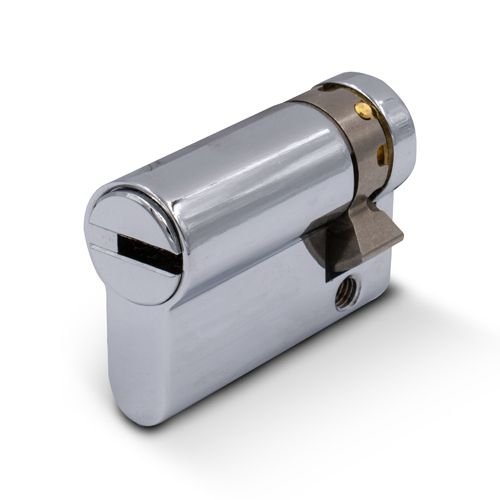

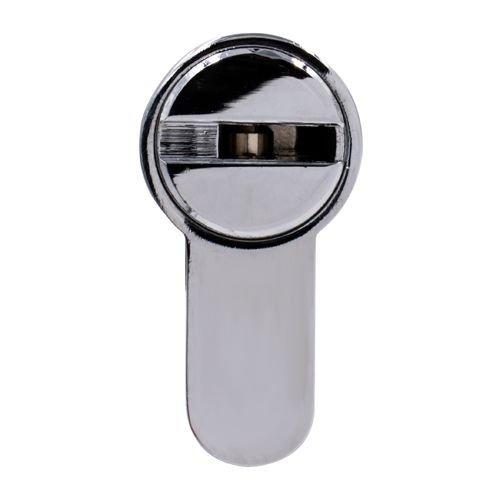

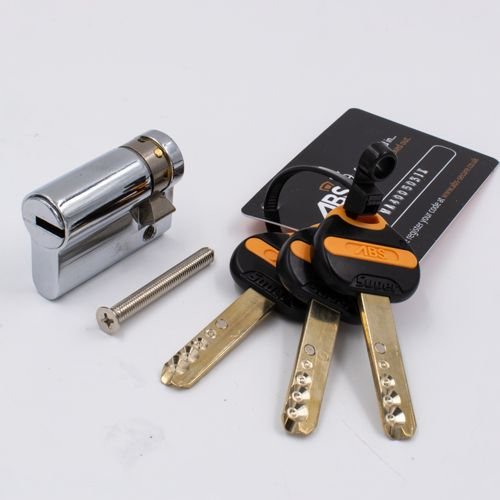

ABS Euro Single Cylinders with Adjustable Cam
ABS Euro Single Adjustable Cam Cylinder. Designed to prevent burglaries. Features Anti- snap to TS007. Anti pick, anti bump, anti pull and anti drill. Comes with 8 pins and 1 magnetic. Suitable for ABS Padlocks.
£37.78
