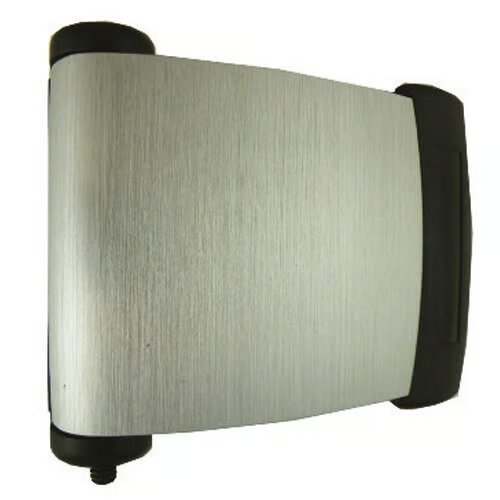

Adams Rite 4591 EN179 Paddle Handle – For Metal Emergency Exit Doors – Screw In Cylinder Version


Conforms to BS-EN179 for use in areas accessed by the public where a panic situation is not foreseen in an emergency.

£201.86

Supplied with the ability to change the handing making it suitable to be used for push/pull and left/right applications.

Suitable for use with the 4700/4900/1890 series screw in cylinder deadlatch range of locks.

16mm length spindle version with cam plug suitable for Adams Rite 4700/4900 series.

22mm length spindle version with No cam plug suitable for use with MS1890 series.

  • Conforms to BS EN179
  • Height: 105mm
  • Width: 128mm
  • Projection: 75mm
  • Maximum door width: 1300mm
  • Maximum door thickness: 80mm
  • Supplied handed but can be reversed to suit push/pull and left/right applications
  • 16mm length spindle version with cam plug suitable for Adams Rite 4700/4900 series
  • 22mm length spindle version suitable for use with MS1890 series
  • Operation: Push/Pull pad to withdraw the latch
Description

16mm Spindle, 22mm Spindle
