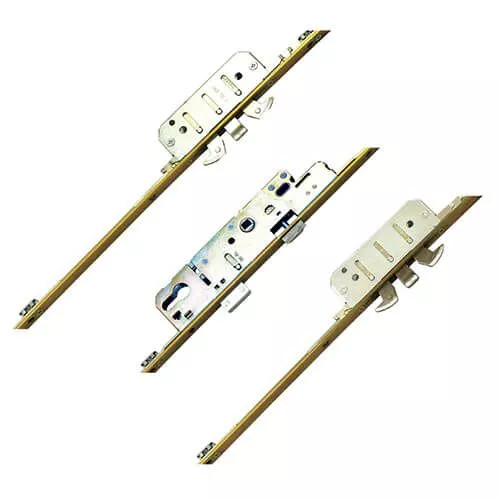

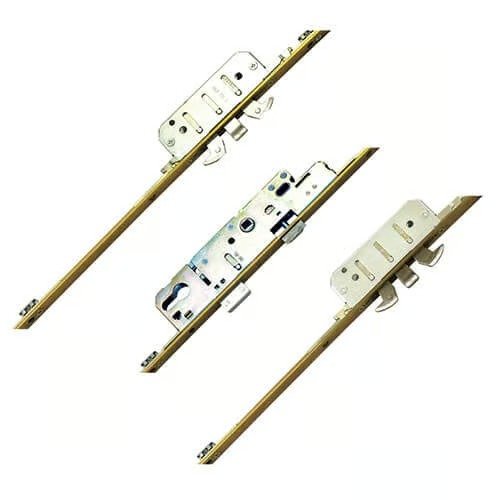

AGB Latch Deadbolt 2 Poseidon Bolts Lift Lever Multipoint Door Lock (distance between Poseidon bolts = 1410mm)

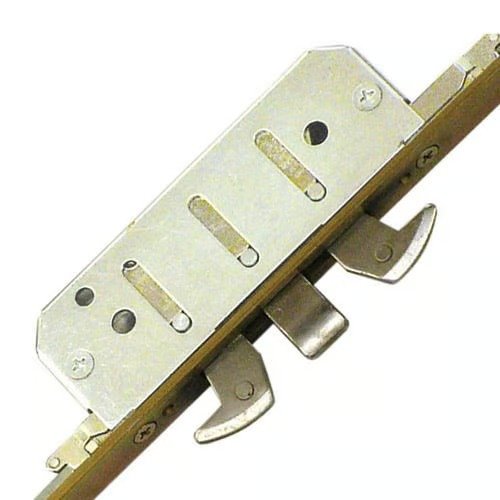

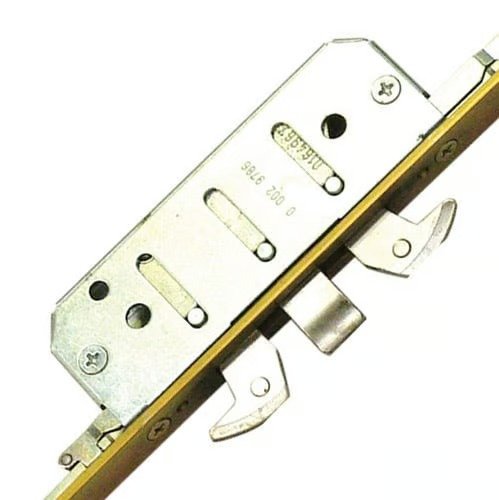

This AGB multipoint door lock features 4 Hooks, 3 Deadbolts & 1 Latch.
AGB locks are made in Italy and while relatively uncommon in the UK market their locking positions are generally unique.
AGB locks are manufactured in Italy. They were historically available in a number of different configurations but only the Poseidon lock is still available. The AGB Poseidon lock features a unique hook and deadbolt arrangement on the outer locking points. Designed to look like a trident, each hook throws in the opposite direction to the other with a deadbolt separating them.
AGB UPVC door locks are easy to identify from the logo stamped on the faceplate or the unique Poseidon locking arrangement. These locks are only available with a 35mm backset and a 16mm faceplate.
The operation is lift lever with a single spindle.
Operation: Lift Lever
To lock the door
1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.
We stock a range of associated products for AGB multipoint door locks, including keeps, spindles, handles and accessories.

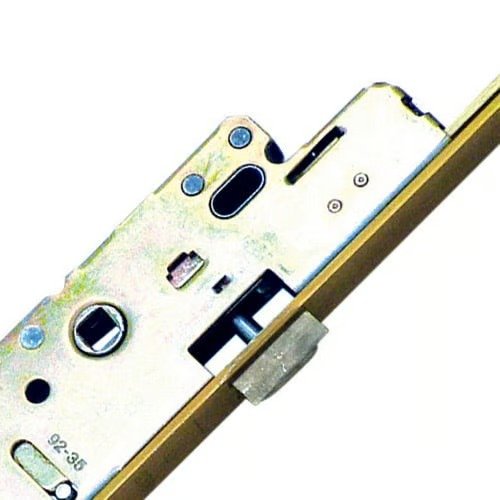

Latch Reversal: Push in the latch and a screw will appear in the back of the lockcase. Undo the screw to remove the latch. Reverse, reinsert and replace screw.
You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
£144.99
- Manufacturer: AGB
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Hooks: 4
- Deadbolts: 3
- Latch: 1

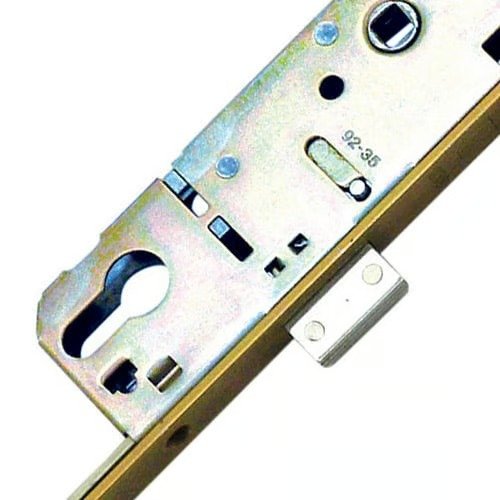

- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Non handed
- Distance Between Inner Locking: 1410mm
- Height: 2200mm
- Top Deadbolt to Spindle: 665mm
- Bottom Deadbolt to Spindle: 745mm
- Door Material: UPVC, Aluminium, Timber, Composite
