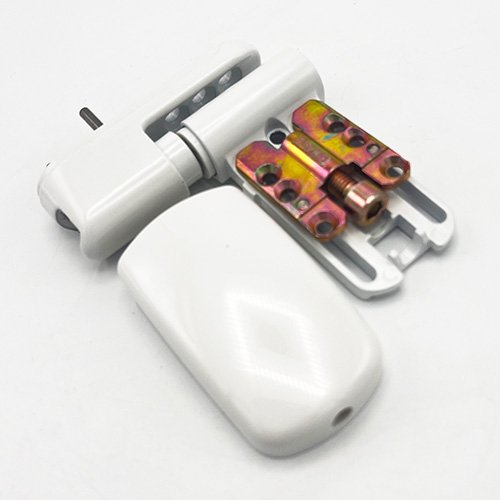

Avocet Triad 3D Flag Hinge for Sculptured or Chamfered Profiled UPVC Doors

Avocet Triad 3D Flag Hinge for Sculptured or Chamfered Profiled UPVC Doors. 3D adjustment 12-16mm (19mm with packers). Simple Allen key adjustment.

Sculptured or chamfered profile version.

• Manufacturer: Avocet
• Colour: White

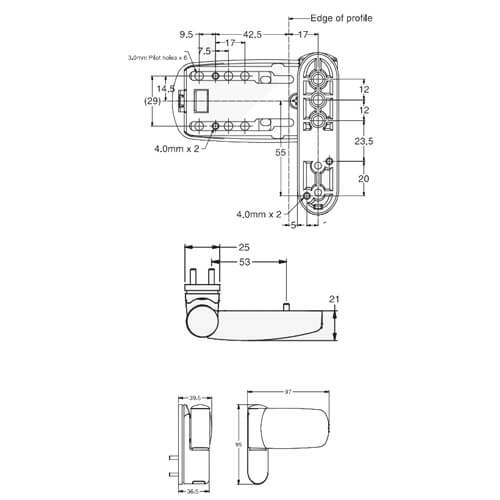

• Height: 95mm
• Flag width: 97mm
• Distance between pins: 53mm
• Rebate: 12mm-16mm (19mm with packers)
• Sash Weight: 30kg per hinge
• Finishes conform to BS EN 1670 – Grade 5
