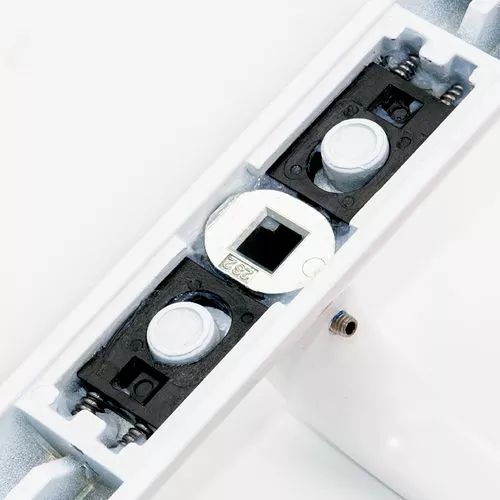

- Sprung

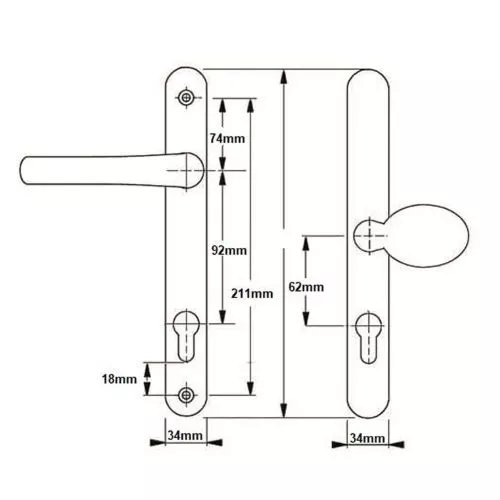

- Length: 248mm
- Width: 34mm
- Centres (PZ): 92/62mm
- Screw centres: 211mm
- Base of euro to bottom screw: 18mm

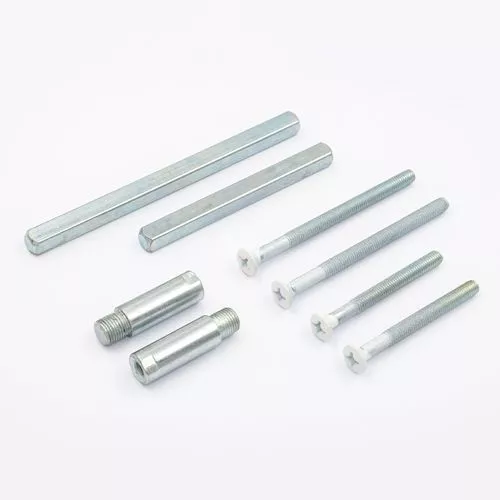

- Supplied with fixings and spindle kit (x2Â 87mm & x2 67mm)
- Supplied with 2 small screws for standard thickness door and 1 Long/1 Medium screw with a set of longer reinforced bosses for thicker doors
- Supplied as a pair
- Non-handed
- Available boxed
- Solid cast external handle

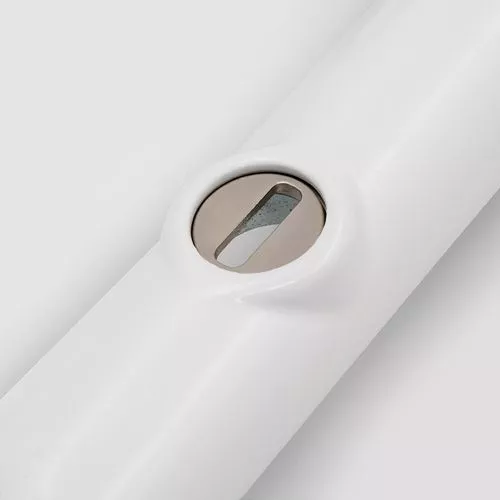

- Cast molybdenum cylinder disk
- Hardened steel cylinder protection

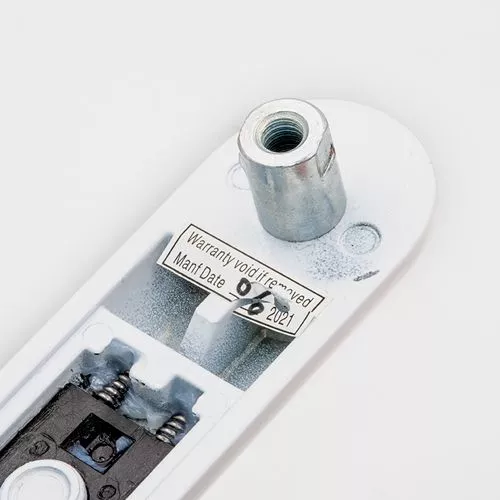

- Hardened steel fixing bosses

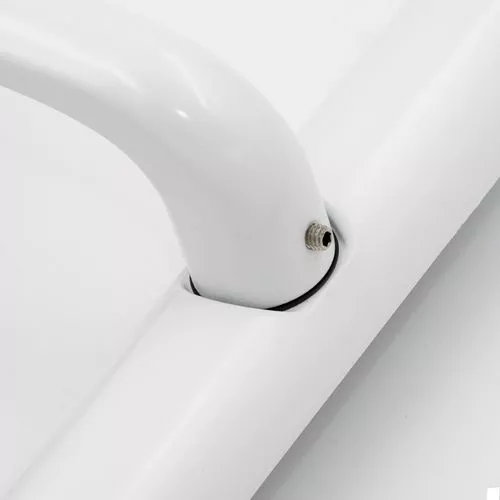

- Grub screw handle fixing
Door Handles, Lever Moveable Pad, Multipoint & UPVC

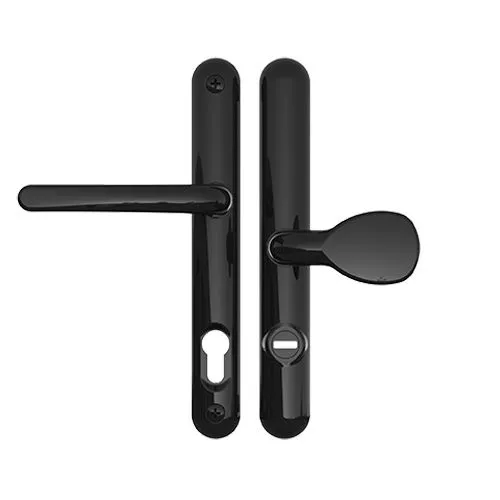

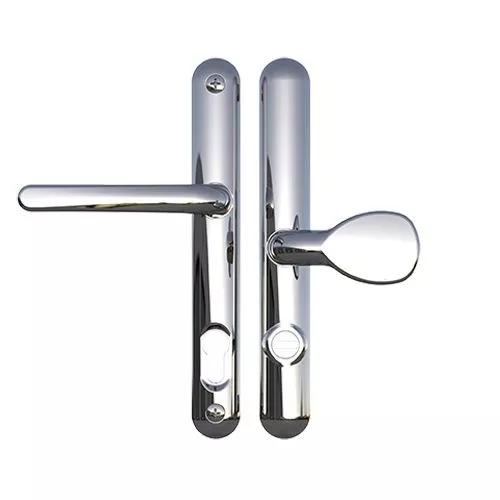

Brisant Secure Ultion TS007 2* Lever Pad UPVC Multipoint Door Handles – 92/62mm PZ Sprung 211mm Screw Centres
£24.05 – £34.25

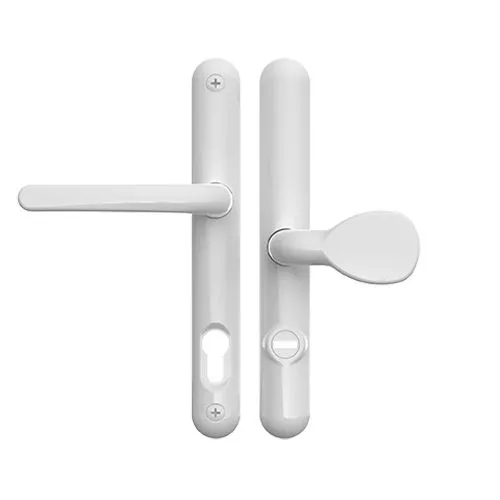

+ Free ShippingThese Ultion TS007 2 * handles have sprung 92/62mm PZ internal lever & external moveable pad handle.
With a backplate of 248mm x 34mm they are available in various finishes.
The distance between the fixing screws is 211mm with the bottom screw positioned 18mm below the euro profile cut-out.

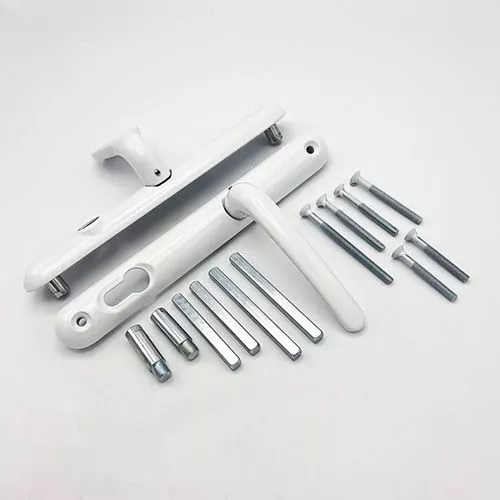

They are supplied as a pair complete with a PVC and composite spindle kit with fixing screws. Supplied with 2 small screws for standard thickness door and 1 Long/1 Medium screw with a set of longer reinforced bosses for thicker doors.

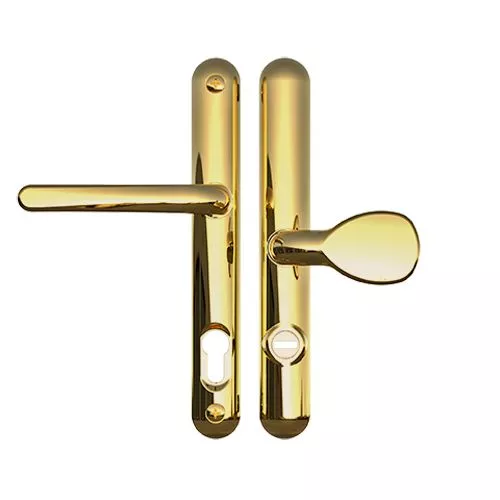

| Colour | Black, Chrome, Gold, White |
|---|
