Briton 1110 Size 2-4 Overhead Door Closer

Compare

These Briton 1110 Overhead Door Closers have a adjustable strength of size 2-4. Suitable for doors with a maximum weight of 80kg and a maximum width of 1100mm. Suitable for fire door applications, tested to BS EN1154 and CE Marked.

£50.35

These Briton 1110 Overhead Door Closers have a adjustable strength of size 2-4.

Suitable for doors with a maximum weight of 80kg and a maximum width of 1100mm. Suitable for fire door applications, tested to BS EN1154 and CE Marked.

Supplied with template for accurate installation and universal fixings for regular, transom and parallel mount fitting.

This versatile door closer features adjustable closing speed and adjustable latch action – See FAQs for more information on how these functions work.

  • Fitting: Overhead.
  • Applications – Fig 1, 61 and Fig 66.

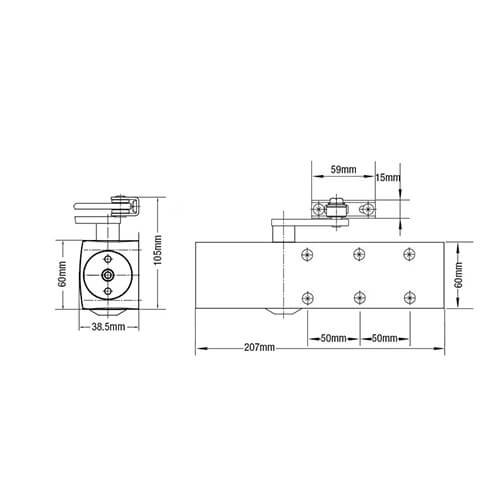

  • Height: 60mm.
  • Width: 38mm.
  • Length: 207mm.
  • Maximum Door Weight: 80kg.
  • Maximum Door Width – 1100mm.
  • Strength: Adjustable Size 2-4.
  • Adjustable Closing Speed: Yes.
  • Adjustable Latch Action: Yes.
  • Delayed Action: No.
  • Backcheck: No.
  • Hold Open – No.
  • Non Handed.
  • UKCA Marked to EN 1154 (1121-CPR-UK-AD7580)
  • CE Marked to EN 1154 (2812-CPR-AD0033)
  • Certifire Approved (CF388)
  • Fire tested to EN1634 on timber doors to achieve a 2 hour fire rating, and 4 hours* for metal doors
  • Environmental Product Declaration in accordance with ISO 14025 and EN 15803

Product FAQs

What is adjustable closing speed?

Adjustable closing speed allows for the adjustment of the speed with which the door is closed.

What is delayed Action?

Delayed action allows the closer to close the door more slowly at the top of its cycle.

What is hold open?

Hold open means the door can be held in the open position.

How do I know what strength door closer I need?

The strength required is selected depending on the doors width and weight.

What is adjustable latch action?

Adjustable latch action allows the speed over the final 7-10 degrees to be adjusted to overcome latches and seals.

What does Applications Fig 1, Fig 61 and Fig 66 mean?

Applications are the door closer fixing positions –

Fig 1 – The closer is mounted onto the pull side of the door, and the arm attaches to the frame above.
Fig 61 – The closer is mounted onto the push side of the door onto the frame, and the arm attaches to the door below.
Fig 66 – The closer is mounted onto the push side of the door and the arm attaches to the frame above via a parellel arm bracket.

SKU: 1110S Categories: , Brand:
Size

256mm, 303mm, 359.5mm, 380mm, 401mm, 458mm
