Panic and Emergency Exit Hardware, Outside Access Devices

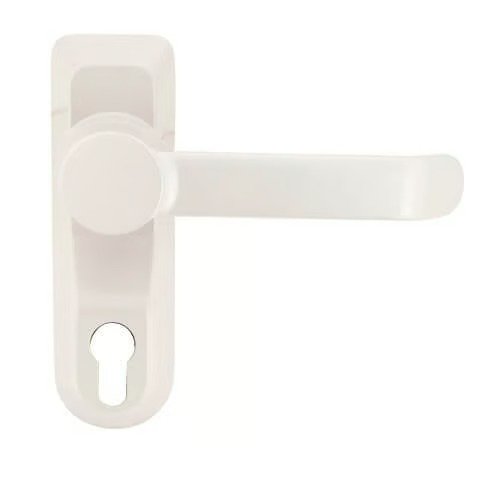

Briton 1413E Outside Access Device – Lever Handle No Euro Cylinder – For Timber or Metal Doors

Name: Briton 1413E Outside Access Device - Lever Handle No Euro Cylinder - For Timber or Metal Doors - Get Door Locks
SKU: 1413ENCLE
Price: 86.15 GBP
Availability: InStock

Compare

Briton 1413E/LE Outside Access Device for Timber or Metal doors. Lever version without euro cylinder. If replacing original Rim cylinder version the use of an adaptor plate to cover the original screws may have to be used – Part Number – 1413AP

£86.15

Description
Specification

Briton 1413E/LE Outside Access Device for Timber or Metal doors.

Lever version without euro cylinder.

If replacing original Rim cylinder version the use of an adaptor plate to cover the original screws may have to be used – Part Number – 1413AP

Operation:

When locked ,the knob is disengaged from the mechanism and still spins therefore preventing unauthorised entry.

When unlocked, the knob, spindle and mechanism engage allowing the shoot bolts, latch or pullman latches to be withdrawn from outside of the door.

Once the door is opened from the inside or outside the knob remains unlocked until re-locked with a key – The unit is NOT self locking.

Lever variant is attached to the body by a shear pin. In the event of severe abuse, the shear pin will break protecting the mechanism, the shear pin can then be replaced.

Height: 175mm.
Width: 60mm.
Projection: 88mm.
Lever Length: 135mm
Suits doors up to 55mm thick.

Supplied with a 3010 half euro cylinder with 3 keys, adjustable cam and rear entry retaining screw.
Suggested replacement cylinder code: FD302CYL (Non Restricted).
Can be incorporated into a masterkey system or keyed alike suite in-house.(the euro cylinder will require replacing).

Supplied with fixings to suit timber or metal doors.
Boxed.
Non handed(Lever is reversible).
Surface mounted on the outside of the door using machine screws.

SKU: 1413ENCLE Categories: Panic and Emergency Exit Hardware, Outside Access Devices Brand: Briton

Colour	Silver, White
