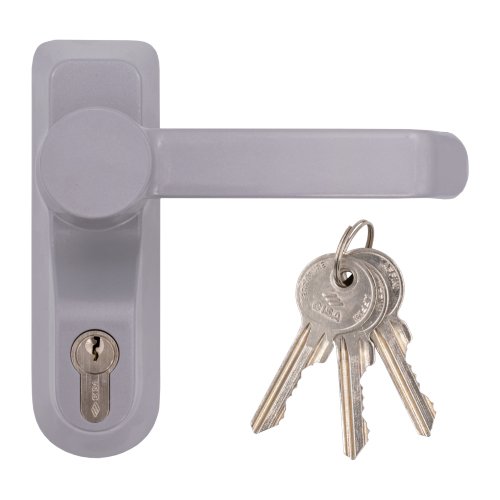

Briton 1413E Outside Access Device – Lever Handle with Euro Cylinder – For Timber or Metal Doors


Briton 1413E/LE Outside Access Device for Timber or Metal doors. Lever version with euro cylinder.

£95.36

Briton 1413E/LE Outside Access Device for Timber or Metal doors.

Lever version with euro cylinder.

  • Height: 175mm.
  • Width: 55mm.
  • Projection: 81mm.
  • Lever Length: 133mm
  • Suits doors up to 40mm and 70mm thick.
  • Supplied with a half euro cylinder with 3 keys, adjustable cam and side entry retaining screw.
  • Suggested replacement cylinder code: I093010N (Non Restricted).
  • Can be incorporated into a masterkey system or keyed alike suite in-house.(the euro cylinder will require replacing).
  • Lever variant is attached to the body by a shear pin. In the event of severe abuse, the shear pin will break protecting the mechanism, the shear pin can then be replaced.
  • Supplied with fixings to suit Timber or Metal doors
  • Boxed.
  • Non handed(Lever is reversible).
  • Surface mounted on the outside of the door using machine screws.
  • Operation:
  • When locked ,the lever is disengaged from the mechanism and still pulls down therefore preventing unauthorised entry.
  • When unlocked, the lever,spindle and mechanism engage allowing the shoot bolts,latch or pullman latches to be withdrawn from outside of the door.
  • Once the door is opened from the inside or outside the lever remains unlocked until re-locked with a key – The unit is NOT self locking.
Colour

Silver, White
