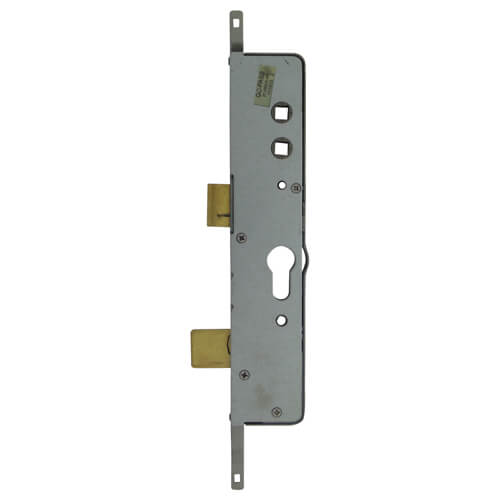

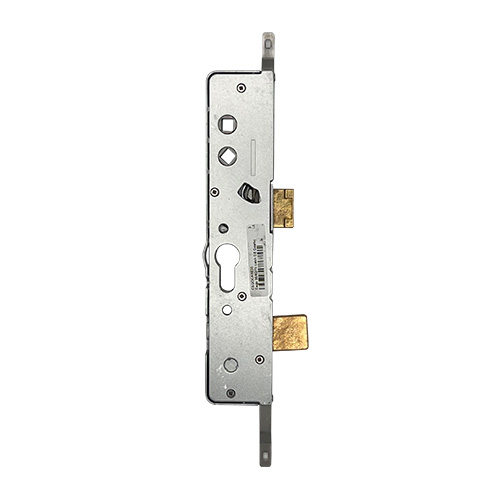

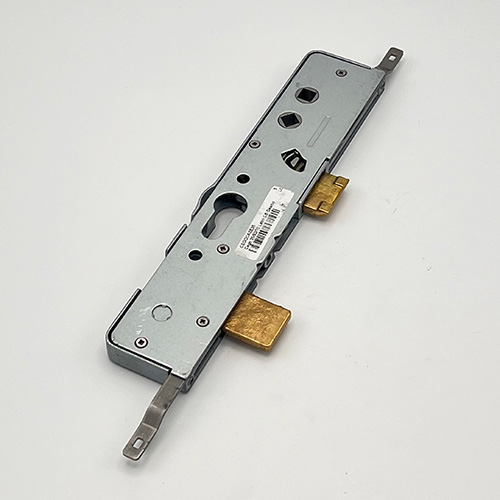

Cego Surelock Copy Multipoint Gearbox – Lift Lever or Double Spindle
Old style 05002 case only. Also known as Zenith, Bowater, or Staybrite. Some versions of Staybrite cases have different connectors and will not interchange with CEGOCASE35.
Screw holes are unthreaded – The use of self-tapping screws is required.
Replacement Hook Shells are also available. Part Number: CEGOHOOK.
Operation: Lift lever or double spindle
Latch reversal: Lay the multipoint lock strip on the floor with the latch and deadbolt facing to the left. undo the 5 screws on the side of the case, remove the flat positioning plate, remove the latch clip, twist the latch into the desired position, reinsert the flat positioning plate and latch clip, replace the cover, and tighten the screws.34.7
£34.73
- Manufacturer: Cego Copy

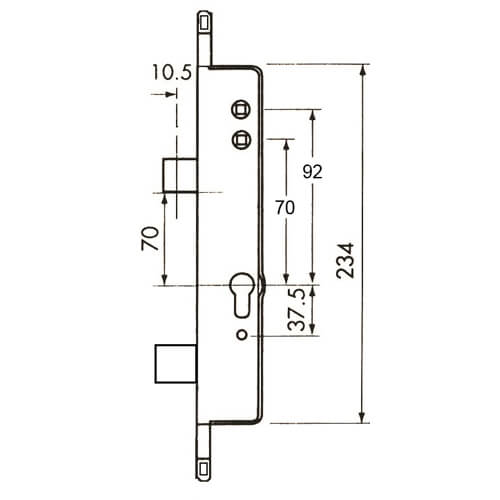

- Backset: 35mm
- Centres PZ:92mm/70mm
- Case Height: 234mm
- Case Width: 52mm
- Copy/Genuine: Copy
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & deadbolt
- Spindle: Double 8mm
- Operation: Lift Lever or Double Spindle Nightlatch
- Packaging: Supplied in singles
