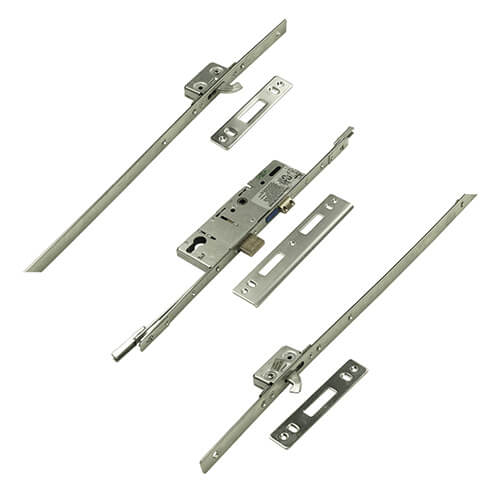

ERA 6345 2 Hooks Timber and Composite Repair Multipoint Door Lock
This ERA lock is designed for remedial work on timber and composite doors and features 2 hooks.
Features a 20mm faceplate and 45mm backset. It uses twin high security hooks for anti separation resistance with a non handed keep set.
Comes with a 3 piece lock and keep set, fixing screws pack and a set of packers.
Operation: Lift lever or split spindle nightlatch operation.
Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screw.
Nightlatch reversal: Remove latch to reveal a small screw. Use a small bladed screw driver to turn the screw 180 degrees then return latch to correct position.
£105.78

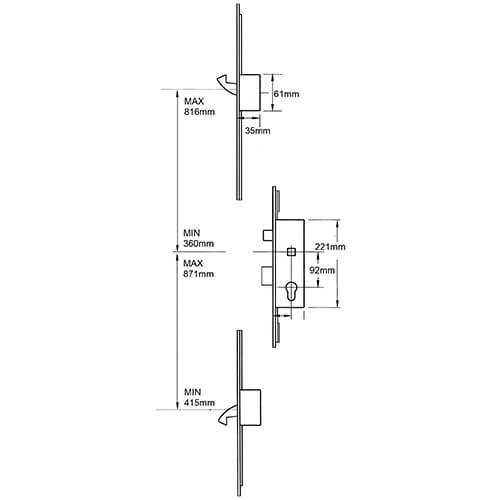

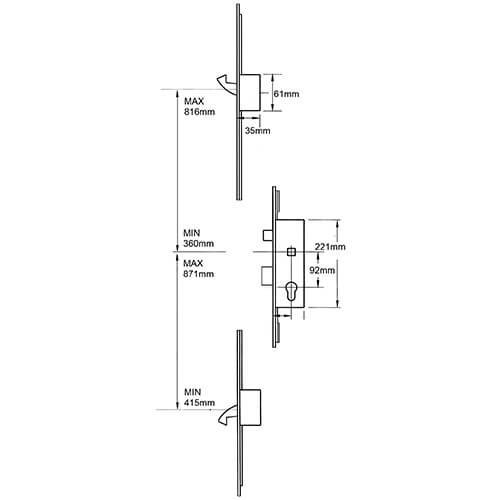

- Centres 92mm
- Case Height 221mm
- Case Depth Backset + 18mm
- Overall Length: 1960mm
- Minimum Length: 1040mm
- Maximum top hook to spindle: 816mm
- Minimum top hook to spindle: 360mm
- Maximum bottom hook to spindle: 871mm
- Minimum bottom hook to spindle: 415mm
