ERA 817 UPVC Sash Jammer Lock Only
Non locking face fixing sash blocker with separate locking attachment.
- Arm swings across to prevent window from opening
- Length: 75mm
- Width: 20mm

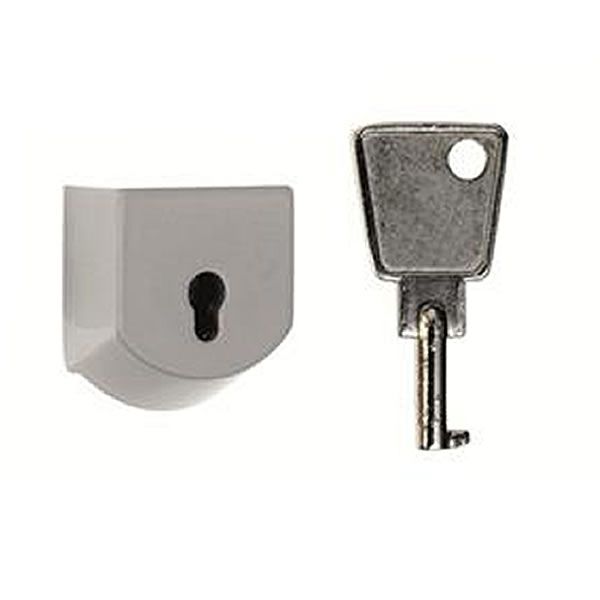

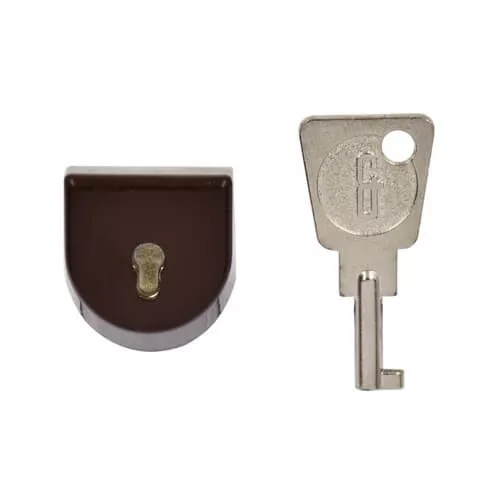

- Available with separate locking unit to convert the sash jammer to a locking device (817W and 817B)
- Supplied with fixings
- Supplied in singles
- Outer boxes of 10
£3.71
