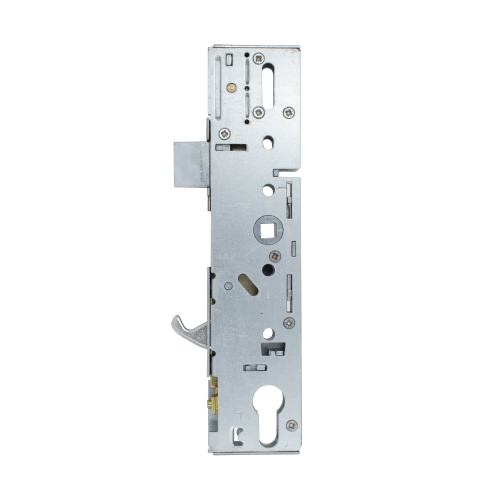

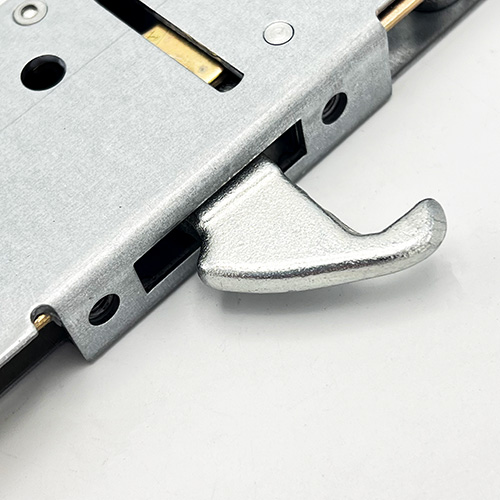

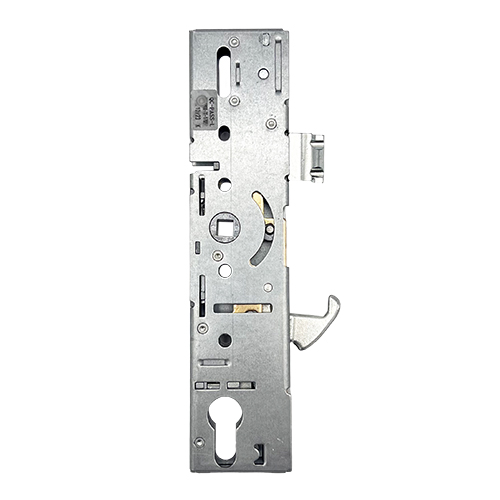

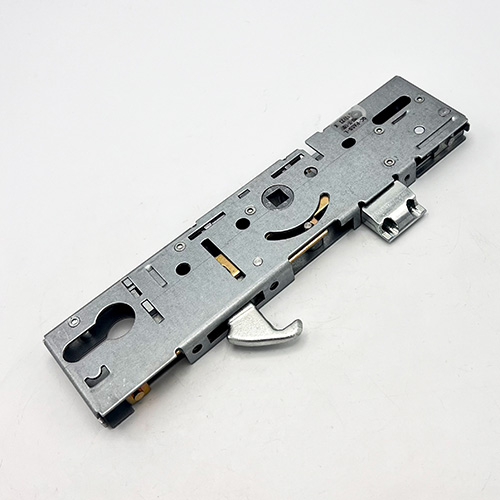

ERA Bi Fold 35/92 Latch Hook Lockcase for Warmcore Liniar Doors
ERA Genuine Gearbox Hookbolt Version to suit Warmcore and Liniar Bi-Fold Doors.
Operation: Lift lever or split spindle
Latch reversal: Undo the screws in the latch to remove. Reverse and reinsert then replace screws.
Nightlatch split spindle reversal: Remove latch to reveal a small screw. Use a small bladed screw driver to turn the screw 180 degrees then return latch to correct position.
£29.11
-
Case Height: 220mm
-
Case Width: Backset + 20mm
-
Centres: 92mm
-
Handle Screw Centres: 43mm
-
Latch Throw: 17mm
-
Backset: 35mm
-

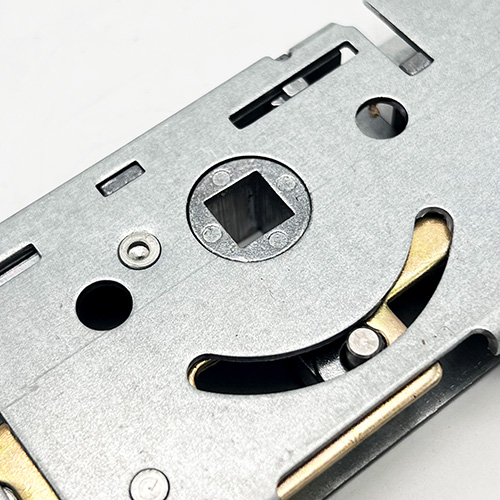

Spindle: Split 8mm
