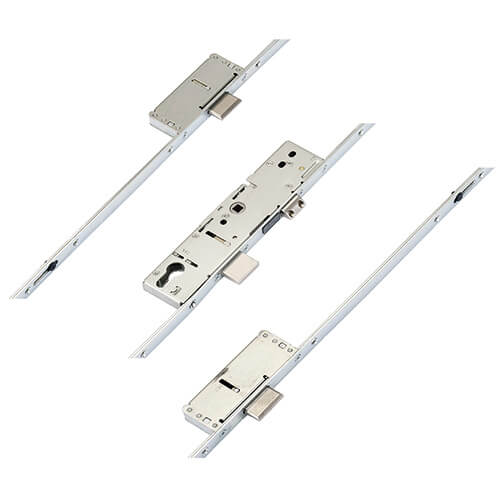

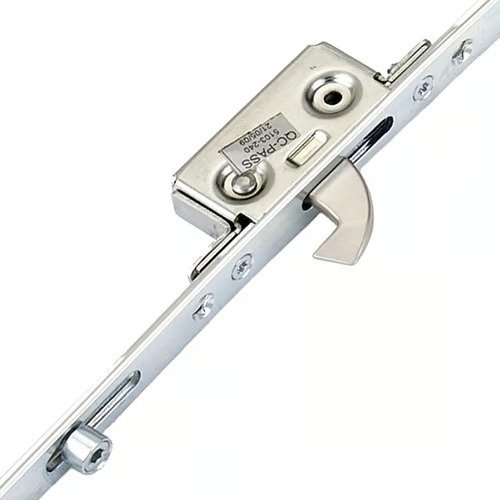

ERA Latch Deadbolt 2 Hooks 2 Rollers Split Spindle Multipoint Door Lock – Option 1

£60.83 – £130.47

+ Free Shipping

ERA locks may also be stamped Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward or Cego.

Originally designed to replace GU, Lockmaster and Winkhaus locks without the need for new routing positions these locks are available in 2 options.

Backset: 28mm 30mm 35mm and 45mm.

Centres: 92mm.

Operation: Lift lever or split spindle nightlatch

SKU: N/A Categories: , ,
Guaranteed Safe Checkout
  • Manufacturer: ERA
  • Backset: Select from drop-down
  • Centres PZ: 92mm
  • Faceplate: Select from drop-down
  • Spindle Size: 8mm

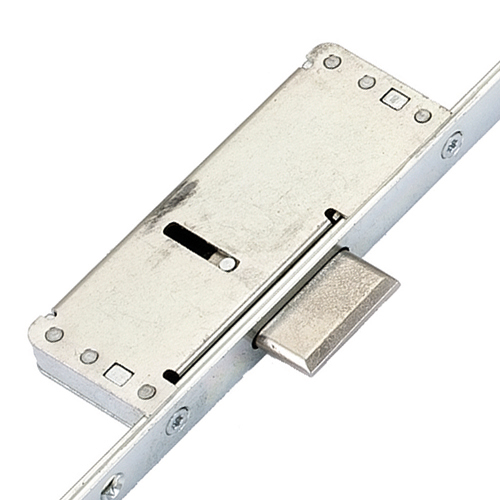

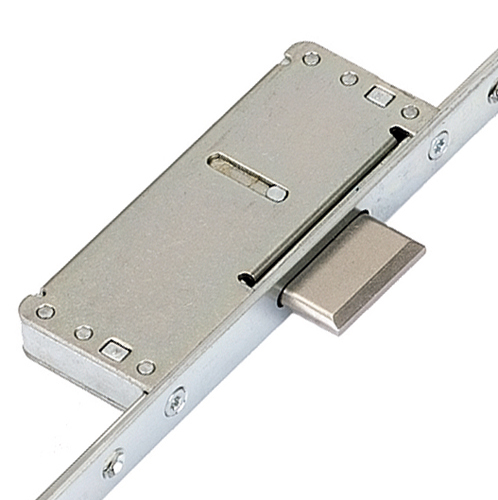

  • Rollers: 2

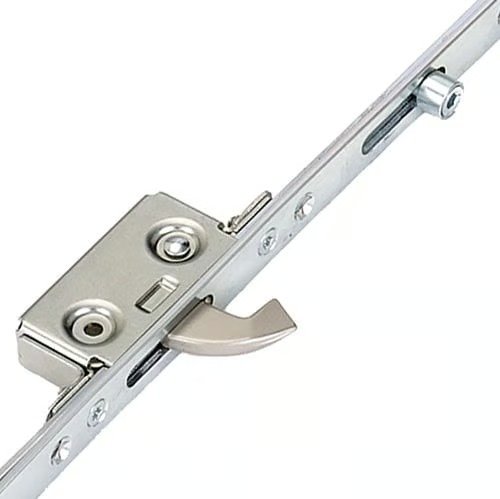

  • Hooks: 2

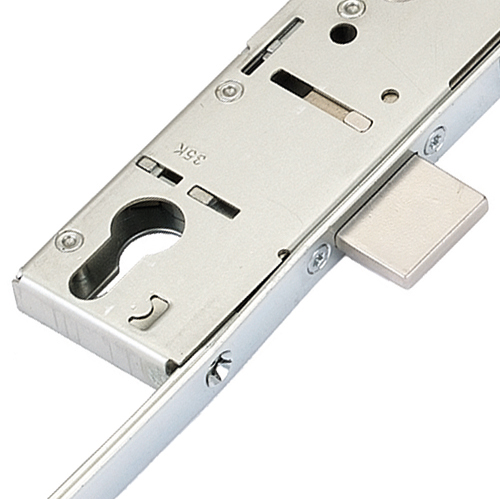

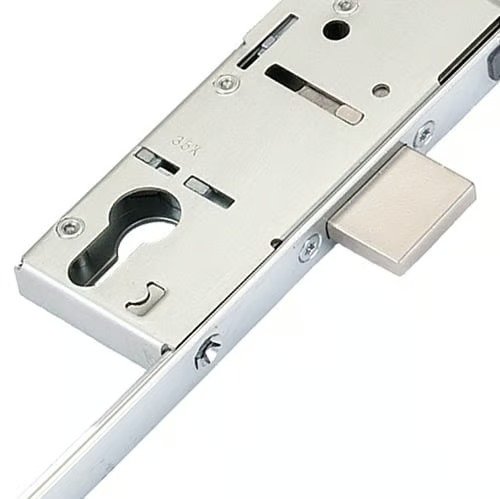

  • Deadbolts: 1

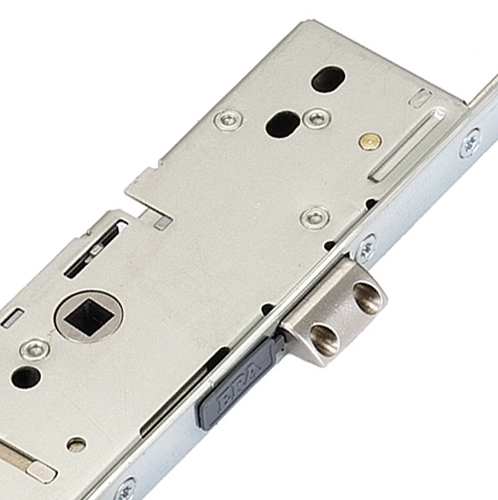

  • Latch: 1
  • Main Gearbox: Latch & deadbolt
  • Operation: Select from drop-down
  • Spindle: Split 8mm
  • Handing: Non handed

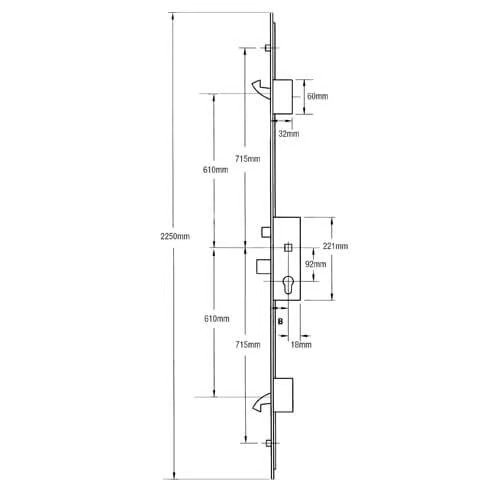

  • Distance Between Inner Locking: 1220mm
  • Distance Between Outer Locking: 1430mm
  • Height: 2250mm
  • Top Hook to Spindle: 610mm
  • Bottom Hook to Spindle: 610mm
  • Top Roller to Spindle: 715mm
  • Bottom Roller to Spindle: 715mm
  • Door Material: UPVC, Aluminium

Latch reversal: Undo the screws in the latch to remove. Reverse, reinsert and replace screws.

Backset

30mm, 35mm, 45mm
