- Manufacturer: ERA
- Backset: Select from drop-down

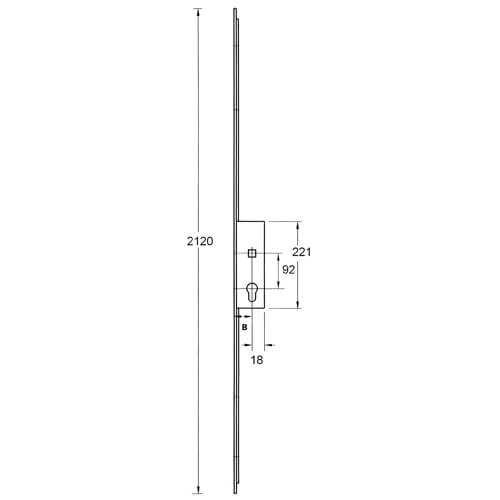

- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Main Gearbox: Passive lock
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Non handed
- Height: 2120mm
- Door Material: UPVC, Aluminium
To lock the door
1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.
We stock a range of associated products for ERA Passive multipoint door locks, including keeps, spindles, handles and accessories.
You may find this lock used as an UPVC door lock or an aluminium door lock.
