ERA Passive Lock Lift Lever Multipoint Door Lock – Interlocking Composite Door Version

£70.90

+ Free Shipping

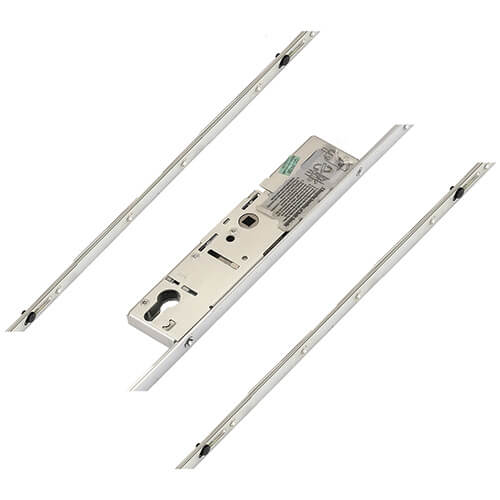

This ERA Passive multipoint door lock features no locking points and is suitable for the passive door on a pair of French doors.

This passive lock accepts the deadbolt from the ERA 7145 to create a locking solution for a pair of french doors.

Passive locks are fitted to the secondary (or passive) door on a pair of French doors. They are used in conjunction with the primary lock, which is a normal multipoint door lock, fitted to the main door. Locking is achieved by shootbolts which secure the secondary door leaf to the frame when the door is locked.

SKU: N/A Categories: , ,
Guaranteed Safe Checkout
  • Manufacturer: ERA
  • Backset: Select from drop-down

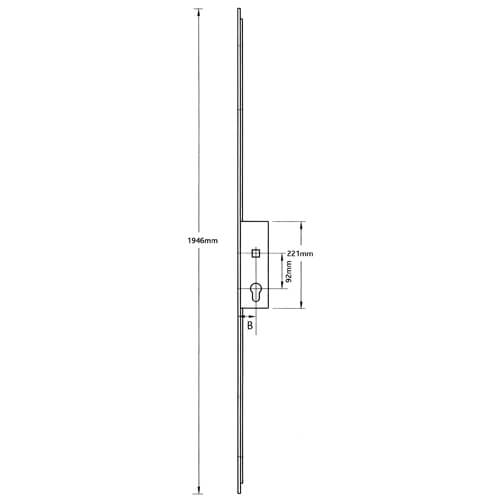

  • Centres PZ: 92mm
  • Faceplate: Select from drop-down
  • Spindle Size: 8mm

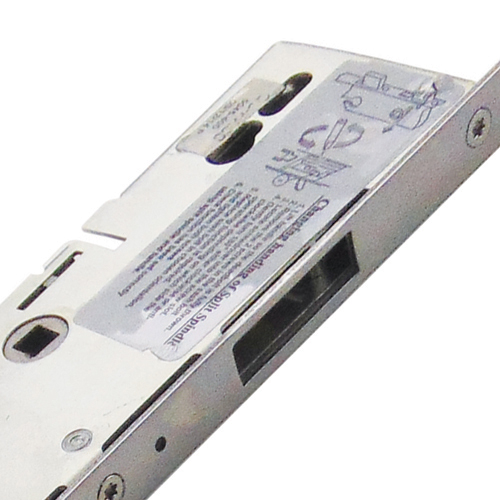

  • Main Gearbox: Passive lock
  • Operation: Select from drop-down
  • Spindle: Single 8mm
  • Handing: Non handed
  • Height: 2120mm
  • Door Material: Timber, Composite

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for ERA Passive multipoint door locks, including keeps, spindles, handles and accessories.

Latch Reversal: Not applicable as this passive door lock is unhanded and does not feature a latch.

You may find this lock used as a timber door lock or a composite door lock.

Backset

45mm
Faceplate

Flat 16mm – Square Ends
Operation

Lift Lever
