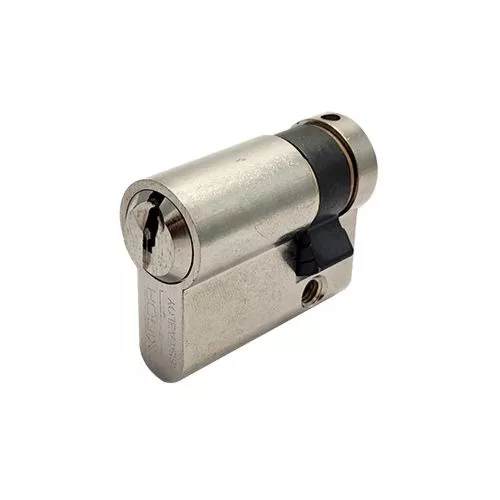

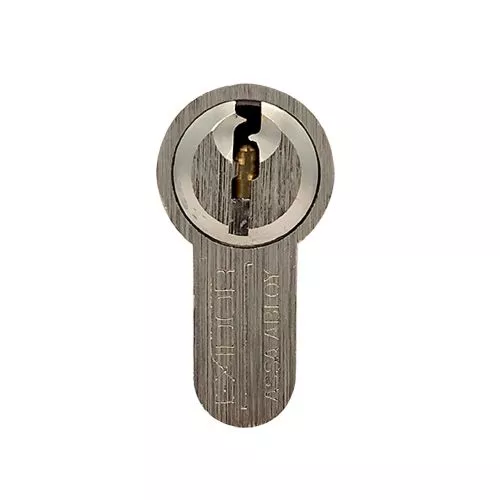

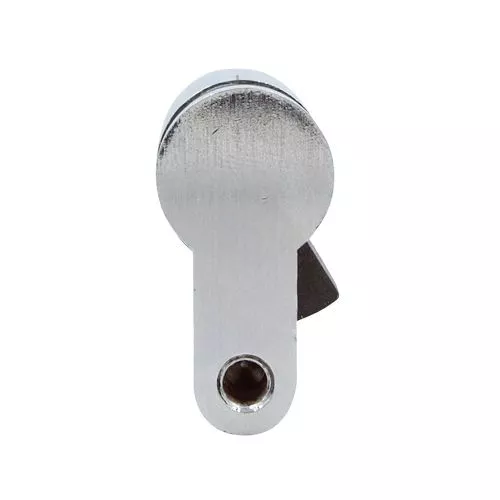

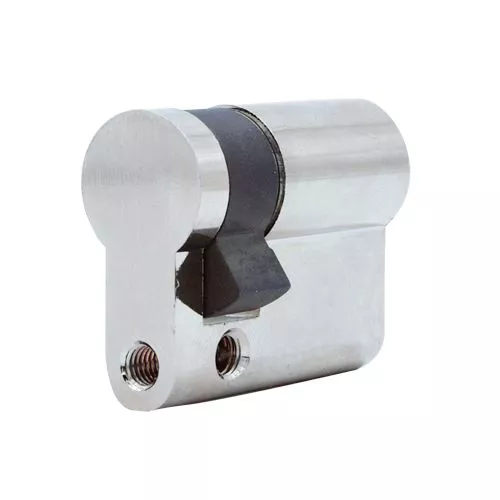

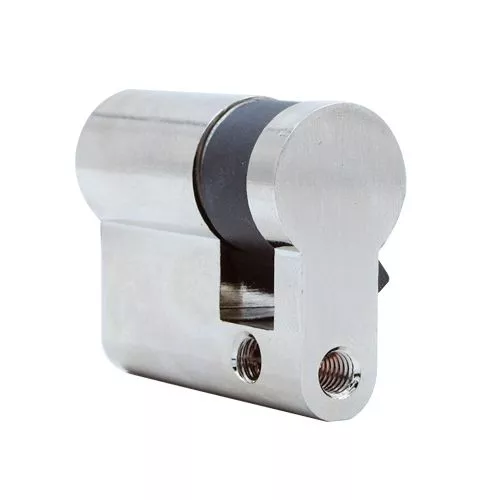

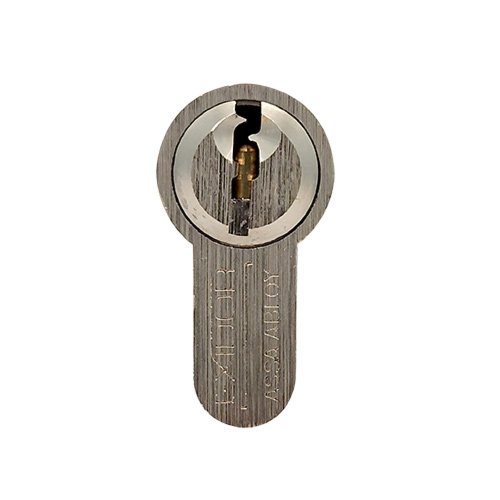

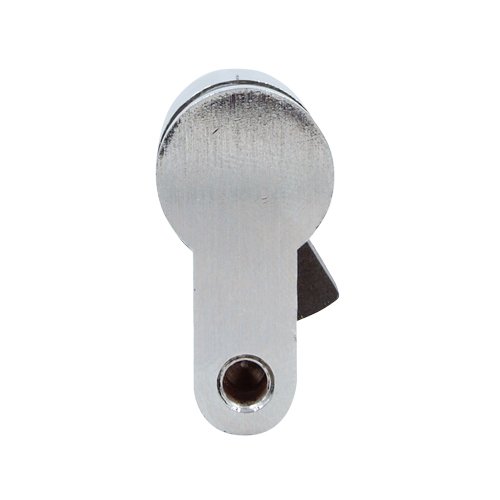

Exidor Euro Single Cylinder (Screw in back) Outside Access
Exidor Outside Access Half Euro Single Cylinder (Screw in back). This Exidor outside access half euro single cylinder is for use with outside access panic hardware devices.
Boxed singularly and in x10 in an outer.
- Pins: 5

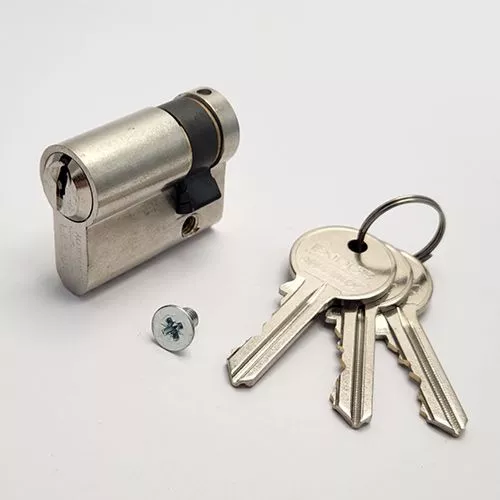

- No of keys: 3
£31.33
Related products
-
Door Locks, Multipoint, Multipoint & UPVC
Avocet Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top roller to spindle = 675mm) – Shootbolt Compatible
Quick View
Door Locks, Multipoint, Multipoint & UPVCAvocet Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top roller to spindle = 675mm) – Shootbolt Compatible
This Avocet multipoint door lock features 2 Rollers, 2 Hooks, 1 Deadbolt & 1 Latch.
The original Avocet 2 hook, 2 roller lock features unique locking positions.
Often known as the silver version and shouldnt be confused with the yellow AVO352HB which has different roller positions.
Avocet multipoint door locks are easily identifiable once they are removed from the door. Faceplates are usually stamped with the Avocet logo, although older locks may have the “WMS” logo stamped. Gearboxes are uniquely shaped, with the cut out extending below the latch, which is unique when identifying multipoint locks.
Avocet multipoint door locks were originally available in a wide range of different configurations featuring hooks, rollers, deadbolts and an Affinity Bastion lock with opposing hooks. Earlier versions of Avocet multipoint locks were made in yellow passivated steel, which have a distinctive brassy colour. Recently, the locks have changed with faceplates made from a stainless steel or a Trivalent silver finish.
When these locks swapped from yellow passivated to silver, the majority of variations were replaced. Notable exceptions include the 2 roller and 2 mushroom lock as well as the shorter version of the 3 deadbolt lock designed for use on caravans. Please contact us if you would like assistance finding the best replacements for these locks.
Also, it’s worth noting some Avocet multipoint door locks feature a “sash lifter” device. This device was designed to help ensure the correct sash to frame alignment but these are no longer available so we would recommend replacing these locks with the standard version.
Most Avocet locks are only available in a 35mm backset, but the Affinity Bastion lock is designed for composite doors and feature a 45mm backset.
Although some original Avocet multipoint 4 roller door locks feature a single spindle and lift lever functionality, all current locks are only available in a double spindle nightlatch configuration. The centres are at 62mm and 92mm, but if the nightlatch functionality is not required, the lock can still be used as a lift lever version using the top spindle.
All Avocet locks which are designed for PVCu with a flat 16mm faceplate have the ability to accept shootbolts.
Avocet gearboxes measure 218mm high x backset + 15mm. It’s the large cut out in the top corner, that extends below the latch which makes them unique. This feature can assist with the fitment of handles as the screws are located above the lever.
Avocet gearboxes feature a latch that is 29mm high and a deadbolt that is 34mm high with a distance of 82mm between the top of the deadbolt and the bottom of the latch.
These gearboxes are not attached to the strip using conventional screws or rivets. Instead, the gearboxes are held by arms which connect using circlips. While it’s possible to remove a gearbox from a full Avocet lock, we would advise replacing the full unit. Also, it’s worth noting the design of the arms have changed over time and older gearboxes have a flat clip. Newer versions have a slightly curved connecting arm located lower down making gearbox swaps with newer for older versions impossible.
When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.
Avocet hooks throw in opposing directions, with the top hook going upwards, and the bottom hook throwing downwards. Hook boxes are 123mm high and doors that are normally prepared to 150mm will accept the hook case.
Avocet deadbolts feature a 20mm throw made from nickel plated brass. The deadbolt gearboxes feature a distinctive chamfered design, in contrast to the square design of Avocet hook cases.
Rollers are manufactured from nickel plated brass. They are used for compression, to pull the door against the frame, to help prevent dust or water ingress. They do little for security, but they also have the added benefit of helping to prevent the door from becoming warped as it is supported across its full height. This is dependent on the rollers being engaged into their keeps.
Operation:Â Double Spindle
To lock the door
1. On closing the door, the latch is automatically engaged.
2. Lift the handle up to engage the locking points.
3. Lock the system by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points.
3. A further quarter turn of the key will retract the latch.
- Corrosion resistance: BSEN1670:2007 Grade 4
- Tested to 100,000 cycles.
We stock a range of associated products for Avocet multipoint door locks, including keeps, spindles, handles and accessories.
Latch Reversal:Â Depending on date of manufacture either – Undo hexagonal screw on side of lock case to remove latch. Reverse, reinsert and replace screw. Or undo screw in centre of latch, reverse, reinsert and replace screw.
You may find this lock used as an UPVC door lock or an aluminium door lock.
SKU: AVO352H2RSS -
Door Locks, Multipoint, Multipoint & UPVC
Winkhaus Cobra Latch Deadbolt 2 Hooks Multipoint Door Lock – 16mm Faceplate
Quick View
Door Locks, Multipoint, Multipoint & UPVCWinkhaus Cobra Latch Deadbolt 2 Hooks Multipoint Door Lock – 16mm Faceplate
This Winkhaus Cobra multipoint door lock features 2 Hooks, 1 Deadbolt & 1 Latch.
The Winkhaus Cobra is the original Winkhaus multipoint lock, featuring a central latch and deadbolt and2 or more “Cobra” hook locking points. Cobra multipoint locks are available with lift lever operation, split spindle or key wind.
Winkhaus Cobra locks are characterised by their central latch and deadbolt. They will also feature either 2 or 4 hooks as the additional locking points. While available as a 4 roller lock, Winkhaus Cobra locks are not normally available as a hook and roller combination lock. That function is left to the Scorpion range.
Cobra locks often feature locking distances of 1490mm between the external hooks. This distance has become very popular in the market, with numerous manufacturers adopting this configuration.
It is also worth noting that Winkhaus Trulocks feature the same gearbox as a Cobra, but with slightly different hooks. Cobra locks are non handed, whereas Trulocks are handed.
The quickest way to identify the product, before removing it from the door, is to check the faceplate. You’ll spot a Winkhaus logo and, often, a Secured by Design logo. The Cobra version will be identified by the central deadbolt and non handed hooks.
Winkhaus Cobra locks are unique as they are available with various different locking features. These include an Entryguard function which is a guard bar that operates in a similar way to a door chain. Its more secure and it can be released from the outside by the key holder if they turn the key an additional 45 degrees.
Another option is a The Euro Half lockout cylinder double function incorporates two locking cylinders. A central double or thumb turn cylinder plus an additional half cylinder in the FA housing on the external side of the door. When the dwelling is unoccupied both cylinders can be locked with the same key (talk to us about our keying alike service) thus double deadlocking the door. This prevents any intruder who may have entered the property elsewhere, exiting the property by operating the internal thumb turn and unlocking the door (deadlocking the half cylinder on the outside overrides the internal lock operation).
Usefully, all Winkhaus locks feature the same routing details. Therefore, if you wish to change the locking operation, or upgrade to automatic locking, its a straightforward process. New keeps and handles may be required.
All Winkhaus gearboxes, apart from the AV4 measure 185mm high x backset + 15mm, making them the smallest gearboxes on the market. They measure 64mm between the latch and deadbolt and 63mm from the spindle to the top of the gearbox. They also feature a groove above the spindle to aid in the fitment of handles with a screw above the lever.
Winkhaus Cobra locks always feature a latch and deadbolt in the gearbox. They are available in lift lever, split spindle and key wind operation. These are easily identifiable by the sticker on the side of the gearbox. If the writing is blue, This is lift lever, if its green, then the lock is split spindle, whereas red means key wind. We often will only stock the green, split spindle locks, where both a lift lever and split spindle version are available. This is because the split spindle can be used as a lever operated lock by inserting a solid spindle all the way through the follower. There’s also no price difference between the locks, so the added versatility of the split spindle lock makes it a suitable replacement for a larger range of locks.
Winkhaus gearboxes are attached to the faceplate with a set of rivets. These can be easily removed and replaced for gearbox swaps but makes Winkhaus relatively unique (and therefore easier to identify) in the market. Please refer to our guide and video on how to replace a Winkhaus gearbox for full details.
Please note that you may have encountered a really old Winkhaus gearbox that is attached to the faceplate with screws, with a passivated yellow finish. The sticker on the side (red = key wind and blue = lift lever) will denote the operation of the lock. These locks were handed and are no longer available.
Winkhaus Cobra locks feature 25mm throw solid steel Cobra hooks. These high security solid forged steel and nickel plated hooks that fully engage the keep rail and help prevent forcing the sash and frame apart.
Cobra hooks throw downwards, as opposed to Scorpion locks which can throw downwards or bi directional. Cobra hook cases measure 113mm high by 45mm wide.
Operation:Â Split Spindle
To lock the door
1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.
- Secured by Design
- Tested to 100,000 cycles
We stock a range of associated products for Winkhaus Cobra multipoint door locks, including keeps, spindles, handles and accessories.
You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
SKU: n/a -
Door Locks, Multipoint, Multipoint & UPVC
Avantis Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 640mm)
Quick View
Door Locks, Multipoint, Multipoint & UPVCAvantis Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 640mm)
This Avantis multipoint door lock features 2 Rollers, 2 Hooks, 1 Deadbolt & 1 Latch.
The Avantis 650 Series Residential lock is easily recognised by it’s unique latch and deadbolt configuration.
Avantis locks have the largest hooks on the market at 25mm.
This is the standard version but a narrow locking position version is also available.
Avantis multipoint door locks are one of the easiest locks to identify before you have removed it from the door. They feature an unusual configuration where the deadbolt sits above the latch.
Avantis locks are specifically designed for the UK residential door market. They feature a 25mm throw and a direct drive deadbolt in the main gearbox whereas most gearbox deadbolts from other manufacturers only throw 20mm. The Avantis deadbolt also features 5 grooves and is chamfered for improved compression.
Also, 16mm faceplate locks are compatible with shootbolts.
Established in 2006, Avantis is a relatively new multipoint lock manufacturer, so demand for repairs and replacements is beginning to grow. The business was established by the former CEO of Millenco, so while the brand is new, there is plenty of expertise available in the UK market.
Avantis gearboxes are unique in the market, featuring a distinctive grooved deadbolt sitting above the latch. The deadbolt measures 30mm high and extends 25mm when thrown. The distance from the bottom of the deadbolt to the top of the latch is 60mm and the latch is 24mm high.
These gearboxes are available as a double spindle with centres at 92mm and 62mm. Therefore, they can be used with a double spindle nightlatch functionality (often used on front doors) or as a standard lift lever, using the top spindle only (commonly used on back doors). The spindles feature a unique cross shape but they also accept a normal 8mm spindle.
Gearboxes measure 220mm high x backset +15mm. Be sure to allow for 2mm when measuring the backset on a lock that already has the faceplate fitted.
Gearboxes are fixed to the faceplate using 4 screws. One is above the deadbolt, with 2 screws between the latch and deadbolt and the last screw is located below the latch. They measure 47mm from the top to the 2nd screw hole, 40mm from the 2nd to 3rd and 42mm from the 3rd to 4th screw hole.
Avantis are proud to state their hooks are the largest on the UK market and provide the highest level of security. They are chamfered to ensure that the door is pulled to the frame, to enhance weather sealing. Also, hooks on Avantis locks throw in opposing directions.
Rollers are used for compression, to pull the door against the frame, to help prevent dust or water ingress. They do little for security, but they also have the added benefit of helping to prevent the door from becoming warped as it is supported across its full height. This is dependent on the rollers being engaged into their keeps.
Operation:Â Double Spindle
SKU: n/a
