Panic and Emergency Exit Hardware, Outside Access Devices

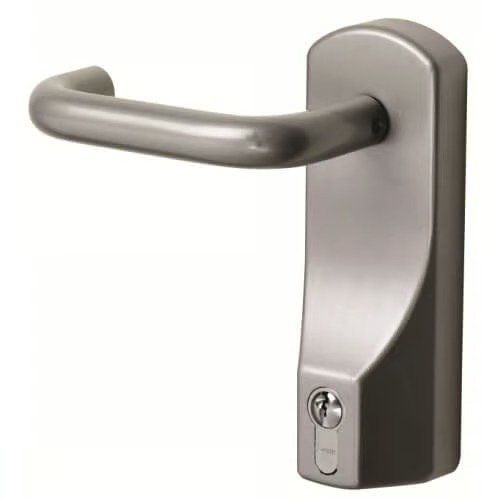

Exidor FD322 Outside Access Device – Lever Handle with Euro Cylinder – For Timber or Metal Doors

Name: Exidor FD322 Outside Access Device - Lever Handle with Euro Cylinder - For Timber or Metal Doors - Get Door Locks
SKU: FD322ES
Price: 139.73 GBP
Availability: InStock

Compare

Exidor 322 Outside Access Device for Timber or Metal doors. Lever version with euro cylinder. Operation: When locked ,the lever is disengaged from the mechanism and still pulls down therefore preventing unauthorised entry.

£139.73

Description
Specification

Exidor 322 Outside Access Device for Timber or Metal doors.

Lever version with euro cylinder.

Operation:

When locked ,the knob is disengaged from the mechanism and still spins therefore preventing unauthorised entry.

When unlocked, the knob, spindle and mechanism engage allowing the shoot bolts, latch or pullman latches to be withdrawn from outside of the door.

Once the door is opened from the inside or outside the knob remains unlocked until re-locked with a key – The unit is NOT self locking.

Height: 175mm.
Width: 60mm.
Projection: 88mm.

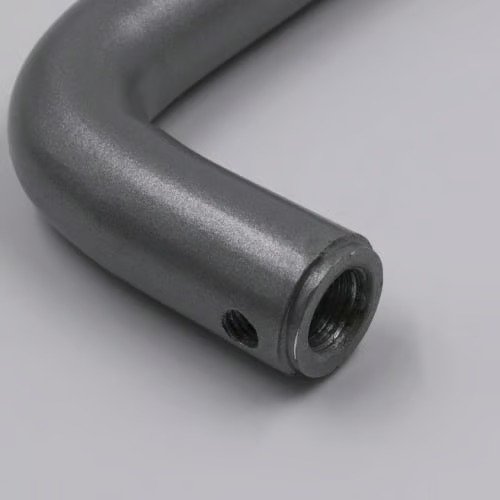

Lever Length: 135mm
Suits doors up to 55mm thick.

Supplied with a 3010 half euro cylinder with 3 keys, adjustable cam and rear entry retaining screw.
Suggested replacement cylinder code: FD302CYL (Non Restricted).
Can be incorporated into a masterkey system or keyed alike suite in-house.(the euro cylinder will require replacing).

Supplied with fixings to suit timber or metal doors.
Boxed.

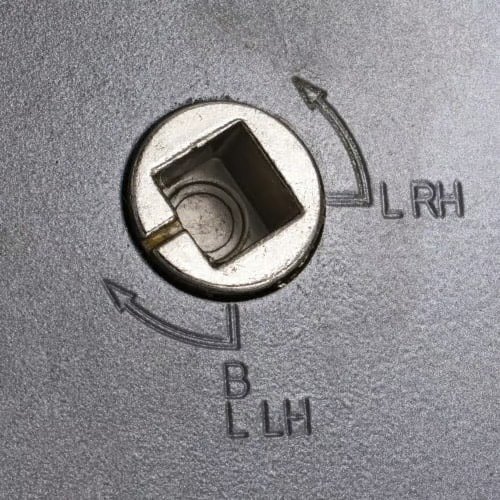

Non handed(Lever is reversible).
Surface mounted on the outside of the door using machine screws.

SKU: FD322ES Categories: Panic and Emergency Exit Hardware, Outside Access Devices Brand: Exidor

Colour	Silver, White
