Fab and Fix Haven 2D Hinge for Composite Doors

The Fab and Fix Haven 2D Hinge for Composite Doors are adjustable by 5mm horizontally and 1.5mm compression. 30kg sash weight per hinge. Suits both inward and outward opening doors.

• Manufacturer: Fab & Fix

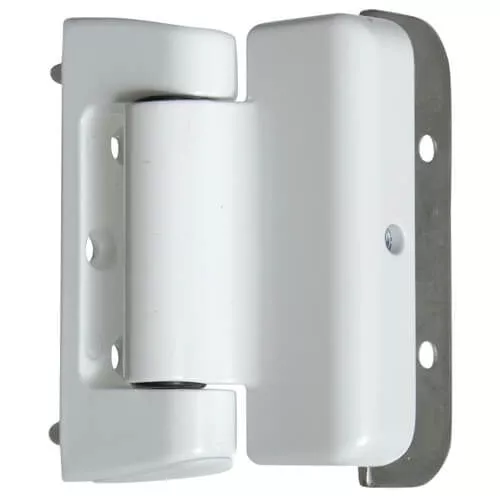

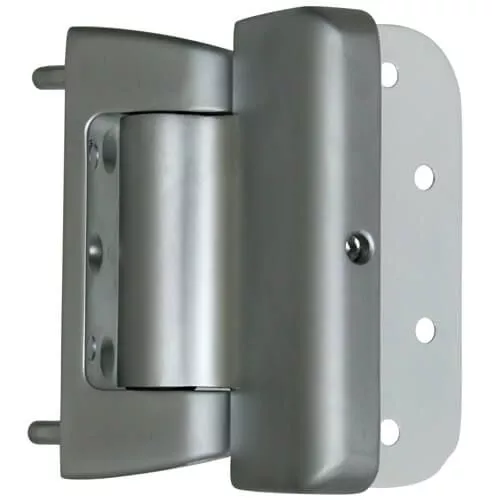

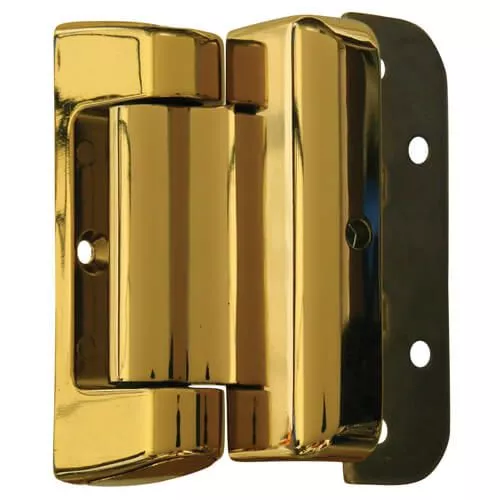

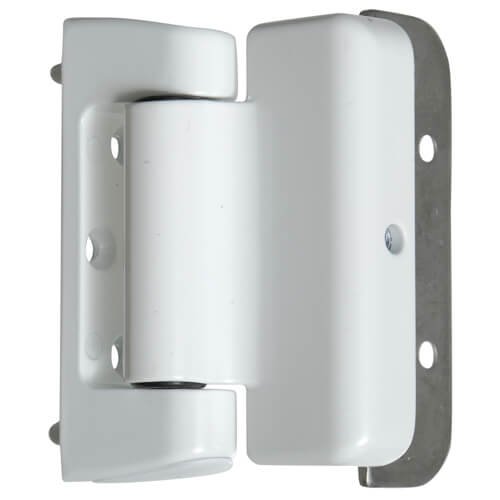

• Colour: White, Silver or Polished Gold

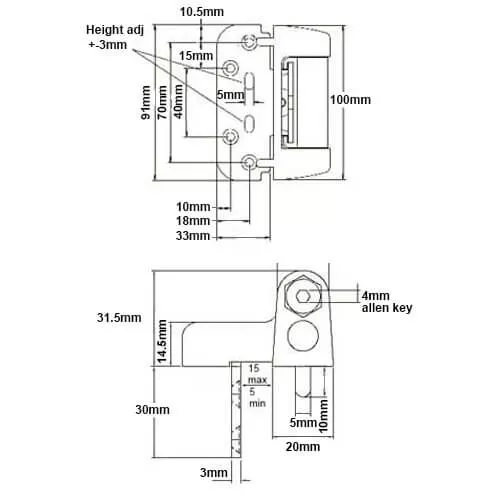

• Frame piece height: 100mm
• Frame piece width: 20mm
• Distance between pins: 70mm
• Sash piece height: 91mm
• Sash piece width: 33mm
• Sash weight per hinge: 30kg
• Sash weight for x3 hinges: 90kg
• 2D adjustable
• Compression adjustment: +/- 1mm
• Lateral adjustment: +/- 5mm
• Suitable for inward and outward opening doors
