Fab and Fix Haven Intelligent Strength Hinges for Composite or Timber (4R16 version)

The Fab & Fix Haven composite door hinge is specifically designed for timber and composite doors.

3 Hinges can support a maximum door sash weight of 90kg

• Manufacturer: Fab & Fix

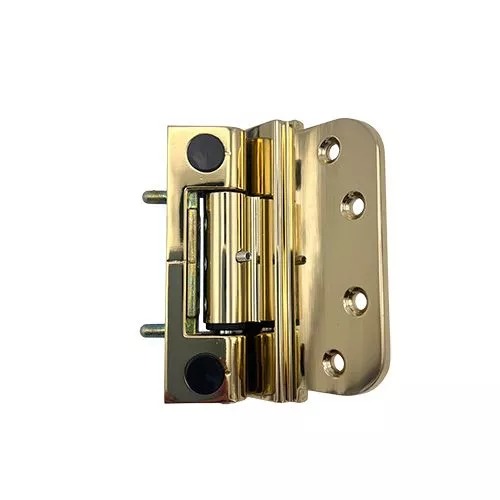

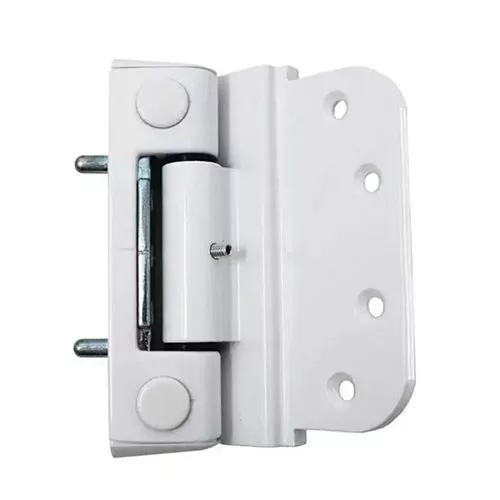

• Colour: White, Chrome or Polished Gold

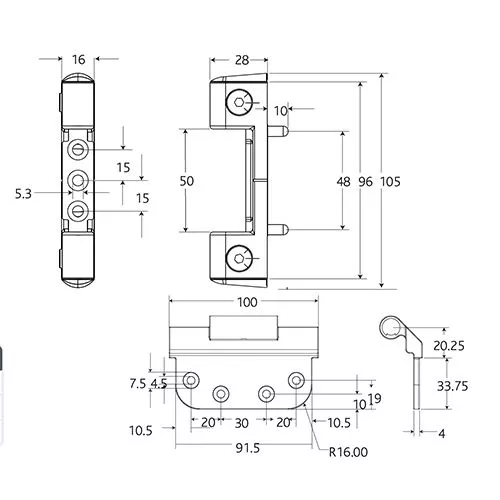

• Frame piece height: 105mm
• Frame piece width: 28mm
• Distance between pins: 48mm
• Sash piece height: 91.5mm
• Sash piece width: 33.7mm
• Sash piece thickness: 4mm
• Sash piece corner radius: 16mm
• Sash weight per hinge: 30kg
• Sash weight for x3 hinges: 90kg

. The sash part may be morticed in or surface fixed. This is the 4R16 version with a 4mm sash piece thickness and with 16mm radius corners.
