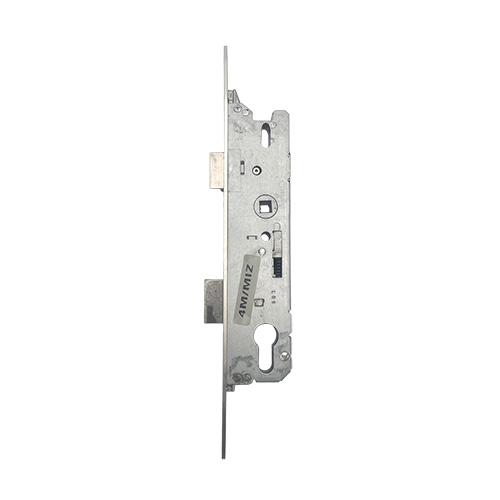

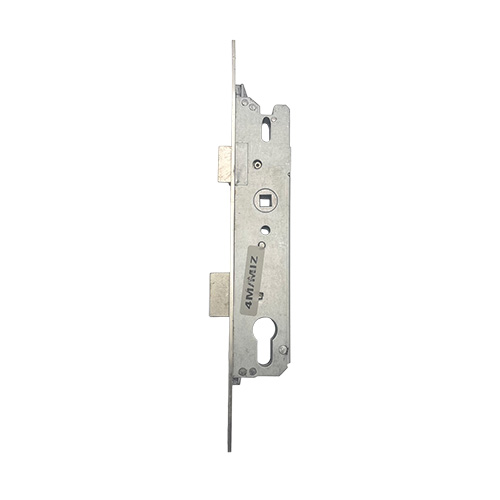

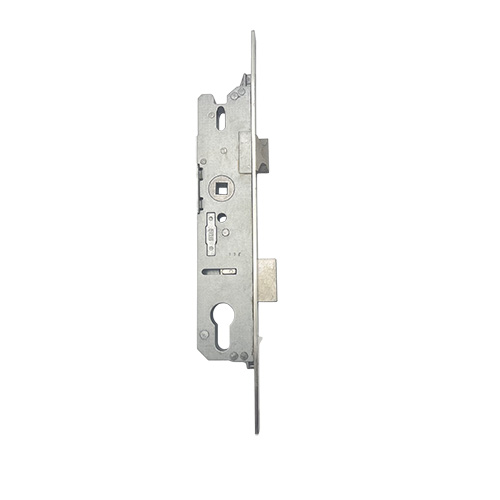

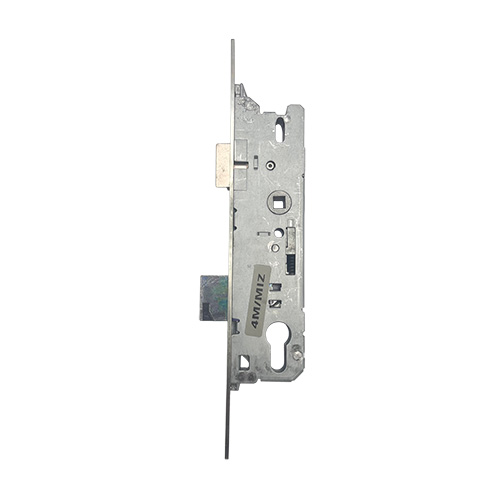

Fuhr Overnight Lock – Lever Down 16mm Faceplate
This Fuhr overnight lock secures properties overnight while the replacement multipoint lock is acquired.
Operation: Lever Down – Key or handle retracts latch and deadbolt – Note: Handle does not lift up
Latch reversal: Undo the screw in the side of the lock case adjacent to the latch. Remove the latch, reverse, reinsert and replace the screw.
Price range: £18.83 through £34.78
-

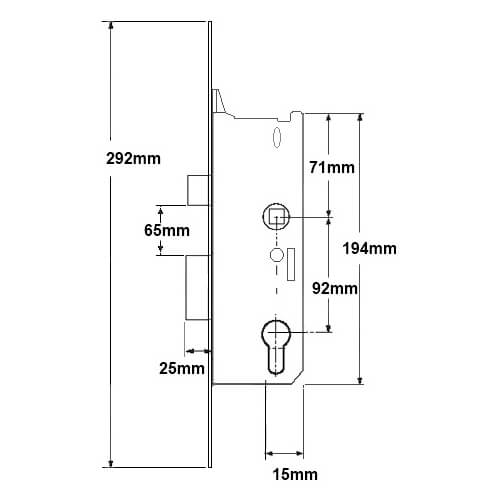

Faceplate: 292mm x 16mm
-
Case Height: 194mm
-
Case Width: Backset + 15mm
-
Centres: 92mm
-
Backset: 25mm, 30mm, 35mm or 45mm
-
Spindle: Single 8mm
-
Packaging: Supplied in singles
