Gege pExtra Plus Euro Single Cylinder
PLEASE BE AWARE THIS PRODUCT IS CURRENTLY UNAVAILABLE FOR PURCHASE ONLINE. TO ORDER PLEASE CALL US.
2 DAY LEAD TIME – IF REQUIRE THESE URGENTLY THEN PHONE US

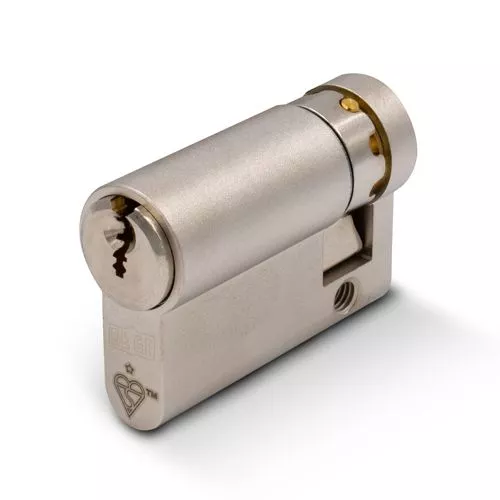

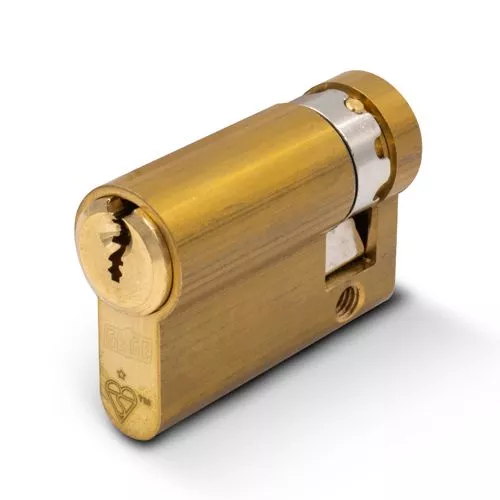

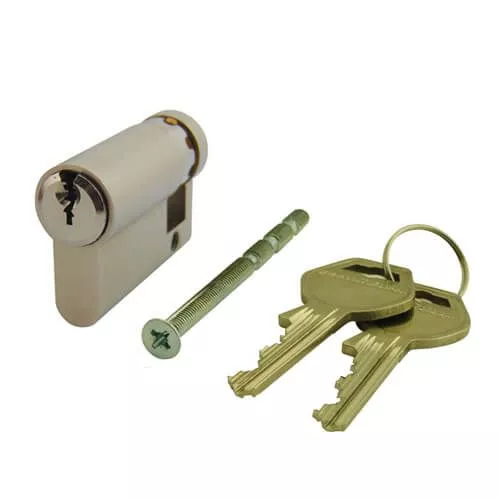

This is the pExtra Plus TS007 1* euro single cylinder and features a restricted profile. This has an adjustable cam as standard so can be fitted to euro body padlocks and panic hardware.
pExtra Plus offers a high level of security with a fully restricted profile, patented until 2032. Cylinders can be master keyed or keyed alike with euros, ovals, rims, screw-in, Scandinavian cylinders from the pExtra Plus range. They are also compatible with pExtra Guard 3* to achieve the ultimate level of security.
Every cylinder sold becomes registered to that customer and a key on that reference will not be sold without the consent of that same customer. Key blanks are not available for purchase, only cut keys. Enquire with us to ensure the British Standard kitemark is retained when keying alike and master keying.
Price range: £32.97 through £51.53
- Pins: 6
- No of Keys: 2
- Restricted Profile: Yes
- Anti Pick: Yes
- Anti Bump: Yes
- Anti Drill: Yes
- Anti Snap: No
- British Standard Kitemark: 1 Star
- Available Master keyed: Yes
- Available Keyed Alike: Yes
