Gege pExtra Plus Swedish External Cylinder
2 DAY LEAD TIME – IF REQUIRE URGENT THEN PHONE IN

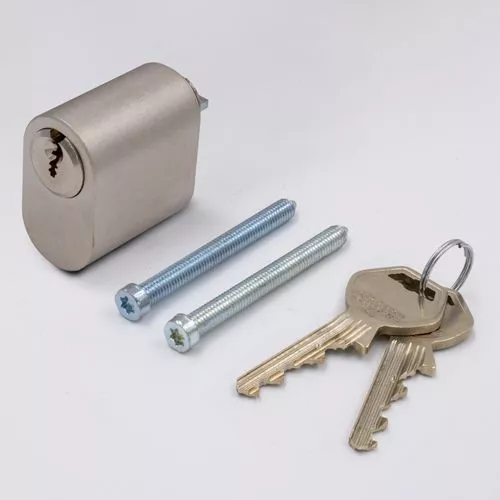

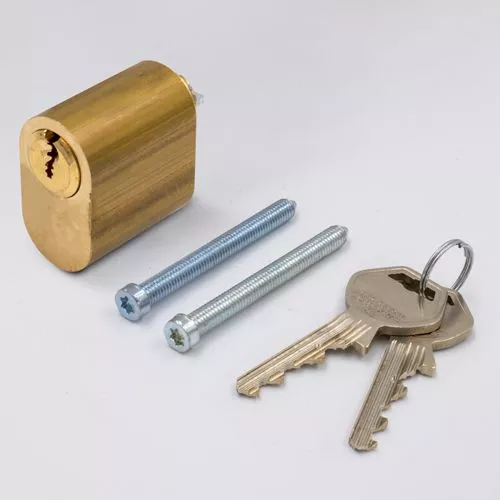

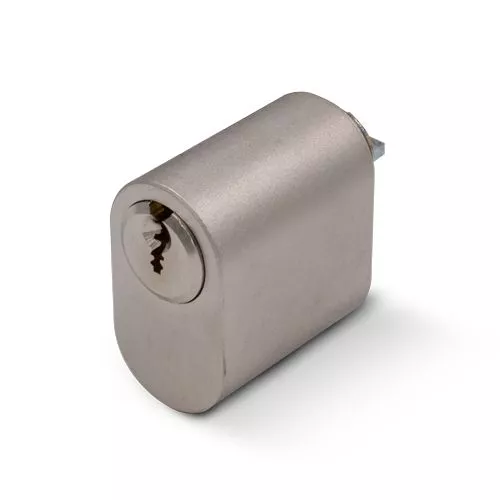

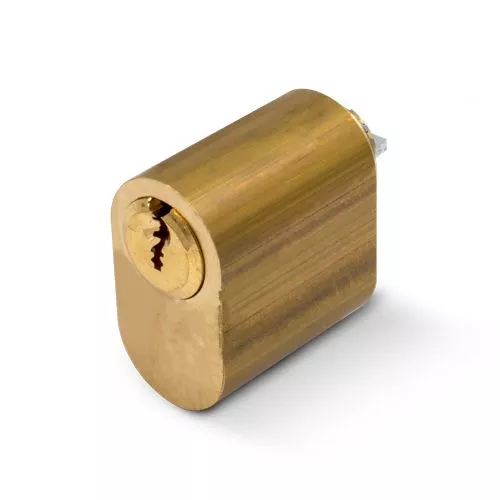

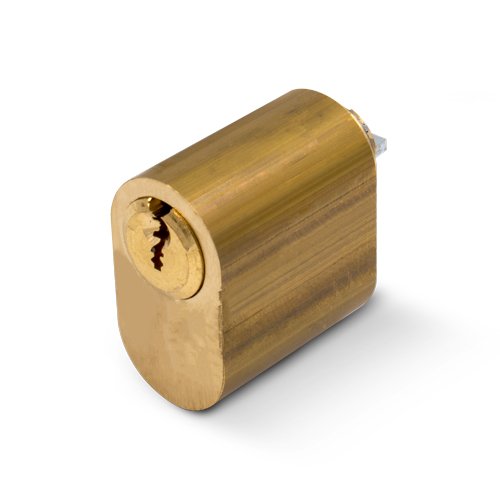

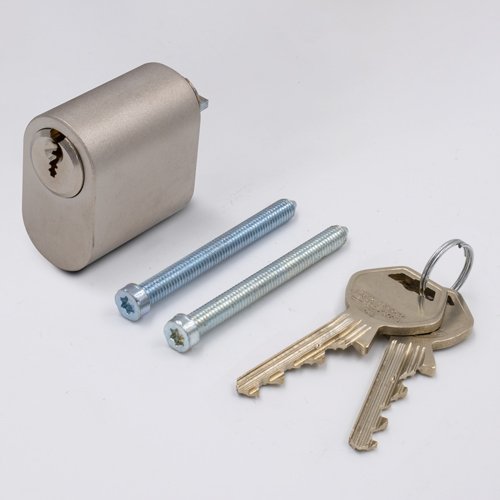

This is the pExtra Plus Scandinavian/Swedish external cylinder and features a restricted profile.
pExtra Plus offers a high level of security with a fully restricted profile, patented until 2032. Cylinders can be Master Keyed or Keyed Alike with Euros, Ovals, Rim, Screw-in and Scandinavian cylinders from the pExtra Plus range. They are also compatible with pExtra Guard TS007 3* to achieve the ultimate level of security.
Every cylinder sold becomes registered to that customer and a key on that reference will not be sold without the consent of that same customer. Key blanks are not available for purchase, only cut keys.
£43.56
- Pins: 6
- No of Keys: 2
- Restricted Profile: Yes
- Anti Pick: Yes
- Anti Bump: Yes
- Anti Drill: Yes
- Anti Snap: No
- British Standard Kitemark: No
- Available Master Keyed: Yes
- Available Keyed Alike: Yes
