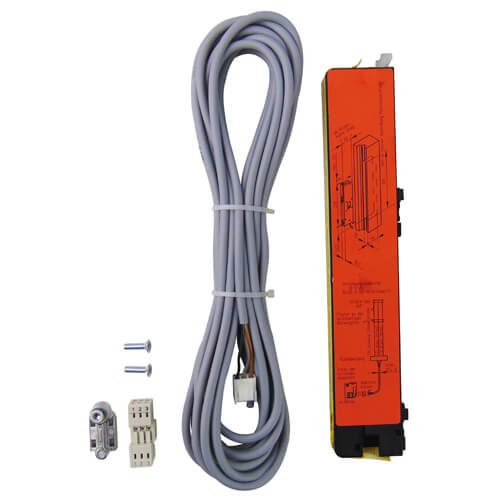

GU Motor Only To Suit 543580LOCK & 545580LOCK
GU motor only to suit GU automatic multipoint lock mechanisms such as 543580LOCK and 545580LOCK. This cost-effective unit is attached to the lock strip to convert it to an electronic locking device suitable for use with access control systems.
Working from a 12V AC or 12/24V stabilised DC supply, this motor will require 1 Amp to operate and we would suggest at least 2 Amps are available from the power supply.
The connecting cable is included with the motor unit, eliminating further costs.
*Please note, due to its nature this item is sealed with a tamper-evident security seal. Please confirm the item matches the description on the invoice, and is needed, before breaking this seal. Once this seal has been broken, or the item has been removed from its packaging, it is considered to be used cannot be returned unless it becomes faulty. Returns for faulty items will be handled in accordance with the relevant manufacturers’ returns procedures.
£165.13
- Power supply required: 12v AC or 12V DC or 24V DC
- Packaging: Supplied boxed
- Includes connecting cable
- Works with GU SECURY automatic multipoint locks
