- Manufacturer: GU
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Deadbolts: 3
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Non handed

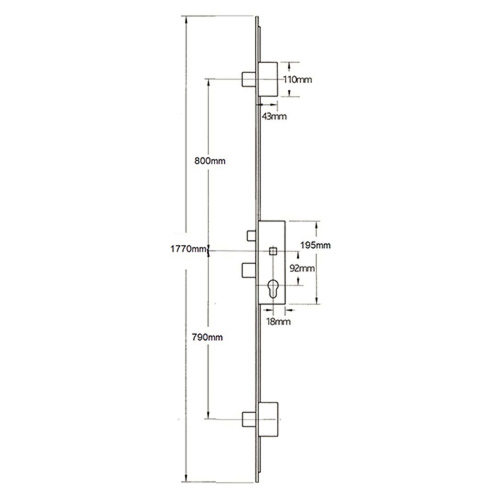

- Distance Between Inner Locking: 1590mm
- Height: 1770mm
- Top Deadbolt to Spindle: 800mm
- Bottom Deadbolt to Spindle: 790mm
- Door Material: UPVC, Aluminium, Timber, Composite
Operation: Automatic Locking
To lock the door
1. On closing the door, the latch and locking points are automatically engaged as the triggers on the door connect with the keeps on the frame.
2. Turn the key to deadlock the mechanism.
To unlock the door
1. Turn the key to unlock the mechanism.
2. If you have a lever, push the lever down to retract the locking points. Alternatively, a further quarter turn of the key will retract the latch to open the door.
We stock a range of associated products for GU Secury Automatic multipoint door locks, including keeps, spindles, handles and accessories.
You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
