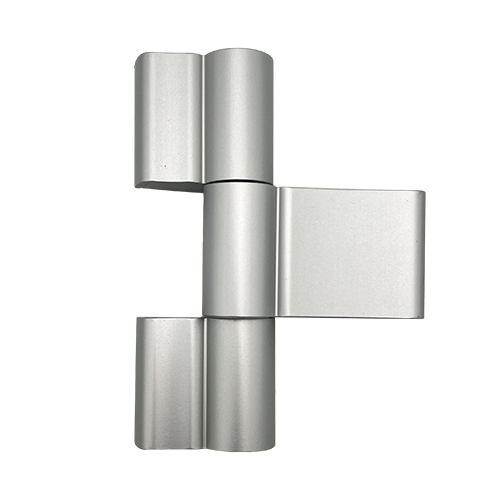

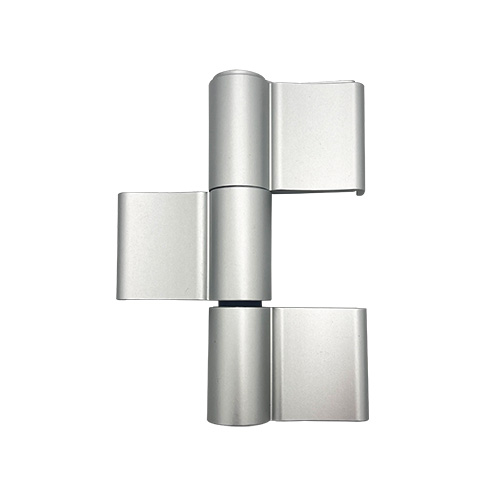

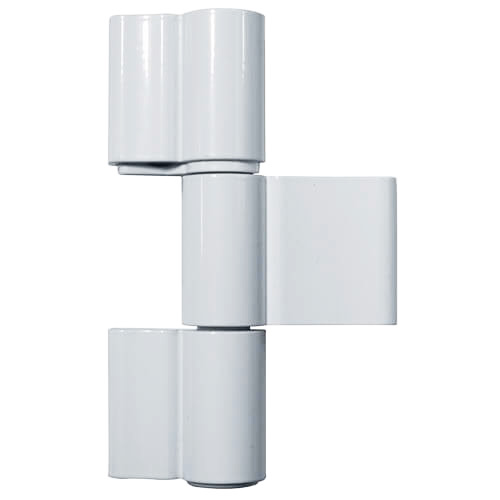

Haps A300 3D 3 Part Flag Hinge for UPVC Doors

For Aluminium doors up to 160kg.

Can be used as left or right hand hung.

3D adjustment with one tool when door is mounted.

Corrosion resistant axis pin as standard.

System designed to prevent tilting of the door leaf.

Bearing maintenance free through high quality plastic components.

Certified according to CE and SKG.

Increased burglary resistance for outward swinging doors through security pins (SKG).

Clippable cover caps

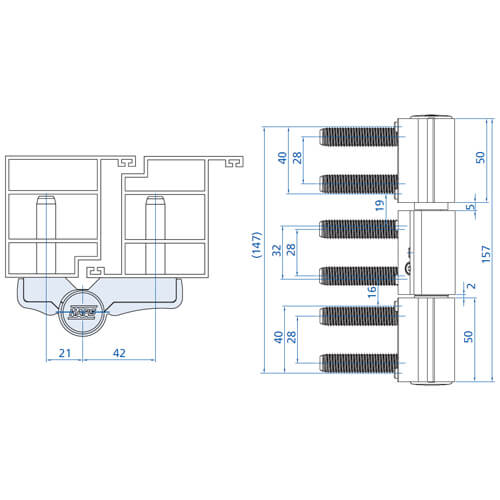

• Drilling distance: 63mm
• Height: 157mm
• Screw Centres: 1st to 2nd Bolt: 28mm
• Screw Centres: 3rd to 4th Bolt: 28mm
• Screw Centres: 5th to 6th bolt: 28mm
