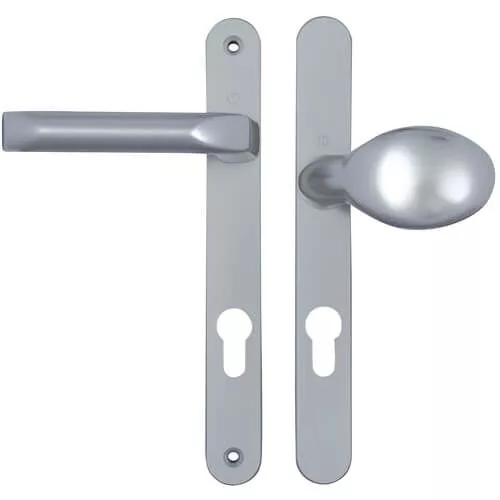

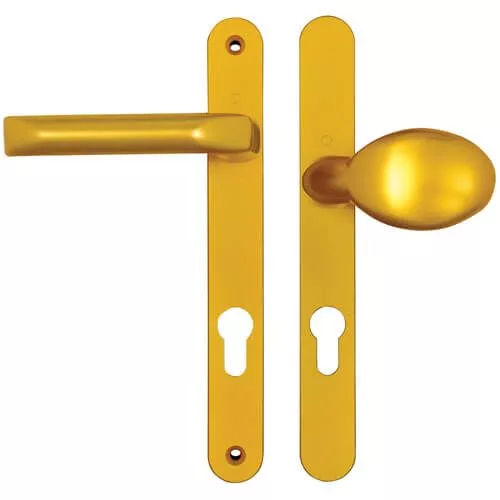

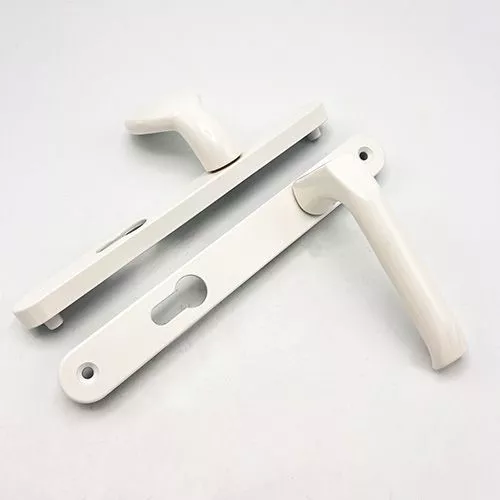

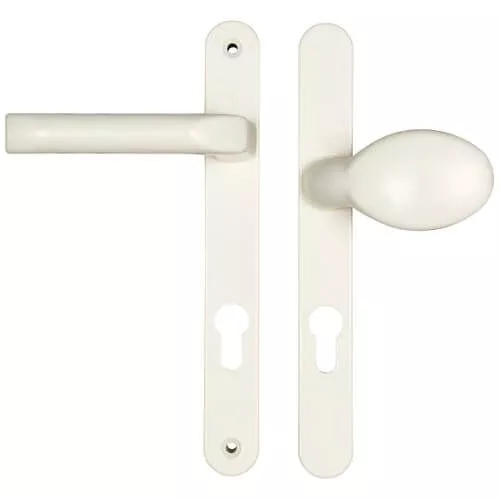

Hoppe Asgard Lever Moveable Pad UPVC Multipoint Door Handles – 92mm/70mm PZ Unsprung 205mm Screw Centres

£21.90 – £33.73

+ Free Shipping

These Hoppe Asgard handles have an unsprung 92pz internal lever handle and a 70pz external moveable pad. With a backplate size of 230mm x 28mm they are available in white and gold finishes.

The distance between the fixing screws is 205mm with the bottom screw positioned 39mm below the euro profile cut-out.

They are supplied as a pair without spindles & fixings. See below ordering options for spindle & screw packs.

  • V-FIXKITW – 1 x spindle & 2 x white fixing screws
  • V-FIXKITG – 1 x spindle & 2 x gold fixing screws
  • TSSSPIN8 – 1 x spindle only
SKU: N/A Categories: , ,
Guaranteed Safe Checkout
  • Length: 230mm
  • Width: 28mm
  • Centres (PZ): 92mm / 70mm
  • Screw Centres: 205mm
  • Base of euro to bottom screw: 39mm
  • Top screw to spindle: 68mm (pad), 46mm (lever)
  • Not supplied with spindles & screws
  • White fixing pack: V-FIXKITW
  • Gold fixing pack: V-FIXKITG
  • Supplied as a pair
  • Non-handed
  • Polybagged
Colour

Gold, Silver, White
