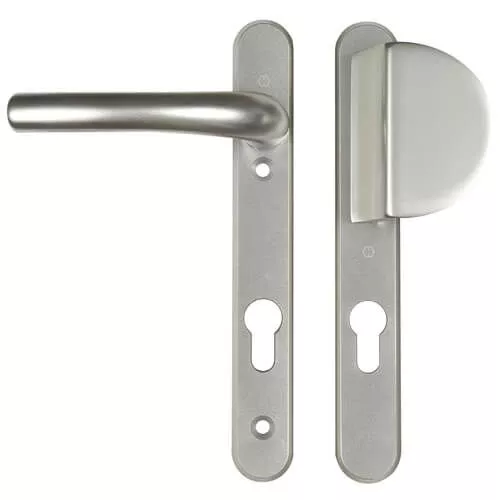

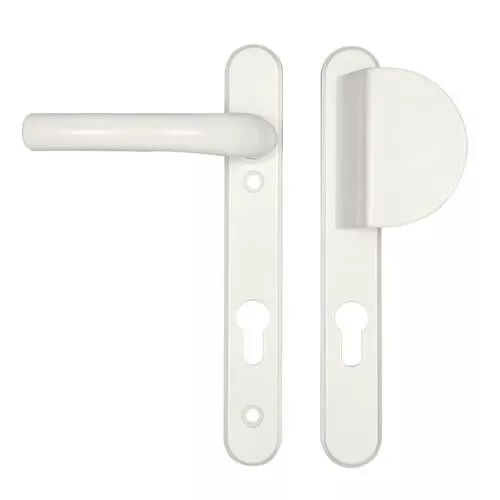

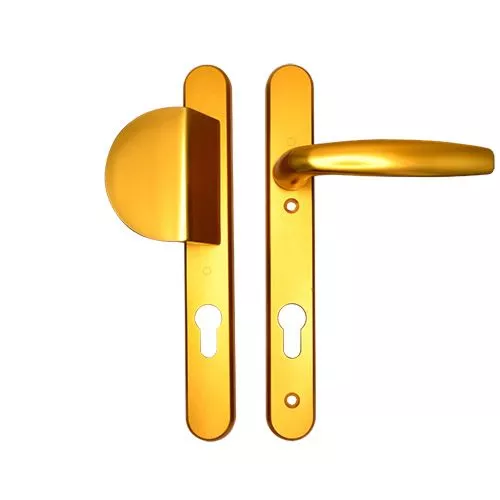

Hoppe Atlanta Lever Fixed Pad UPVC Multipoint Door Handles – 92mm PZ Sprung 122mm Screw Centres
This Hoppe handle set is from the Atlanta range. It has a sprung 92pz internal lever handle and an external fixed pad on a 240mm x 32mm wide backplate which is available in various finishes.
The distance between the fixing screws is 122mm with the bottom screw positioned 23mm below the euro profile cut-out.

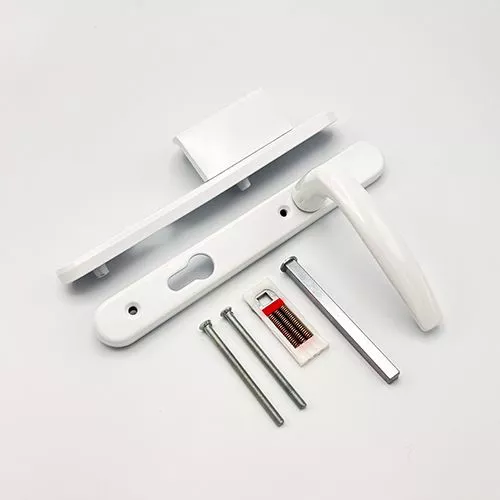

They are supplied as a pair complete with fixings consisting of spindle, 2 colour co-ordinated screws and a spring cassette.

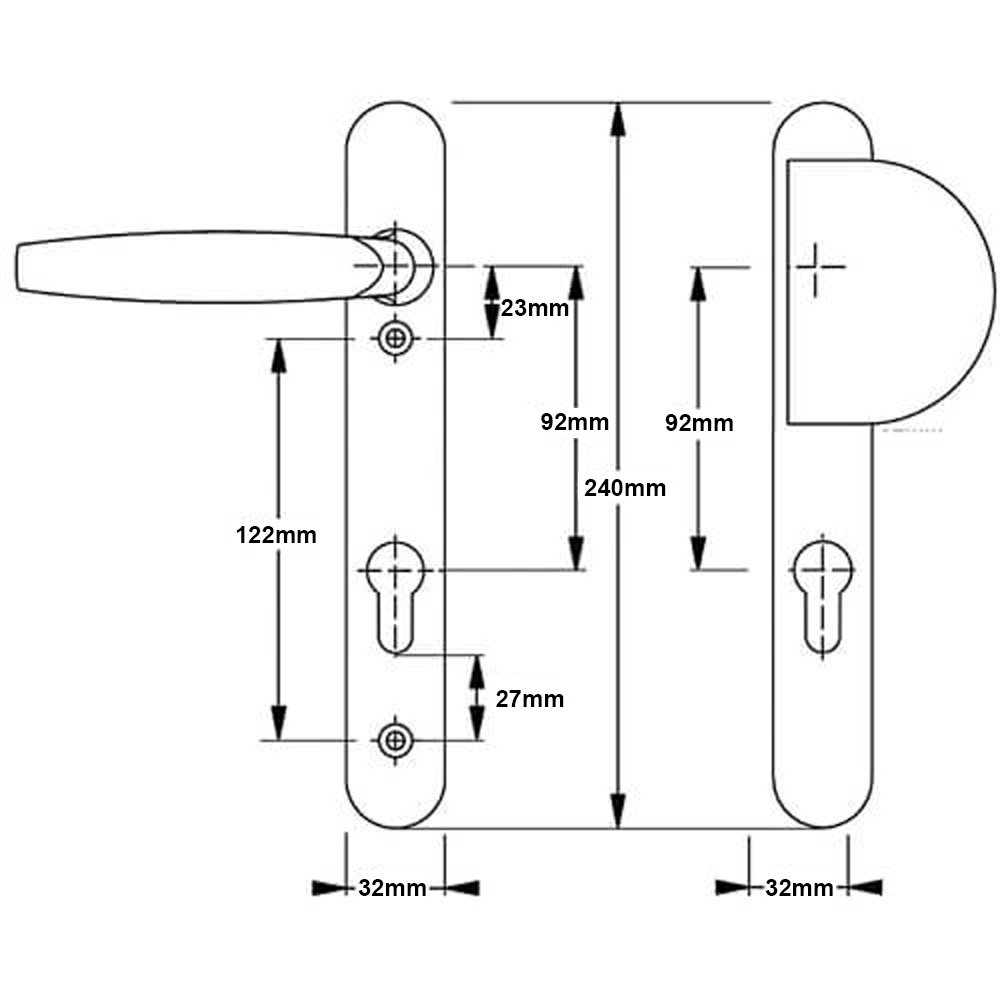

- Length: 240mm
- Width: 32mm
- Centres (PZ): 92mm
- Screw centres: 122mm
- Base of euro to bottom screw: 26mm
- Top screw to spindle: 23mm
- Supplied with spindle, screws and spring cassette
- Supplied as a pair
- Non-handed
- Polybagged
Price range: £30.38 through £36.18
