- Unsprung
- Length: 245mm
- Width: 30mm
- Centres (PZ): 70mm
- Screw centres: 200mm
- Base of euro to bottom screw: 36mm
- Top screw to spindle: 70mm
- Supplied with 7mm spindle & screws
- Supplied as a pair
- Non-handed
- Polybagged
Door Handles, Lever Lever, Multipoint & UPVC
Hoppe Frankfurt Lever Lever UPVC Multipoint Door Handles – 70mm PZ Unsprung 200mm Screw Centres
£33.28 – £40.30
+ Free ShippingThese Hoppe handles from the Frankfurt range have unsprung 70pz internal & external levers. With a backplate size of 245mm x 30mm, they are available in various finishes and are commonly used with GU Ferco multipoint locks with a 7mm follower. These handles are not compatible with spring cassettes.

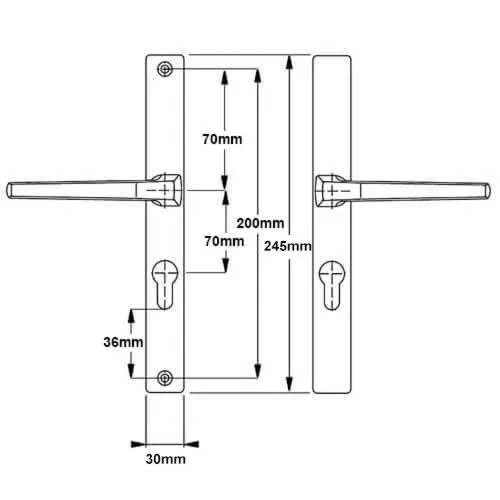

The distance between the fixing screws is 200mm with the bottom screw positioned 36mm below the euro profile cut-out.

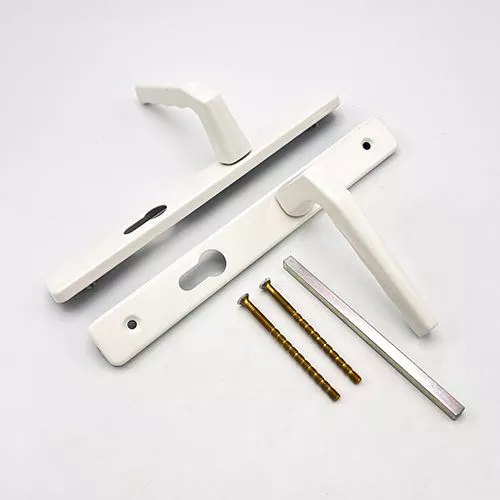

They are supplied as a pair complete with a 7mm square spindle & 2 colour coordinated bolt through fixing screws.

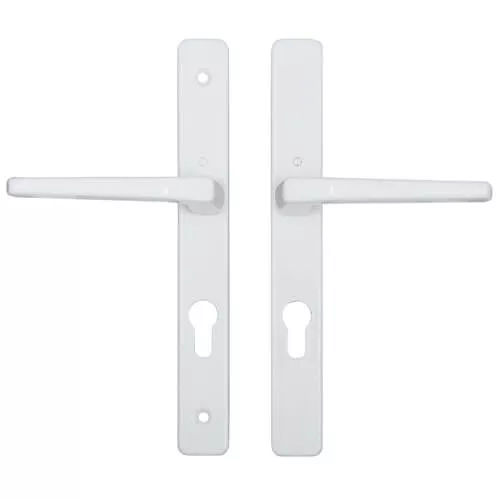

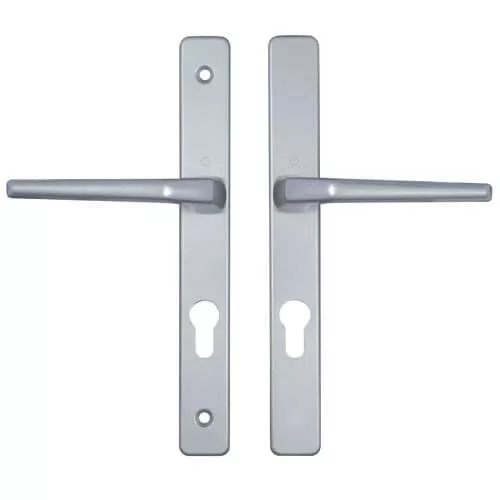

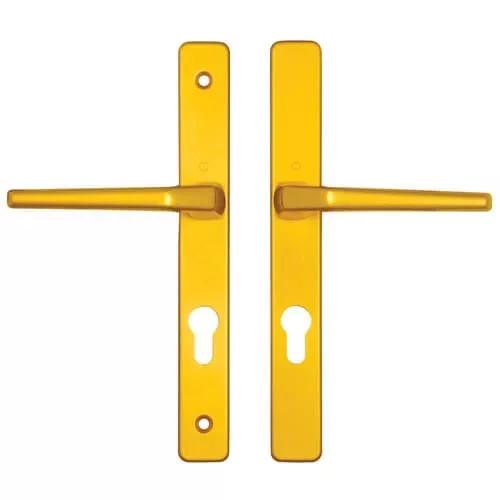

| Colour | Gold, Silver, White |
|---|
