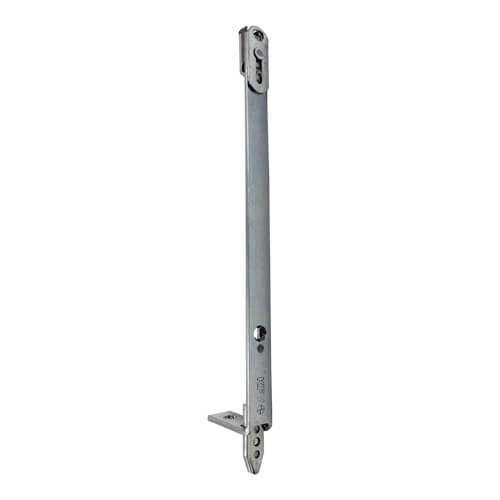

KFV Top Shootbolt – Normal Action – 235mm
A KFV normal action top shootbolt for use with multipoint locks with serrated drive rods.
The overall faceplate length is 235mm, the width is 16mm and the throw of the shootbolt is 22mm.
A shootbolt keep is not supplied and can be ordered separately, see below ordering codes for the associated keep and equivalent bottom shootbolt.
- RD55185X – Shootbolt keep
- 3KFV2010 – Bottom reverse action shootbolt 235mm
£15.38
- Top or bottom: Top
- Action: Normal action
- Length: 235mm
- Width: 16mm

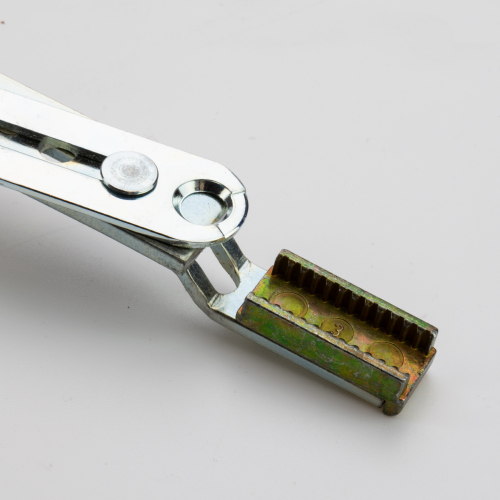

- Connection type: Serrated connecting shoe
- Croppable: No

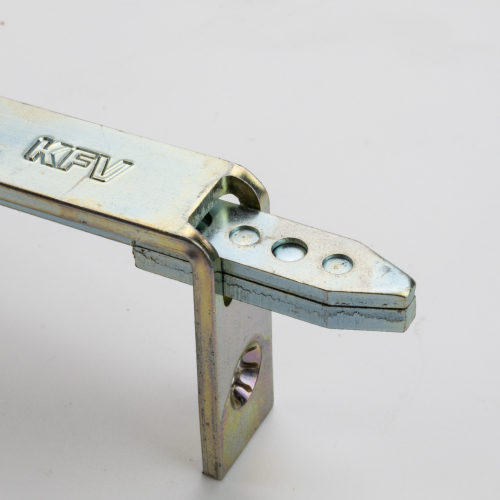

- Shootbolt throw: 22mm
- Supplied singles
