Lockmaster Lift Lever Passive Lock – Shootbolt Compatible

£56.52 – £72.30

+ Free Shipping

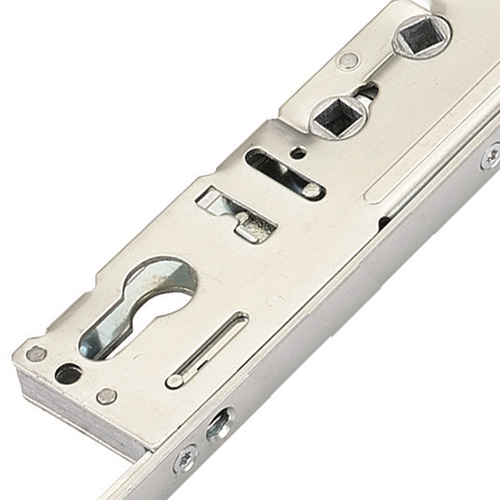

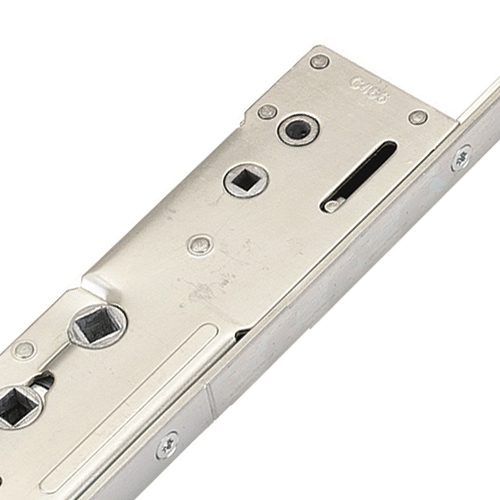

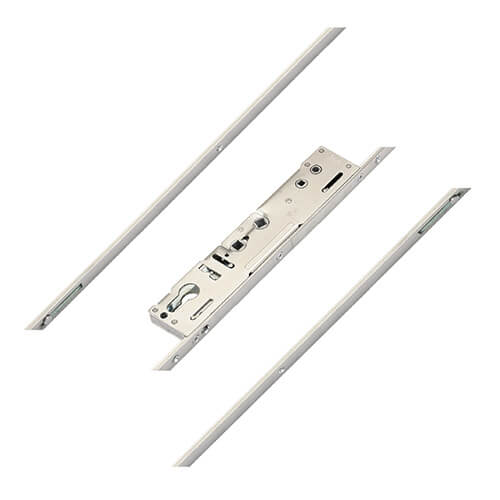

This Lockmaster Passive multipoint door lock features no locking points and is suitable for the passive door on a pair of French doors.

Passive locks are fitted to the secondary (or passive) door on a pair of French doors.

They are used in conjunction with the primary lock, which is a normal multipoint door lock, fitted to the main door.

Locking is achieved by shoot bolts which secure the secondary door leaf to the frame when the door is locked.

SKU: N/A Categories: , ,
Guaranteed Safe Checkout
  • Manufacturer: Lockmaster
  • Backset: Select from drop-down
  • Centres PZ: 92mm
  • Faceplate: Select from drop-down
  • Spindle Size: 8mm
  • Main Gearbox: Passive lock
  • Operation: Select from drop-down
  • Spindle: Single 8mm
  • Handing: Non-Handed

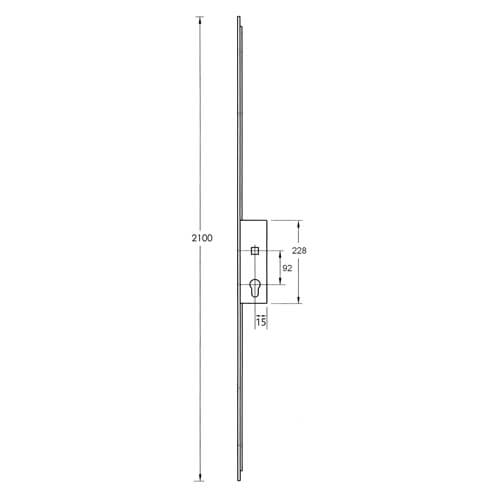

  • Height: 2100mm
  • Door Material: UPVC, Aluminium

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for Lockmaster Passive multipoint door locks, including keeps, spindles, handles and accessories.

You may find this lock used as an UPVC door lock or an aluminium door lock.

Backset

25mm, 28mm, 35mm
Spindle

Double 8mm, Single 8mm
Faceplate

Flat 16mm – Square Ends
Operation

Double Spindle, Lift Lever
