Maco Bottom Shootbolt with Mushroom Cam – Reverse Action – 300mm

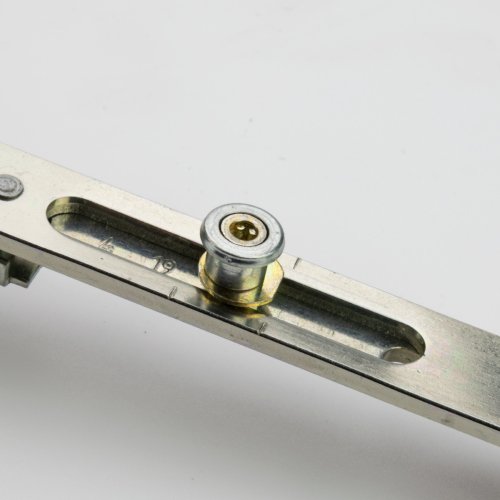

A Maco reverse action bottom shootbolt with a mushroom cam for use with Maco multipoint locks with serrated drive rods.

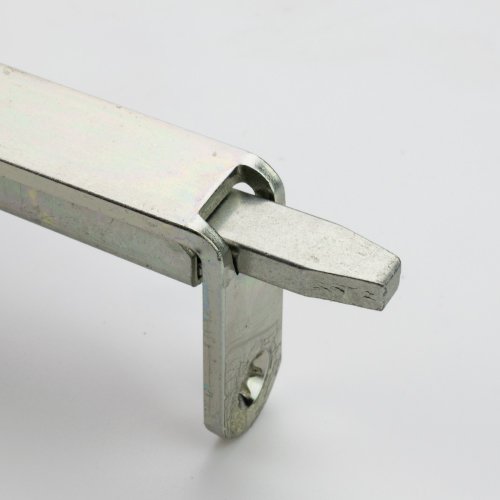

The overall faceplate length is 300mm, the width is 16mm and the throw of the shootbolt is 20mm.
A shootbolt keep is not supplied and can be ordered separately, see below ordering codes for the associated keep and equivalent top shootbolt.
- RD55185X – Shootbolt keep
- MA29275 – Top normal action shootbolt 300mm
£14.20
- Top or bottom: Bottom
- Action: Reverse action
- Length: 300mm
- Width: 16mm
- Connection type: Serrated connecting shoe
- Croppable: No
- Shootbolt throw: 20mm
- Supplied singles
