Maco GTS 2 Hook Refurb Kit – Lift Lever Version

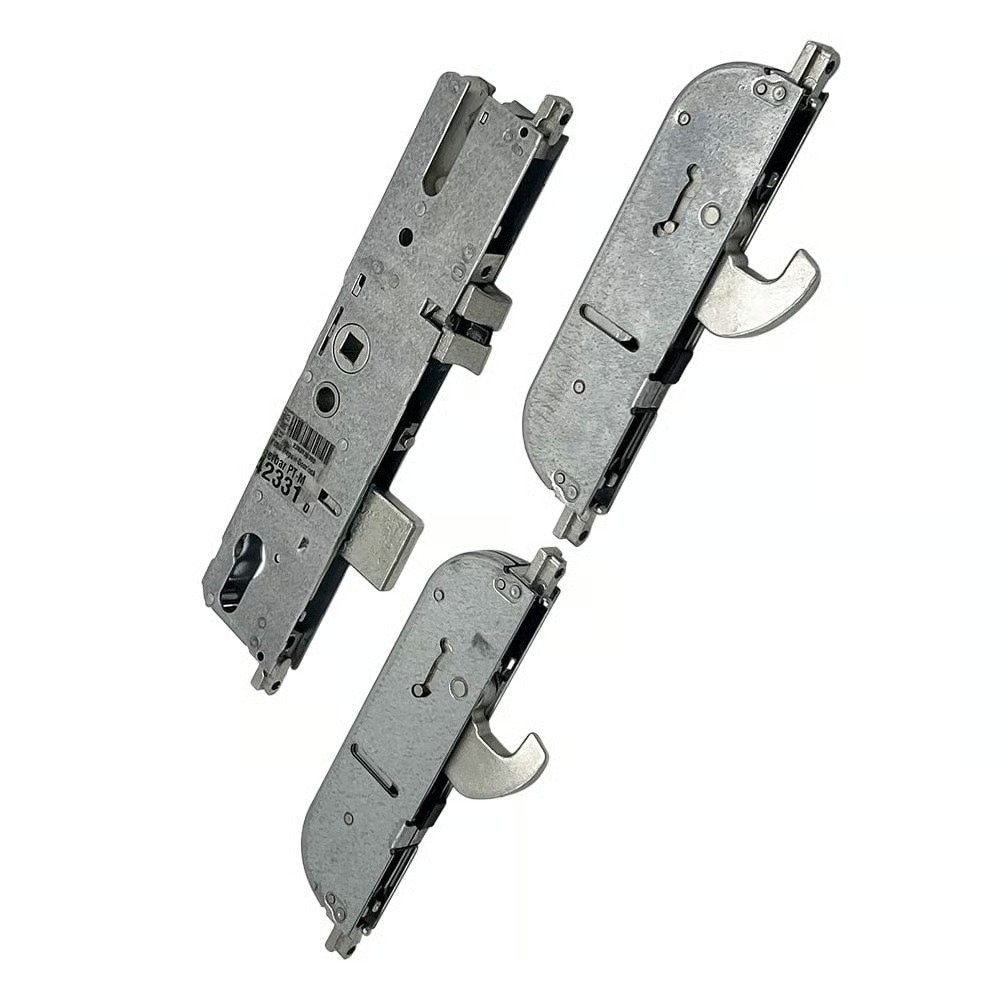

This Maco kit contains all of the necessary components to refurbish any Maco GTS Multipoint Door Lock with the following characteristics: A latch and deadbolt centre case (single spindle version), and 2 hookbolt cases.
These kits offer a convenient way to repair and recommission failed multipoint door lock mechanisms, in a package no larger than a pizza box!
The vast majority of multipoint locks require replacement due to a failure of one or more of the locking points, the spindle follower, or internal parts within the main gearbox. In most cases the faceplate and drive rods themselves are undamaged and able to be re-used. Our Refurb Kits include all the bolt on components of the multipoint lock system, allowing a complete replacement of all these critical parts and a total overhaul of the lock.
One major benefit of this approach is that the kit comes in a package so small that it becomes viable to hold stock of everything required to refurbish all popular locks from manufacturers found in the UK. By eliminating the need to identify and order a full length like for like replacement, the Refurb Kit system enables a lock to be removed, repaired, and recommissioned, quickly and all in a single visit without ever having to identify the exact model number, wait for a delivery or handle a parcel over 2 metres long. Simply select the refurb kit that suits the gearbox and locking point options from your van stock, fit the components to the old locks faceplate, and reinstate the lock safe in the knowledge all moving and locking components are brand new.
Price range: £44.91 through £59.58
