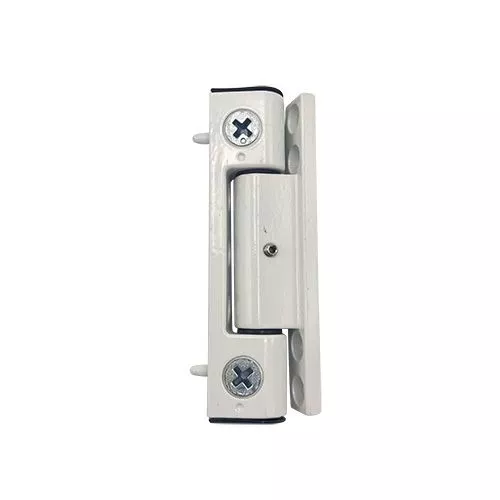

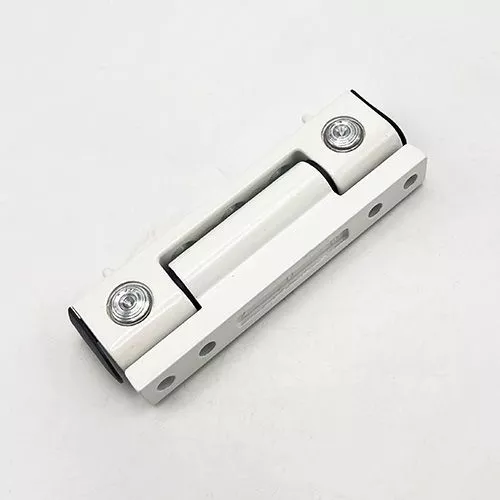

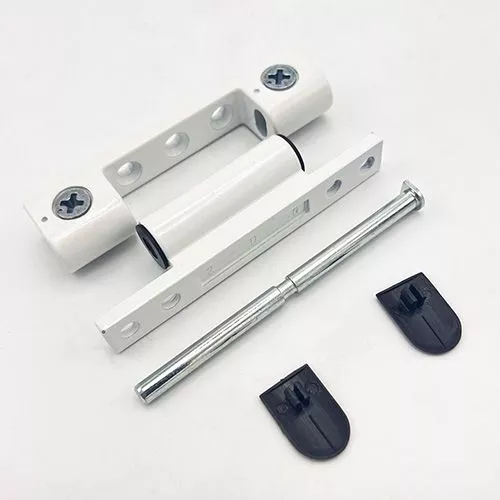

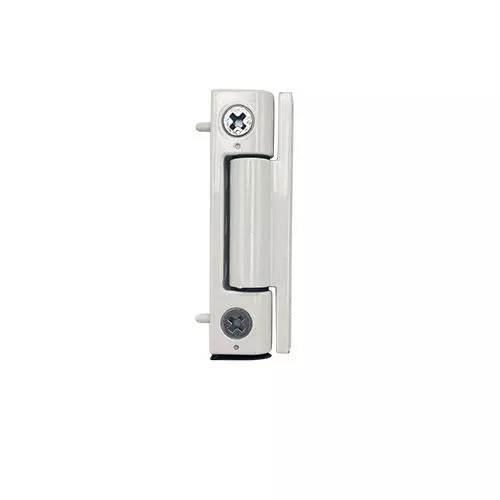

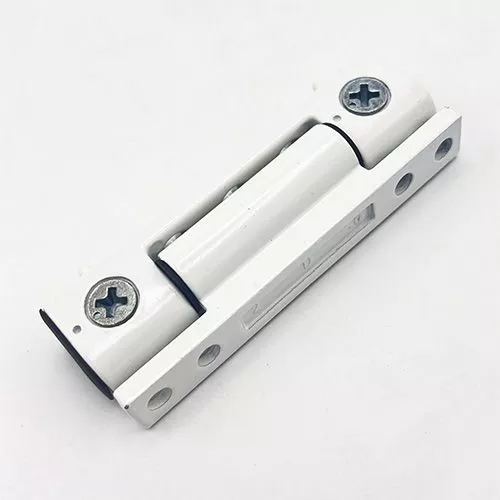

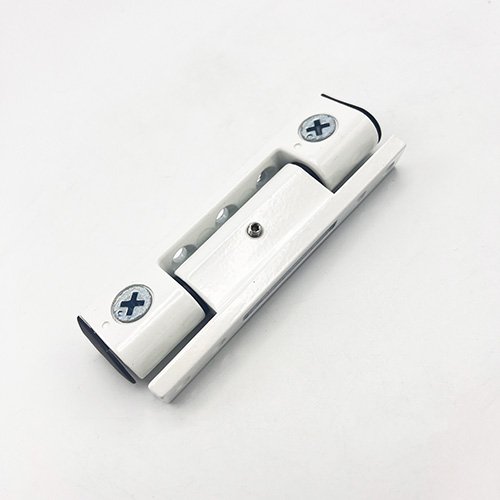

Paddock Neon Butt Hinge for UPVC Doors
Also known as Mila Pendulum, these hinges have a 4mm horizontal adjustment without removing the door.
Designed for UPVC doors these hinges hold a maximum of 80kg (3 hinges).
Simple screwdriver adjustment.

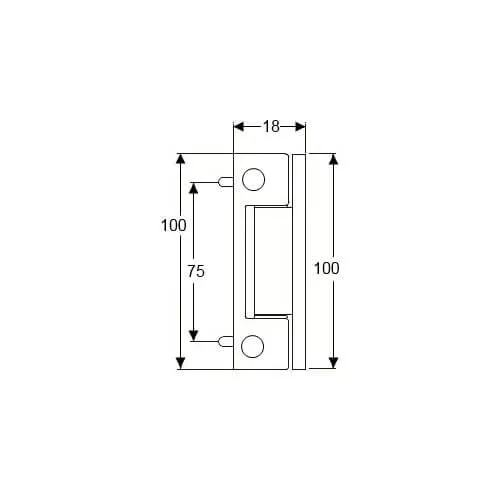

- Height: 100mm
- Width: 18mm
- Door type: UPVC
- Adjustment: 4mm horizontal
- Max door weight: 80kg (3 hinges)
Price range: £14.06 through £14.60
