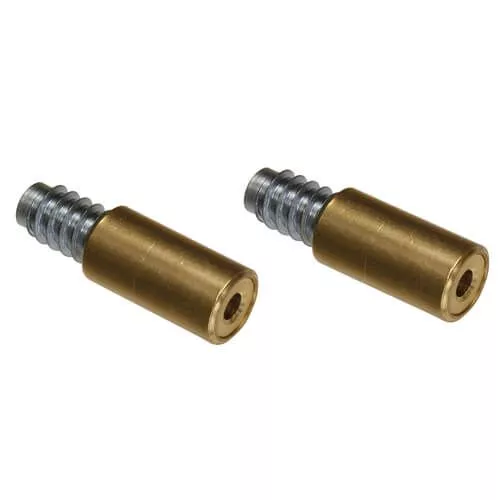

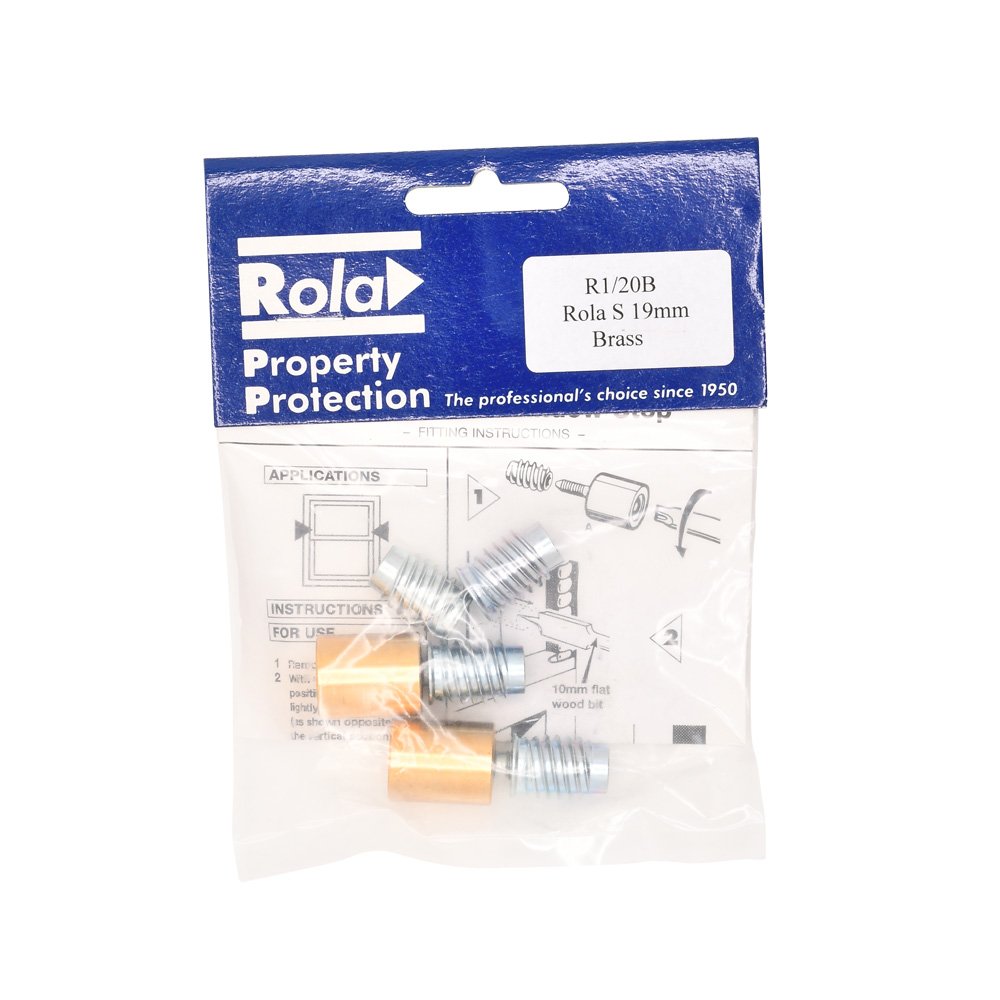

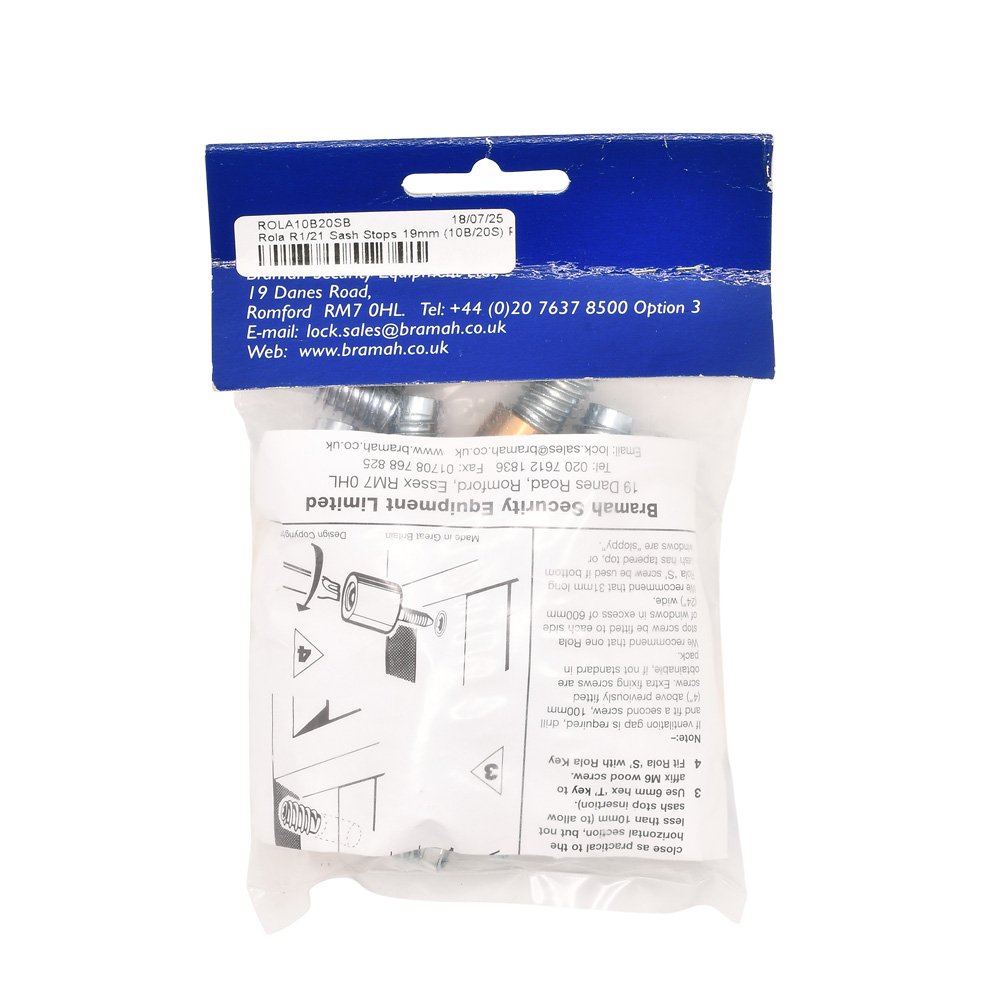

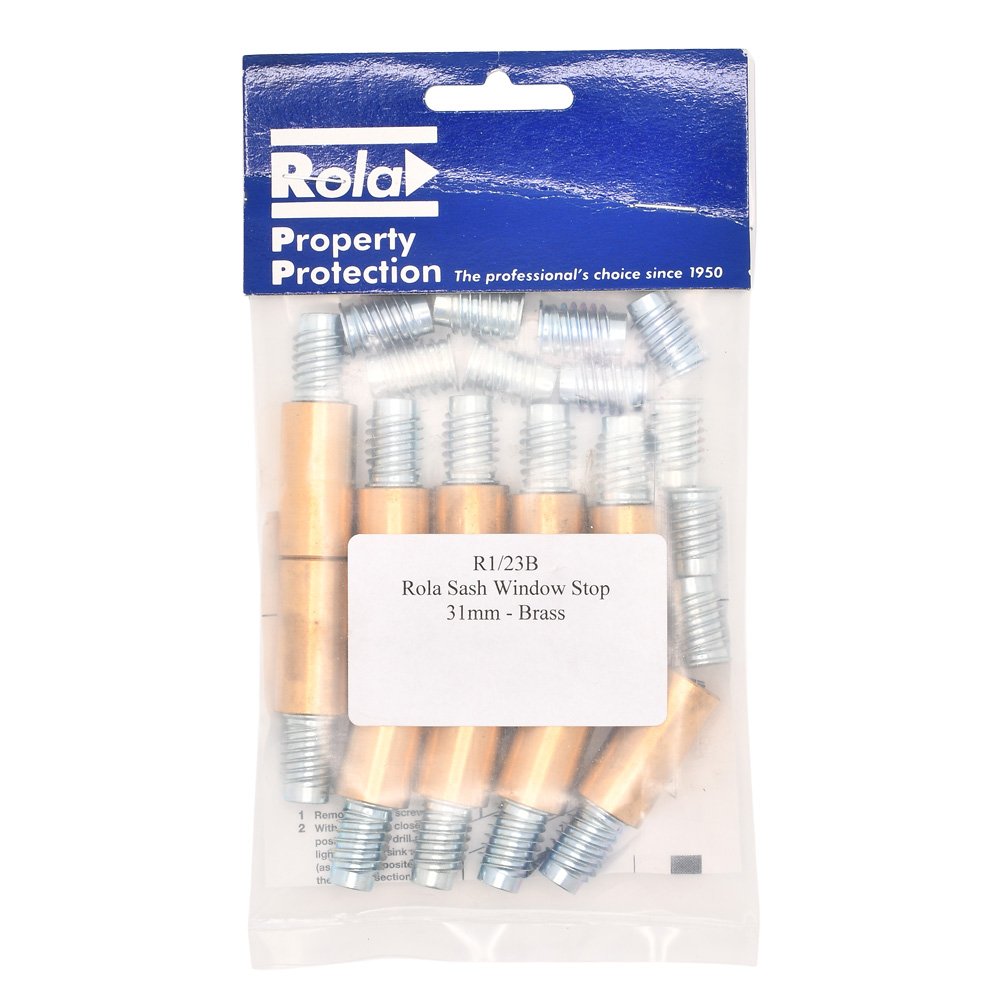

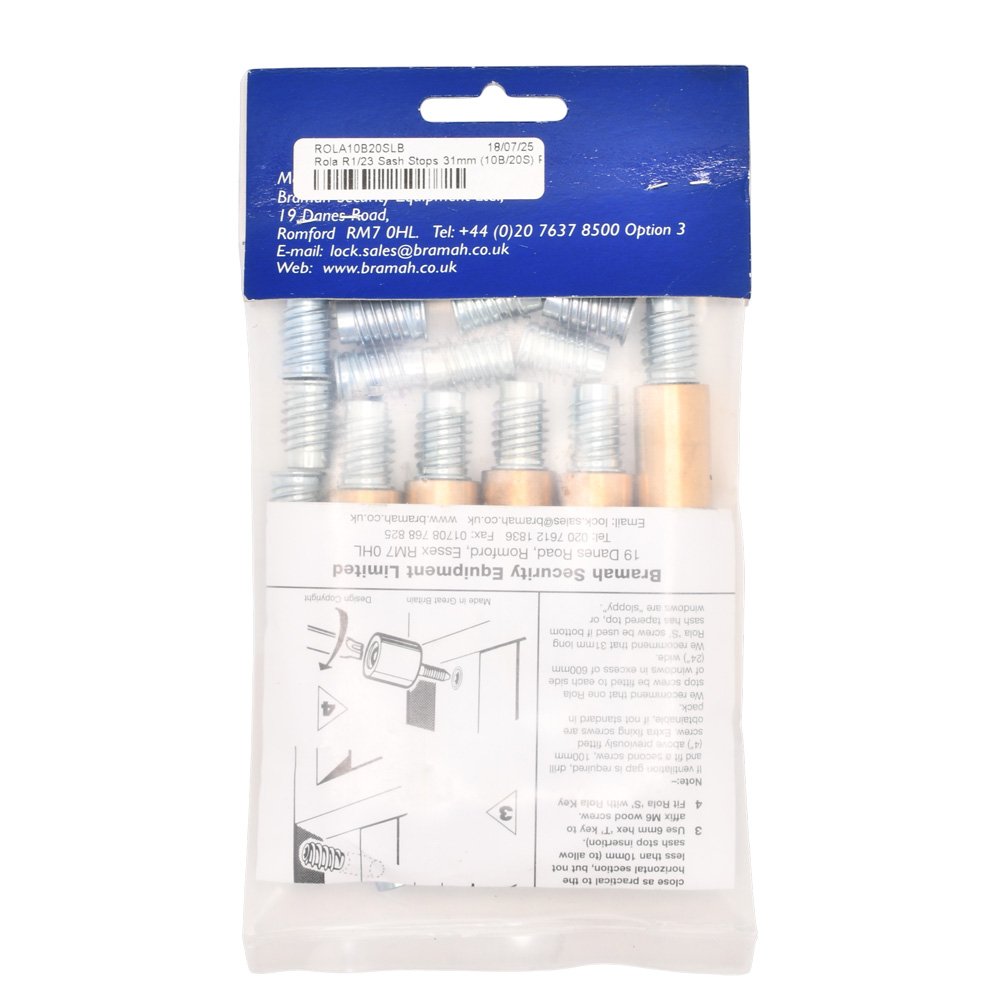

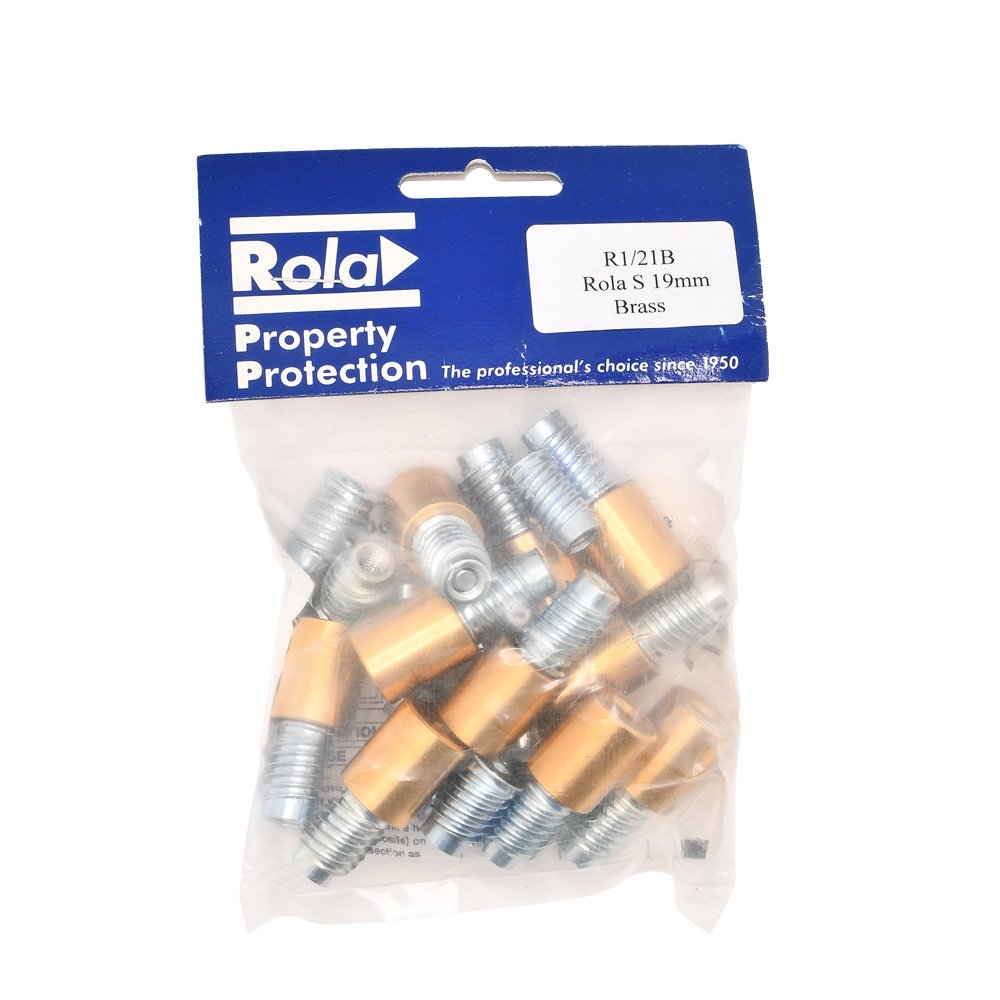

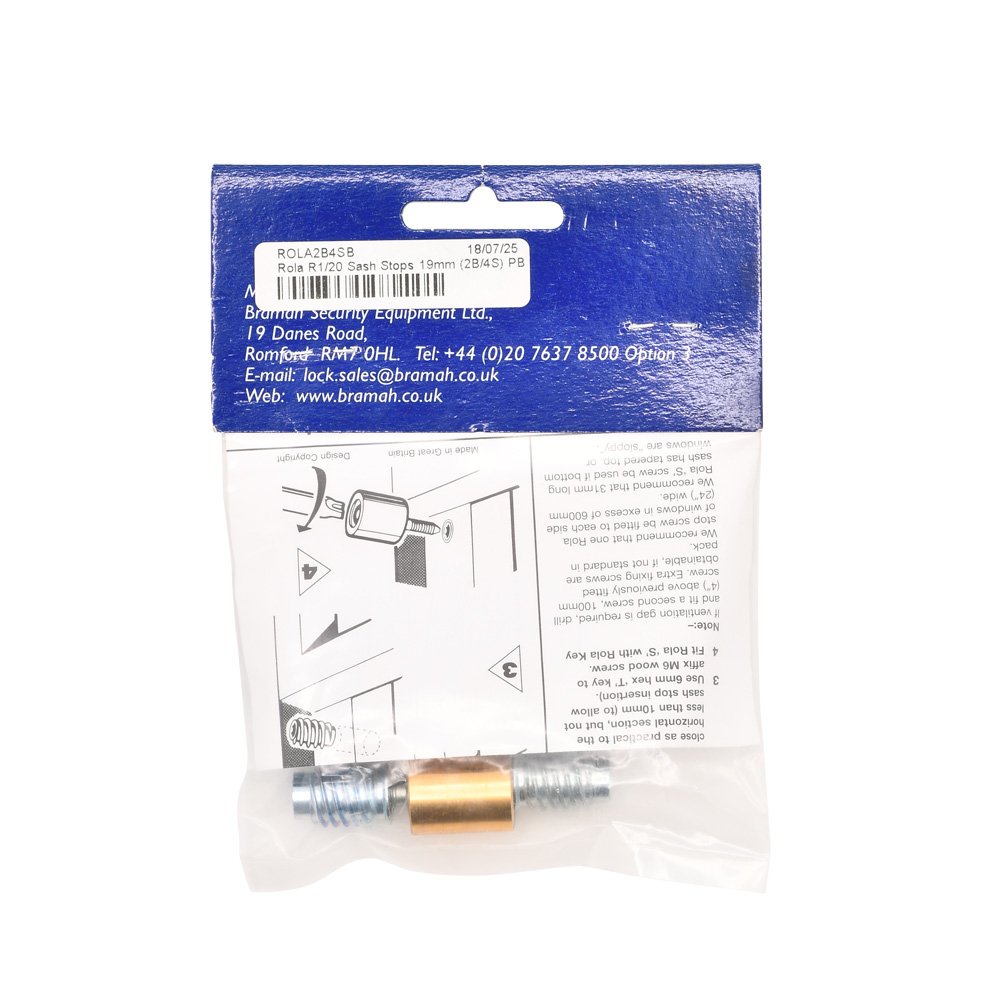

Rola Wooden Sash Window Stops
Sash stops designed to secure sliding sash windows together
- Locked and released by the key
- Body Length: 19mm or 31mm
- Screw length: 17mm M6 Thread
- Keys supplied separately
- Additional threads are used to allow for two positions for each stop
- Supplied in singles
Price range: £1.71 through £244.61
Related products
-
Door Handles, Lever Lever, Multipoint & UPVC
TSS Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 210mm Screw Centres
Quick View
Door Handles, Lever Lever, Multipoint & UPVCTSS Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 210mm Screw Centres
The TSS lever/lever multipoint door handle is a high-quality multipoint door handle that is available in a range of finishes including white, black, polished chrome, silver and polished brass.
This handle has a backplate measuring 242mm and screw centres measuring 210mm. It is a durable and reliable handle, The handles have undergone cycle testing of over 50,000 operations. The Polished Chrome, Silver and Polished Brass finishes have undergone salt spray testing for over 240 hours.
This handle is compatible with most 92mmPZ multipoint locks.
They are supplied as a pair complete with fixings consisting of spindle & 2 colour coordinated screws.
SKU: n/a -
Door Locks, Multipoint, Multipoint & UPVC
TSS Economy Compact Latch Deadbolt 4 Rollers Key Wind Multipoint Door Lock
Quick View
Door Locks, Multipoint, Multipoint & UPVCTSS Economy Compact Latch Deadbolt 4 Rollers Key Wind Multipoint Door Lock
This TSS multipoint door lock features 4 Rollers, 1 Deadbolt & 1 Latch.
These economy 4 roller multipoint door locks are available in a 35mm backset and are perfect to retrofit.
Featuring a key wind function and a 195mm high gearbox, its roller cams are positioned to replace most leading brands.
A compact 1800mm long faceplate will save time cutting down to size when fitting.
A lift lever version is also available in a 28mm and 35mm backset please see part numbers ECO4R28 and ECO4R35.
Operation:Â Key Wind
To lock the door
1. On closing the door, the latch is automatically engaged.
2. Turn the key to throw and engage or “wind” out the locking points.
To unlock the door
1. Turn the key to unlock the door by “unwinding” the locking points.
2. A further quarter turn of the key will retract the latch.
Latch Reversal:
- In line with the latch, there is a rectangular cut out on the gearbox, within this cut out locate the small pin.
- Line this pin up with the hole on the opposite side of the lock case by pushing the latch into the case about halfway.
- Once the pin is in line with the hole push the pin out using a pin punch or small screwdriver.
- Once the pin is removed you will be able to remove the latch, reverse and re-insert.
- With the latch in the same position as step 2 re-insert the pin.
You may find this lock used as a UPVC door lock or an aluminium door lock.
SKU: ECO354RKW -
Door Locks, Multipoint, Multipoint & UPVC
Accado Style Latch Deadbolt 4 Roller Multipoint Door Lock
Quick View
Door Locks, Multipoint, Multipoint & UPVCAccado Style Latch Deadbolt 4 Roller Multipoint Door Lock
This Accado Style multipoint door lock features 4 Rollers, 1 Deadbolt & 1 Latch.
Accado Style multipoint door locks are made by Turkish manufacturer, Accado. They were imported into the UK and fitted onto PVCu doors sold by B&Q, although it has been some time since B&Q have sold doors with these locks fitted.
While this lock is relatively obscure, there are many doors with this lock in use. It’s relatively easy to identify by its 85mm PZ (centres) measurement and 4 roller configuration. It also features a latch reversal instruction sticker on the side of the lock case and some variations have Accado stamped on the faceplate.
Multipoint locks with 85mm PZ are rare in the UK but are common in Europe and the rest of the world. The 4 roller configuration of this lock makes it a useful product to replace an existing 85mm centre locks, where the centres cannot be changed, even if they are not Accado branded.
Sold in Turkey with 25mm, 28mm and 35mm backsets, this lock was fitted to PVCu doors in the UK with a 35mm backset and 16mm faceplate. The rollers are positioned at 308mm and 824mm above the spindle and 300mm and 806mm below the spindle.
Unfortunately, handles are harder to source, so if the handles are damaged on your door, we would recommend swapping the lock for a 92mm PZ version, repositioning the roller keeps and fitting new handles.
Accado gearboxes are distinctive because of their 85mm centre measurement. Newer versions have the top corner of the gearbox cut out with a groove for handle fixings, whereas older versions feature a curved top. Also, the older versions are no longer available but they can be interchanged with the new gearbox.
Certain versions of this gearbox also feature a black plastic cover on one side (with metal on the other side).
Accado Style gearboxes measure 225mm high by 51mm wide. They were only available with a 35mm backset when fitted to doors sold by B&Q. The deadbolt is 31mm high, projecting out 13mm when thrown, and the latch is 25mm high.
These gearboxes are only available with lift lever functionality.
Accado Style locks feature traditional, round rollers with minimal adjustability.
Operation:Â Lift Lever
To lock the door
1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.
We stock a range of associated products for Accado Style multipoint door locks, including keeps, spindles, handles and accessories.
To reverse the latch on this lock:
1. Locate the small screw on the reverse side of the lock, which is just behind the latch.
2. Unscrew this screw until you feel the latch move.
3. Push the latch back into the e body of the lock.
4. Rotate the latch and allow it to spring back to its normal position.
5. Re-tighten the screw to complete the reversal.
You may find this lock used as an UPVC door lock or an aluminium door lock.
SKU: ACC4R35 -
Door Locks, Multipoint, Multipoint & UPVC
Avantis Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 640mm)
Quick View
Door Locks, Multipoint, Multipoint & UPVCAvantis Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 640mm)
This Avantis multipoint door lock features 2 Rollers, 2 Hooks, 1 Deadbolt & 1 Latch.
The Avantis 650 Series Residential lock is easily recognised by it’s unique latch and deadbolt configuration.
Avantis locks have the largest hooks on the market at 25mm.
This is the standard version but a narrow locking position version is also available.
Avantis multipoint door locks are one of the easiest locks to identify before you have removed it from the door. They feature an unusual configuration where the deadbolt sits above the latch.
Avantis locks are specifically designed for the UK residential door market. They feature a 25mm throw and a direct drive deadbolt in the main gearbox whereas most gearbox deadbolts from other manufacturers only throw 20mm. The Avantis deadbolt also features 5 grooves and is chamfered for improved compression.
Also, 16mm faceplate locks are compatible with shootbolts.
Established in 2006, Avantis is a relatively new multipoint lock manufacturer, so demand for repairs and replacements is beginning to grow. The business was established by the former CEO of Millenco, so while the brand is new, there is plenty of expertise available in the UK market.
Avantis gearboxes are unique in the market, featuring a distinctive grooved deadbolt sitting above the latch. The deadbolt measures 30mm high and extends 25mm when thrown. The distance from the bottom of the deadbolt to the top of the latch is 60mm and the latch is 24mm high.
These gearboxes are available as a double spindle with centres at 92mm and 62mm. Therefore, they can be used with a double spindle nightlatch functionality (often used on front doors) or as a standard lift lever, using the top spindle only (commonly used on back doors). The spindles feature a unique cross shape but they also accept a normal 8mm spindle.
Gearboxes measure 220mm high x backset +15mm. Be sure to allow for 2mm when measuring the backset on a lock that already has the faceplate fitted.
Gearboxes are fixed to the faceplate using 4 screws. One is above the deadbolt, with 2 screws between the latch and deadbolt and the last screw is located below the latch. They measure 47mm from the top to the 2nd screw hole, 40mm from the 2nd to 3rd and 42mm from the 3rd to 4th screw hole.
Avantis are proud to state their hooks are the largest on the UK market and provide the highest level of security. They are chamfered to ensure that the door is pulled to the frame, to enhance weather sealing. Also, hooks on Avantis locks throw in opposing directions.
Rollers are used for compression, to pull the door against the frame, to help prevent dust or water ingress. They do little for security, but they also have the added benefit of helping to prevent the door from becoming warped as it is supported across its full height. This is dependent on the rollers being engaged into their keeps.
Operation:Â Double Spindle
SKU: n/a
