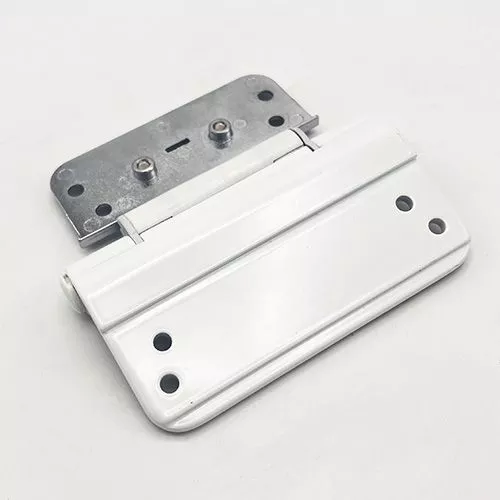

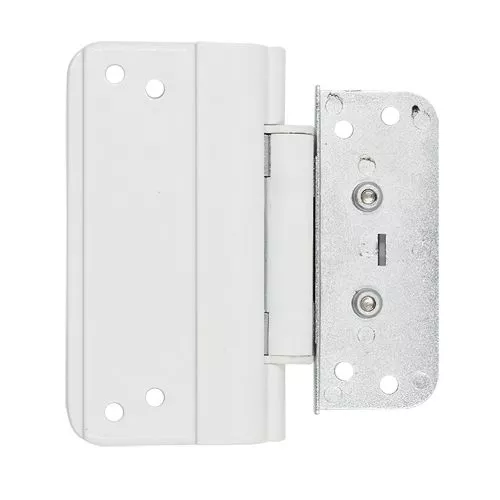

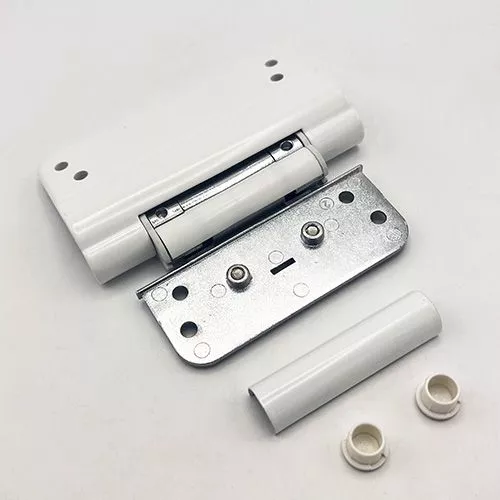

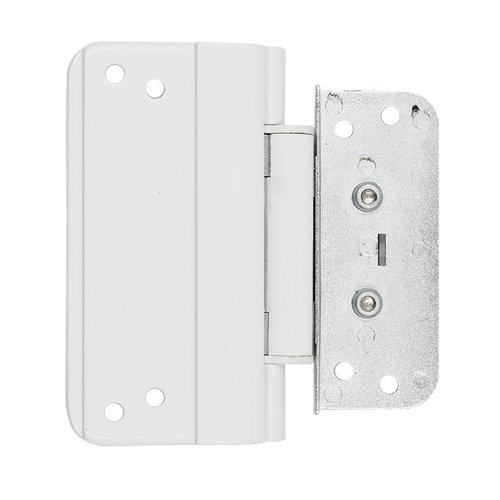

Trojan 3D Composite Door Hinge

The Trojan 3D Composite Door Hinge is a fully 3D adjustable door hinge for composite doors.

Rebated fitment. Max weight for 3 hinges is 100kg.

• Manufacturer: Trojan
• Colour: White

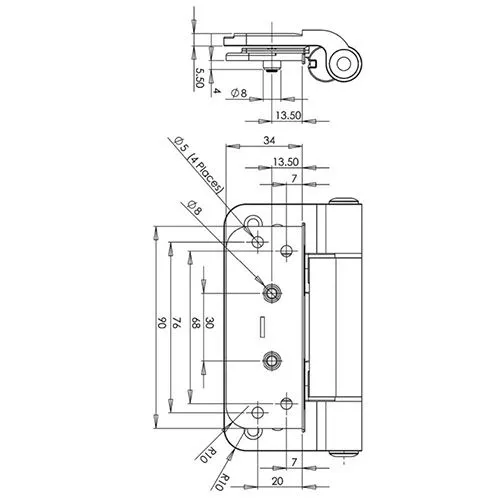

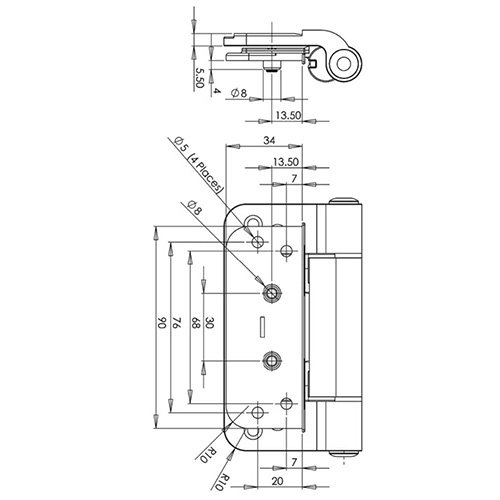

• Sash piece height: 90mm
• Sash piece width: 34mm
• Sash piece thickness: 5.5mm
• Sash piece corner radius: 10mm
• Sash weight per hinge: 33.3kg
• Sash weight for x3 hinges: 100kg
• Height adjustment: +/- 4mm
• Compression adjustment: +/- 1.75mm
• Lateral adjustment: + 3mm
• Corrosion tested to BSEN 1670
