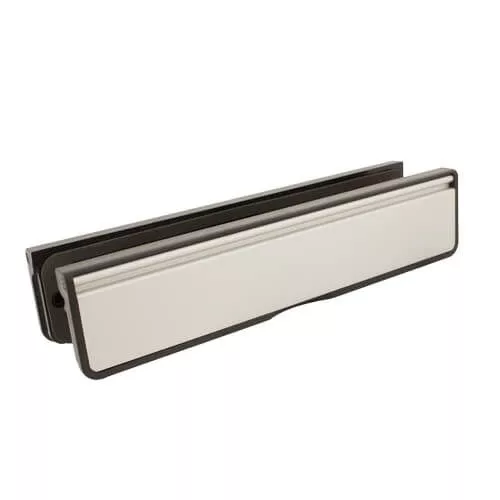

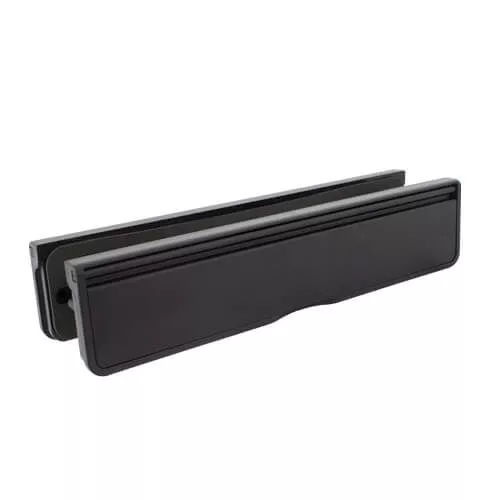

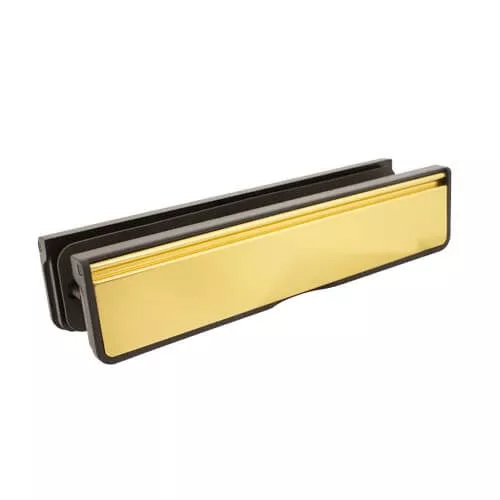

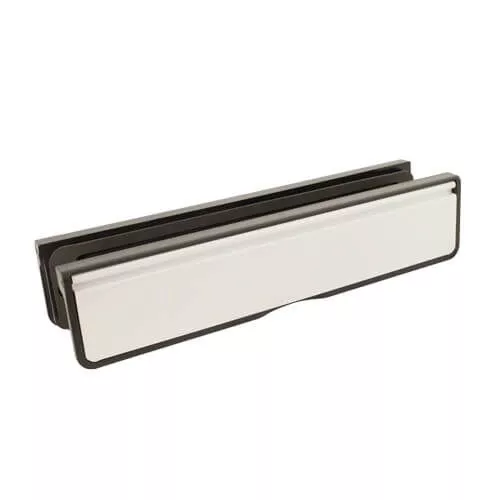

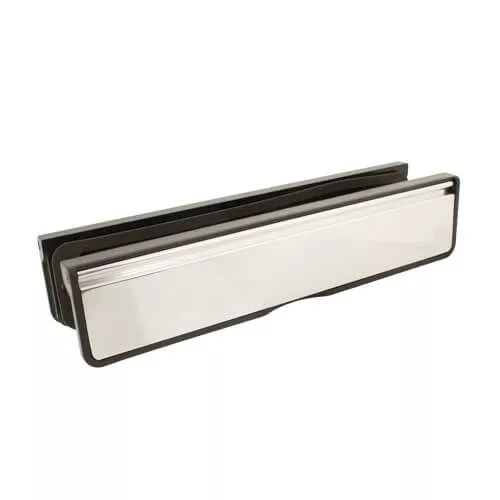

TSS 12″ Telescopic Letterplate for UPVC Doors – 40-80mm

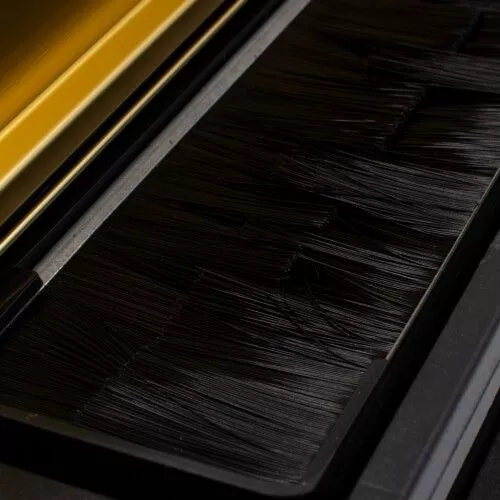

This TSS letterplate is suitable for UPVC doors. These letterplates contain outward facing brushes provide an Anti-Vandal feature as they prevent vandals from placing unwanted items into the cavity, as well as better draught proofing and makes it easier to post letters through
With a 180° opening flap means it will not snap if opened too far and blind bolts prevent the outer frame being unscrewed from the door externally.
An internal water seal prevents water from getting into the door panel and stops letters getting wet.
Price range: £8.32 through £9.72
- Mid Rail Fit
- Size: 300mm x 65mm
- Aperture: 250mm x 40mm
- Screw Centres: 280mm
- Depth: 40mm-80mm
