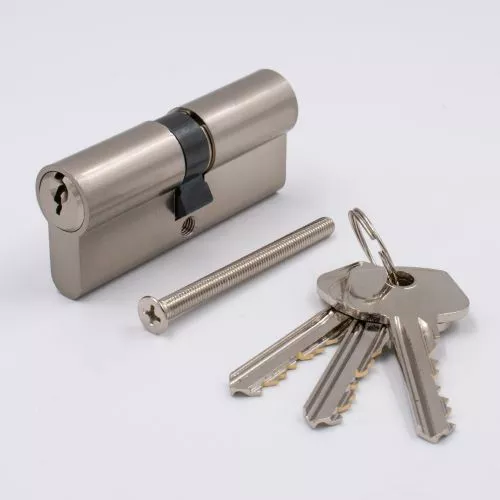

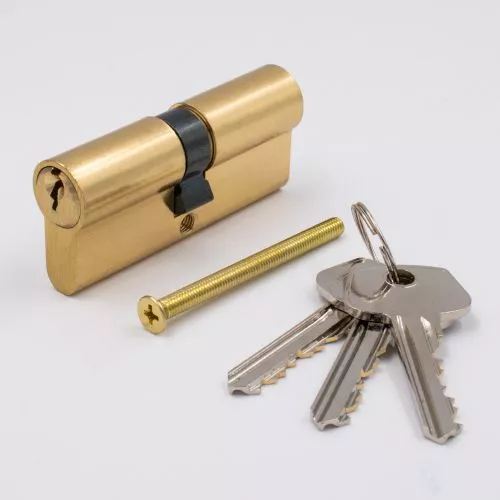

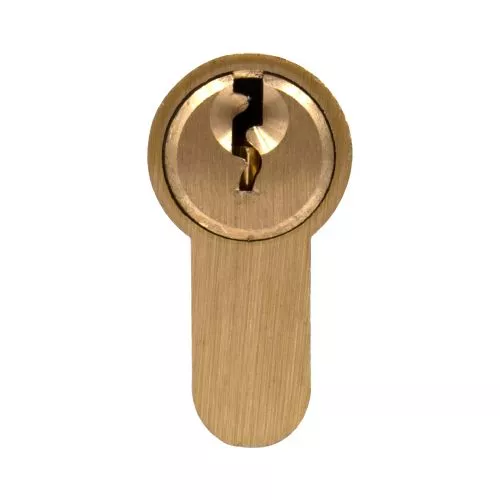

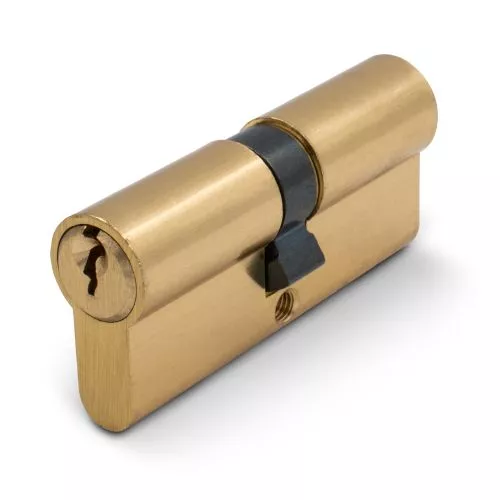

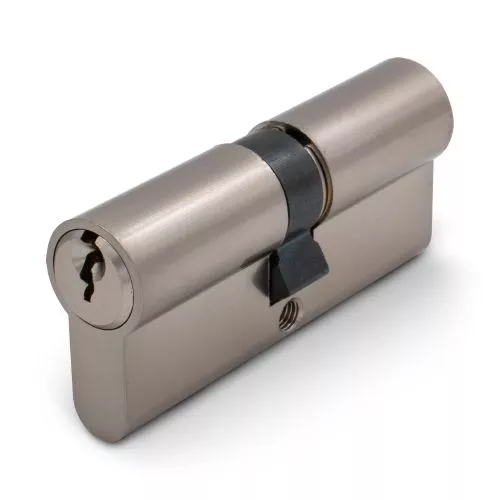

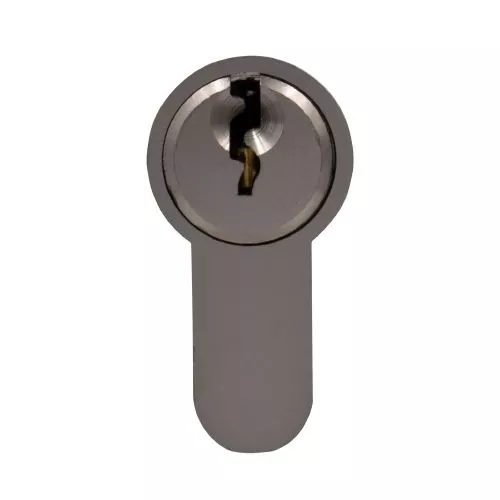

TSS Contract Euro Double Cylinders
These Contract euro double cylinders use an open profile to allow keys to be cut easily.
Quality 6 pin mechanism with anti drill and anti pick pins, making the cylinder robust and very secure.
Vast range of sizes at competitive prices.
Available in Brass or Nickel finish and supplied with 3 keys.
£6.51
- Pins: 6
- No of Keys: 3
- Restricted: No
- Anti Pick: Yes
- Anti Bump: No
- Anti Drill: Yes
- Anti Snap: No
- British Standard Kitemark: No
Related products
-
Door Locks, Multipoint, Multipoint & UPVC
Avantis Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 540mm) – Shootbolt Compatible
Quick View
Door Locks, Multipoint, Multipoint & UPVCAvantis Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 540mm) – Shootbolt Compatible
This Avantis multipoint door lock features 2 Rollers, 2 Hooks, 1 Deadbolt & 1 Latch.
The Avantis 550 Series French door lock is easily recognised by it’s unique latch and deadbolt configuration.
Avantis locks have the largest hooks on the market at 25mm.
This is the standard version but a narrow locking position version is also available.
Avantis multipoint door locks are one of the easiest locks to identify before you have removed it from the door. They feature an unusual configuration where the deadbolt sits above the latch.
Avantis locks are specifically designed for the UK residential door market. They feature a 25mm throw and a direct drive deadbolt in the main gearbox whereas most gearbox deadbolts from other manufacturers only throw 20mm. The Avantis deadbolt also features 5 grooves and is chamfered for improved compression.
Also, 16mm faceplate locks are compatible with shootbolts.
Established in 2006, Avantis is a relatively new multipoint lock manufacturer, so demand for repairs and replacements is beginning to grow. The business was established by the former CEO of Millenco, so while the brand is new, there is plenty of expertise available in the UK market.
Avantis gearboxes are unique in the market, featuring a distinctive grooved deadbolt sitting above the latch. The deadbolt measures 30mm high and extends 25mm when thrown. The distance from the bottom of the deadbolt to the top of the latch is 60mm and the latch is 24mm high.
These gearboxes are available as a double spindle with centres at 92mm and 62mm. Therefore, they can be used with a double spindle nightlatch functionality (often used on front doors) or as a standard lift lever, using the top spindle only (commonly used on back doors). The spindles feature a unique cross shape but they also accept a normal 8mm spindle.
Gearboxes measure 220mm high x backset +15mm. Be sure to allow for 2mm when measuring the backset on a lock that already has the faceplate fitted.
Gearboxes are fixed to the faceplate using 4 screws. One is above the deadbolt, with 2 screws between the latch and deadbolt and the last screw is located below the latch. They measure 47mm from the top to the 2nd screw hole, 40mm from the 2nd to 3rd and 42mm from the 3rd to 4th screw hole.
Avantis are proud to state their hooks are the largest on the UK market and provide the highest level of security. They are chamfered to ensure that the door is pulled to the frame, to enhance weather sealing. Also, hooks on Avantis locks throw in opposing directions.
Rollers are used for compression, to pull the door against the frame, to help prevent dust or water ingress. They do little for security, but they also have the added benefit of helping to prevent the door from becoming warped as it is supported across its full height. This is dependent on the rollers being engaged into their keeps.
Operation: Double Spindle
SKU: n/a -
Door Handles, Lever Lever, Multipoint & UPVC
TSS Lever Lever UPVC Multipoint Door Handles – 68mm PZ Sprung 215mm Screw Centres
Quick View
Door Handles, Lever Lever, Multipoint & UPVCTSS Lever Lever UPVC Multipoint Door Handles – 68mm PZ Sprung 215mm Screw Centres
The TSS lever/lever multipoint door handle is a high-quality multipoint door handle that is available in a range of finishes including White, Black, Polished Chrome, Silver, and Polished Brass.
This handle has a backplate measuring 246mm and screw centres measuring 215mm. It is a durable and reliable handle, The handles have undergone cycle testing of over 50,000 operations. The Polished Chrome, Silver, and Polished Brass finish have undergone salt-spray testing for over 240 hours.
This handle is compatible with most 68mm PZ multipoint locks.
They are supplied as a pair complete with fixings consisting of the spindle, 2x Spring Cassettes & 2 colour coordinated screws.
SKU: n/a -
Door Handles, Lever Lever, Multipoint & UPVC
TSS Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 122mm Screw Centres
Quick View
Door Handles, Lever Lever, Multipoint & UPVCTSS Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 122mm Screw Centres
The TSS lever/lever multipoint door handle is a high-quality multipoint door handle that is available in a range of finishes including White, Black, Polished Chrome, Silver, Polished Brass and Anthracite Grey.
This handle has a short backplate measuring 212mm and screw centres measuring 122mm. It is a durable and reliable handle, The handles have undergone cycle testing of over 50,000 operations. The Polished Chrome, Silver and Polished Brass finish have undergone salt-spray testing for over 240 hours.
This handle is compatible with most 92mm PZ multipoint locks with a hole underneath the spindle insert.
They are supplied as a pair complete with fixings consisting of spindle & 2 colour coordinated screws.
SKU: n/a -
Door Locks, Multipoint, Multipoint & UPVC
Avocet Timber/Composite Affinity Bastion Latch Deadbolt 4 Hooks Double Spindle Multipoint Door Lock
Quick View
Door Locks, Multipoint, Multipoint & UPVCAvocet Timber/Composite Affinity Bastion Latch Deadbolt 4 Hooks Double Spindle Multipoint Door Lock
This Avocet multipoint door lock features 4 Hooks, 1 Deadbolt & 1 Latch.
Avocet multipoint door locks are easily identifiable once they are removed from the door. Faceplates are usually stamped with the Avocet logo, although older locks may have the “WMS” logo stamped. Gearboxes are uniquely shaped, with the cut out extending below the latch, which is unique when identifying multipoint locks.
Avocet multipoint door locks were originally available in a wide range of different configurations featuring hooks, rollers, deadbolts and an Affinity Bastion lock with opposing hooks. Earlier versions of Avocet multipoint locks were made in yellow passivated steel, which have a distinctive brassy colour. Recently, the locks have changed with faceplates made from a stainless steel or a Trivalent silver finish.
When these locks swapped from yellow passivated to silver, the majority of variations were replaced. Notable exceptions include the 2 roller and 2 mushroom lock as well as the shorter version of the 3 deadbolt lock designed for use on caravans. Please contact us if you would like assistance finding the best replacements for these locks.
Also, it’s worth noting some Avocet multipoint door locks feature a “sash lifter” device. This device was designed to help ensure the correct sash to frame alignment but these are no longer available so we would recommend replacing these locks with the standard version.
Most Avocet locks are only available in a 35mm backset, but the Affinity Bastion lock is designed for composite doors and feature a 45mm backset.
Although some original Avocet multipoint 4 roller door locks feature a single spindle and lift lever functionality, all current locks are only available in a double spindle nightlatch configuration. The centres are at 62mm and 92mm, but if the nightlatch functionality is not required, the lock can still be used as a lift lever version using the top spindle.
All Avocet locks which are designed for PVCu with a flat 16mm faceplate have the ability to accept shootbolts.
Avocet gearboxes measure 218mm high x backset + 15mm. It’s the large cut out in the top corner, that extends below the latch which makes them unique. This feature can assist with the fitment of handles as the screws are located above the lever.
Avocet gearboxes feature a latch that is 29mm high and a deadbolt that is 34mm high with a distance of 82mm between the top of the deadbolt and the bottom of the latch.
These gearboxes are not attached to the strip using conventional screws or rivets. Instead, the gearboxes are held by arms which connect using circlips. While it’s possible to remove a gearbox from a full Avocet lock, we would advise replacing the full unit. Also, it’s worth noting the design of the arms have changed over time and older gearboxes have a flat clip. Newer versions have a slightly curved connecting arm located lower down making gearbox swaps with newer for older versions impossible.
When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.
Avocet hooks throw in opposing directions, with the top hook going upwards, and the bottom hook throwing downwards. Hook boxes are 123mm high and doors that are normally prepared to 150mm will accept the hook case.
Avocet deadbolts feature a 20mm throw made from nickel plated brass. The deadbolt gearboxes feature a distinctive chamfered design, in contrast to the square design of Avocet hook cases.
Operation: Double Spindle
SKU: n/a
