Features
BSEN 1623 Fire Tested to 30 & 60 minutes

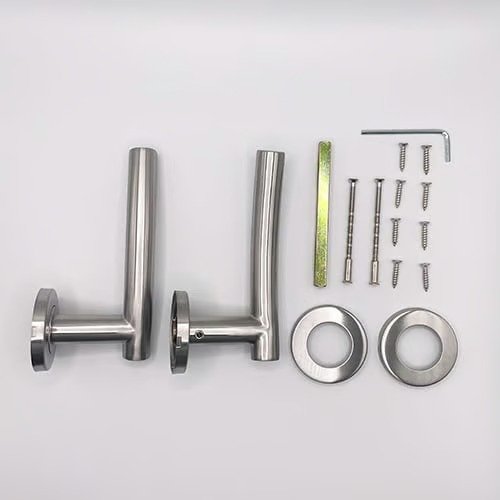

52 x 8mm Concealed Fix Rose (Push on to fix, clips into place)
19mm Diameter Tubular Handle
Sprung Handle Suitable for 33-55mm thick doors
201 Stainless Steel Material
Supplied with M4 bolt through fixings & 20mm Timber Screws
Spindle Supplied
Available in 5 different designs:
Return To Door (Safety)
Straight
Mitred

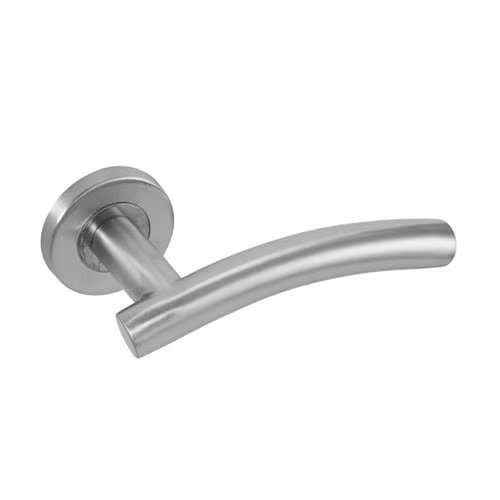

Arched
T Bar
| Code |
Variation |
Rose Range |
| TSS201RTDSSS |
Return To Door (Safety) |
SSS |
| TSS201STRSSS |
Straight |
SSS |
| TSS201MITRSSS |
Mitred |
SSS |
| TSS201ARCHSSS |
Arched |
SSS |
| TSS201TBARSSS |
T Bar |
SSS |
TSS – Stock More For Less
TSS believes that quality doesn’t have to come with a high price tag. TSS to provide high-quality products to the trade that meet specification requirements, all at an affordable price. TSS manufactures its products to high standards to ensure their products are an improvement on your current product choice.

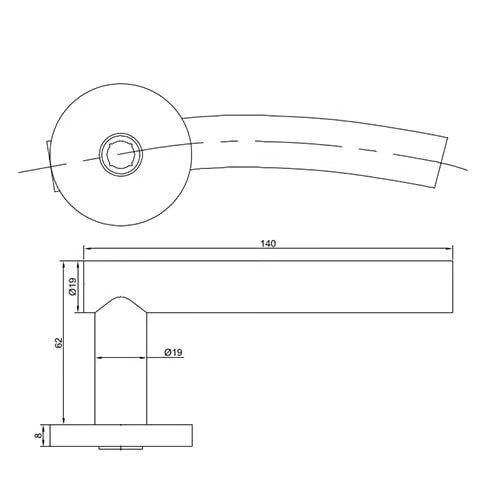

- Handle Diameter: 19mm
- Rose Diameter: 52mm
- Rose Thickness: 8mm
- Bolt Through Fixings Supplied: Yes
- Timber Face Fixings Supplied: Yes
- Spindle Supplied: Yes
- Material: 201 Stainless Steel
- Sprung Handle: Yes
- Fire Rating: BSEN 1623 Fire Tested to 30 & 60 minutes
- Suitable Door Thickness: 33-55mm
