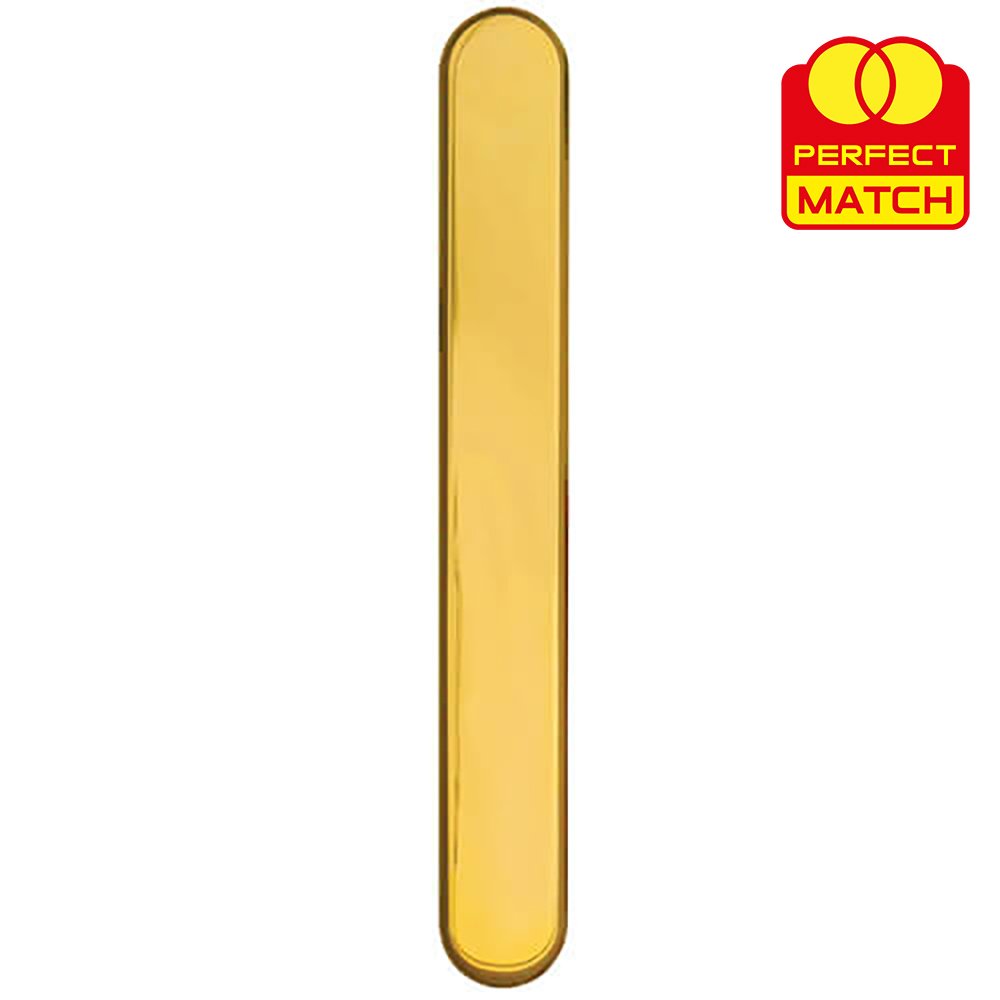

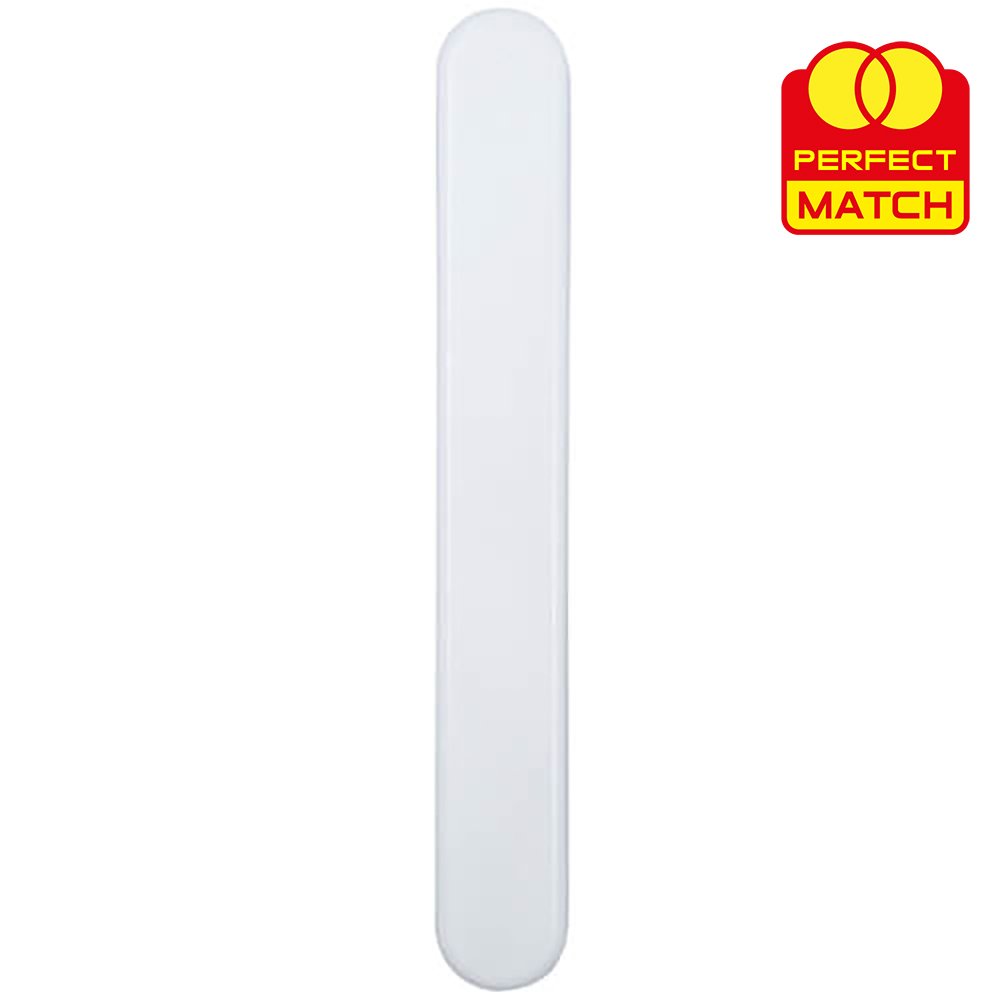

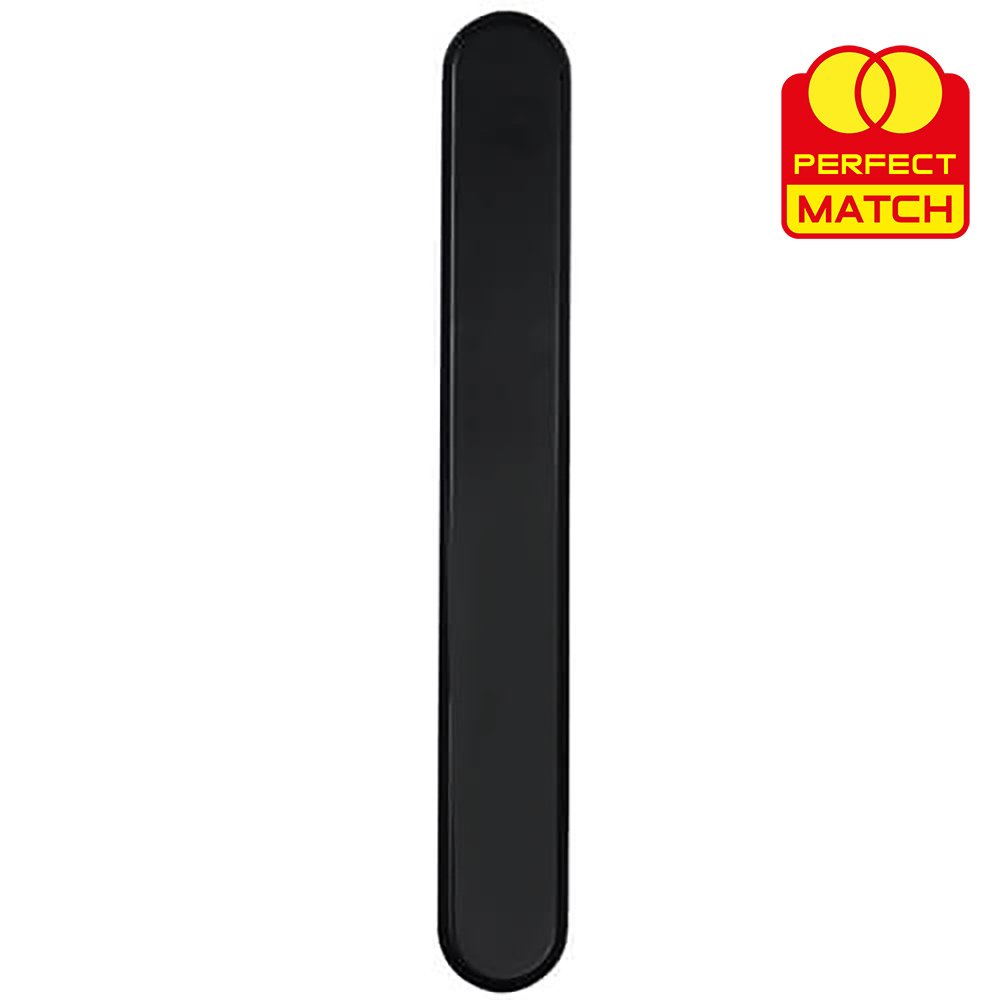

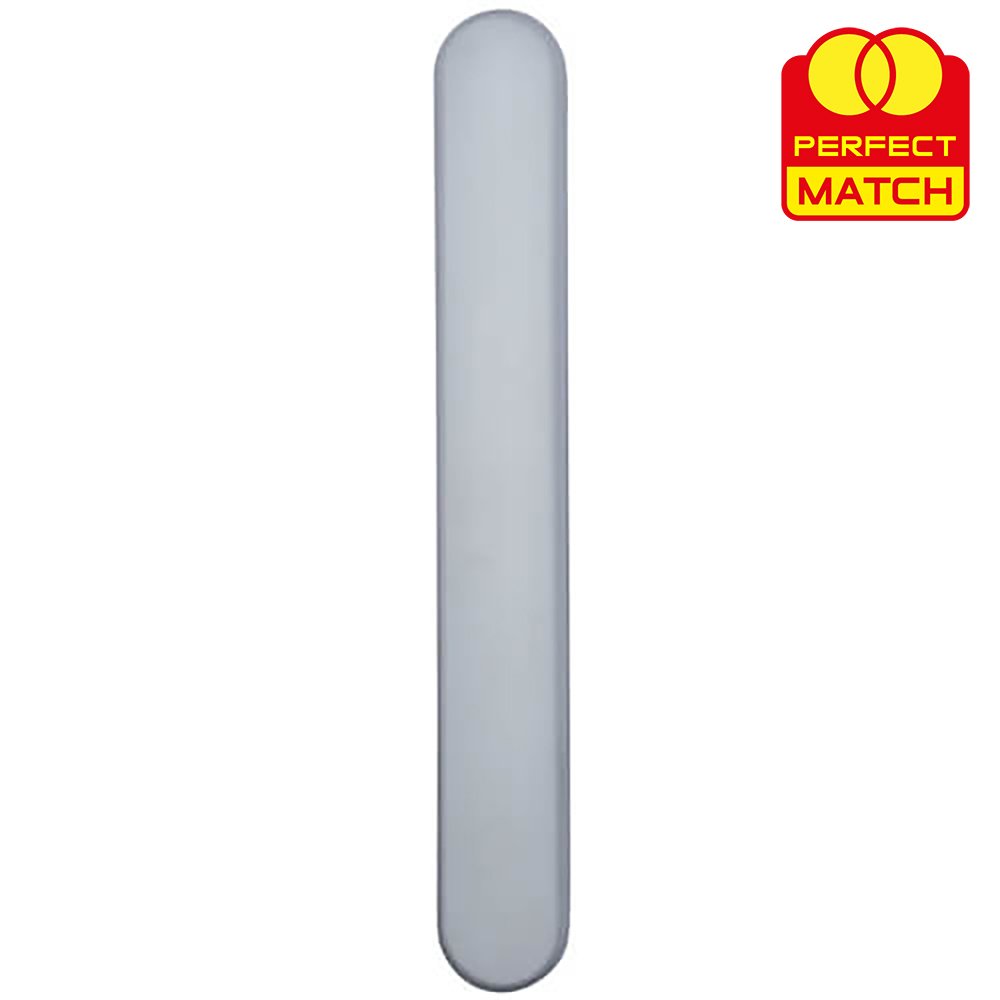

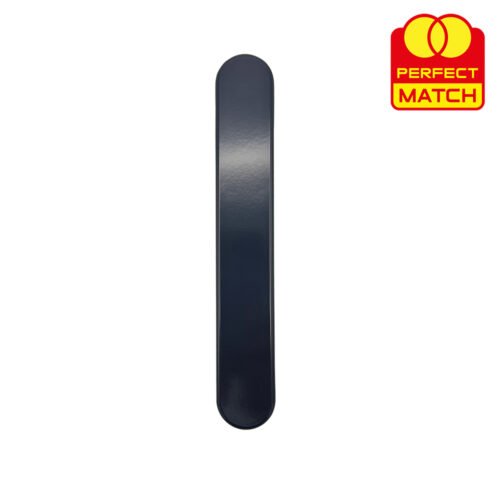

TSS French Door External Blanking Plate 122mm Screw Centres

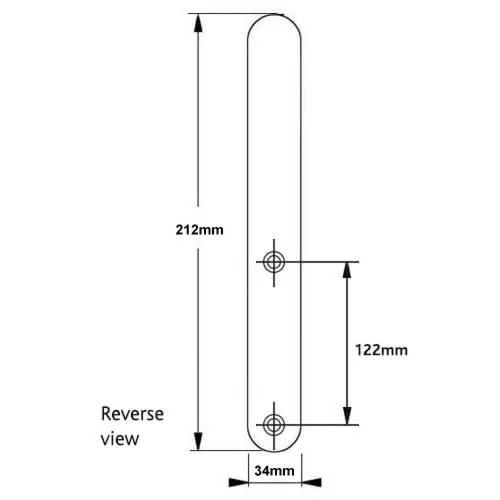

These TSS Multipoint Door Handle exterior-only blanking plates have a backplate measurement of 212mm x 34mm and 122mm Screw Centres, for use with French Doors.
Compatible with the TSS Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 122mm Screw Centres

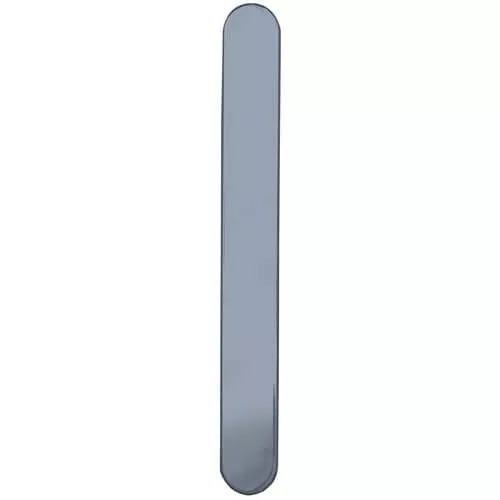

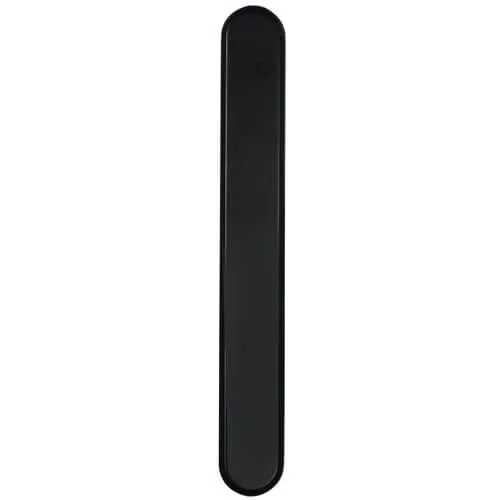

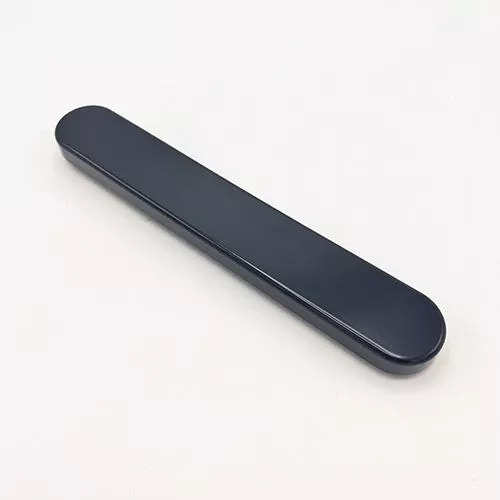

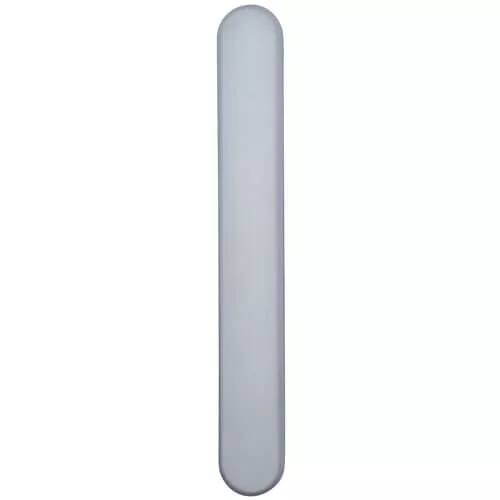

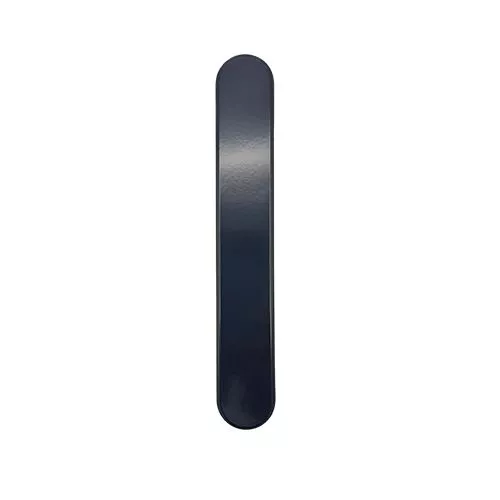

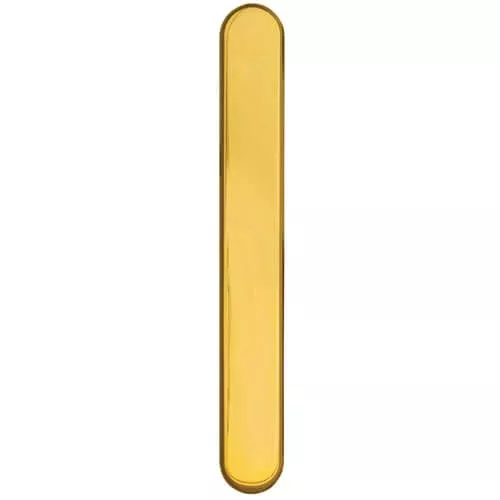

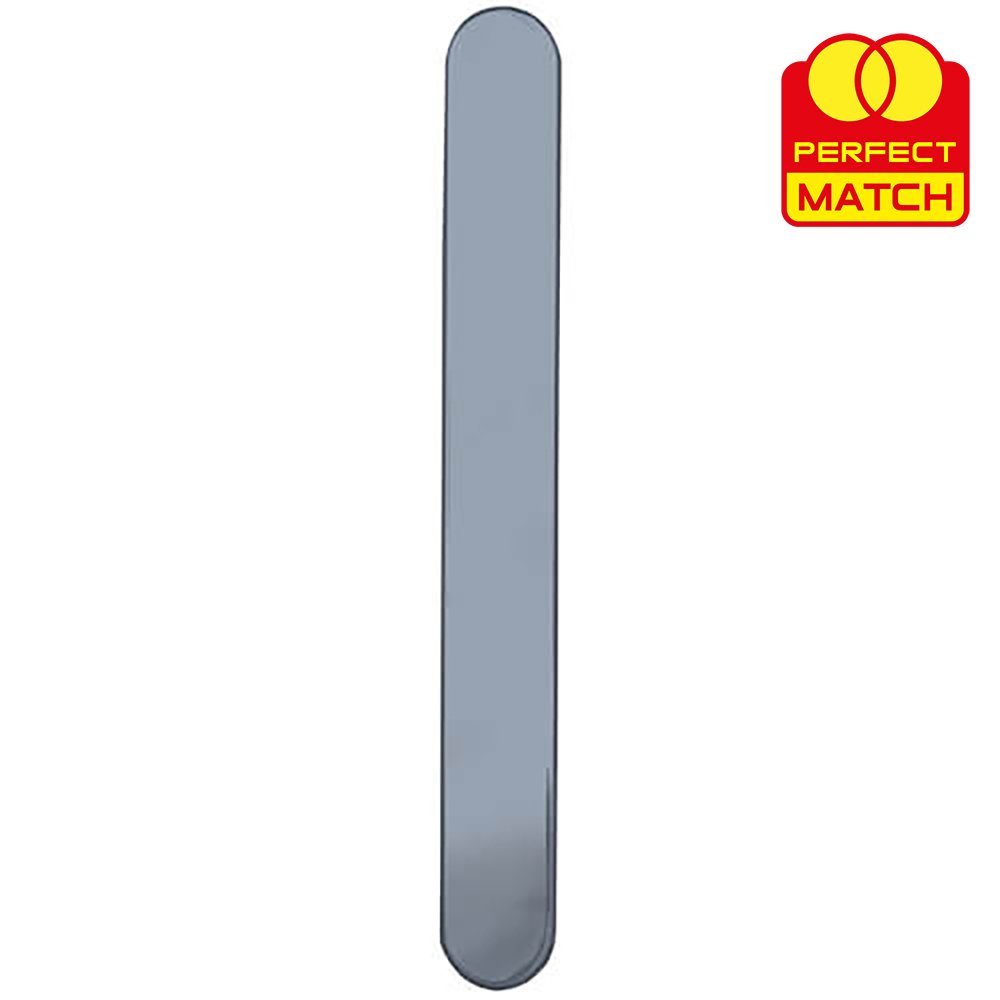

Available in a range of finishes including White, Black, Anthracite Grey, Silver, Polished Brass and Polished Chrome.
The Polished Chrome, Silver and Polished Brass finish has undergone salt-spray testing for over 480 hours.
Supplied in Singles.
Price range: £2.16 through £4.40
- Exterior blanking plate for use with French Doors
- Length: 212mm
- Width: 34mm
- Screw centres: 122mm
- Supplied In Singles
- Supplied Bagged
- Non-handed
