TSS Inline Espags 20mm Backset

£1.66 – £78.04

+ Free Shipping

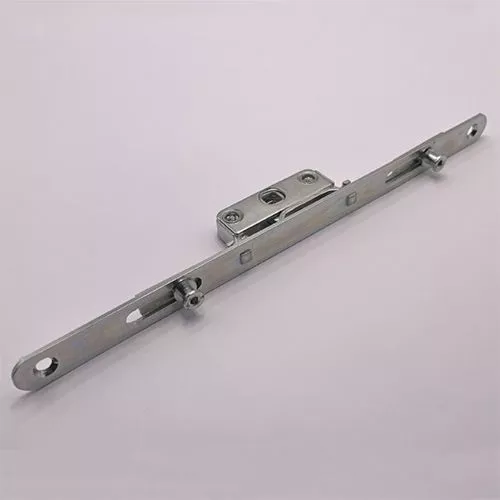

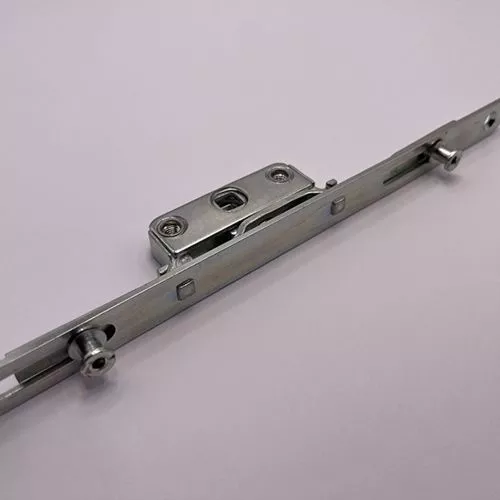

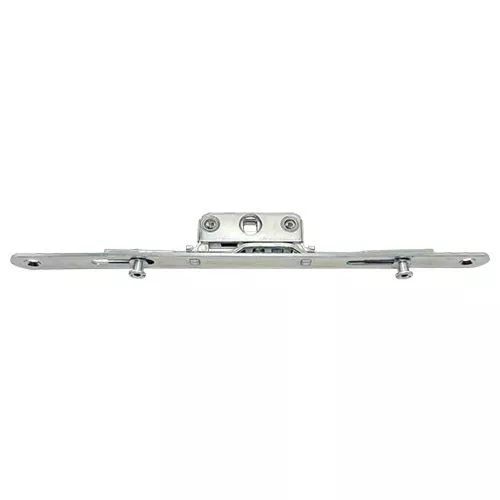

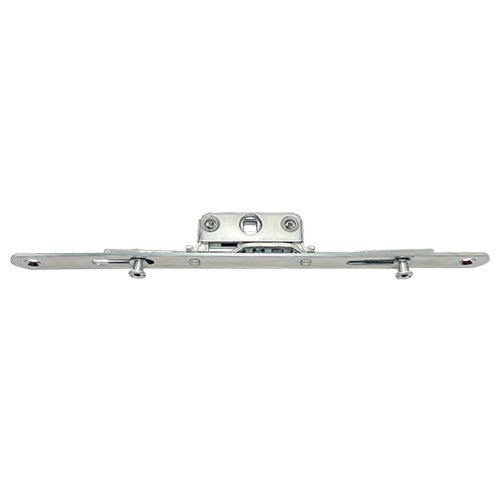

The TSS Inline Window Espagnolette range is a cost effective locking mechanism without compromising on quality.

The TSS Espag Range have a 20mm Backset with a 16mm Faceplate available in a wide range of sizes and a radius faceplate to suit most PVCu and Timber Requirements.

The espagnolette locks are available in 250, 400, 600, 800, 1000 and 1200mm lengths.

250mm to 800mm have 2x Mushroom Bolts
1000mm have 3x Mushroom Bolts
1200mm have 4x Mushroom Bolts

  • 7mm Spindle Drive
  • 20mm Backset

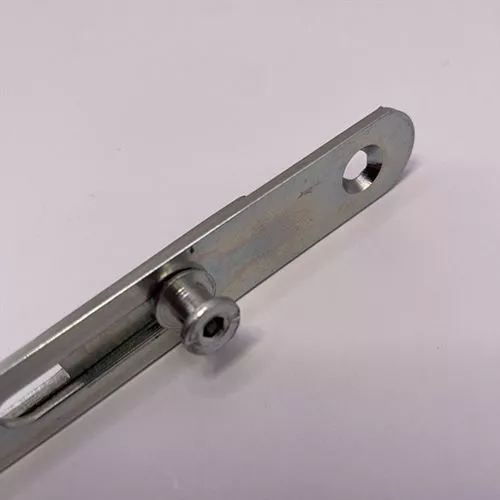

  • 7mm (8mm) Mushroom Height
  • 43mm Fixing Screw Centres (Suits Standard Espag Handles)
  • 240 Hours Neutral Salt Spray Corrosion Performance

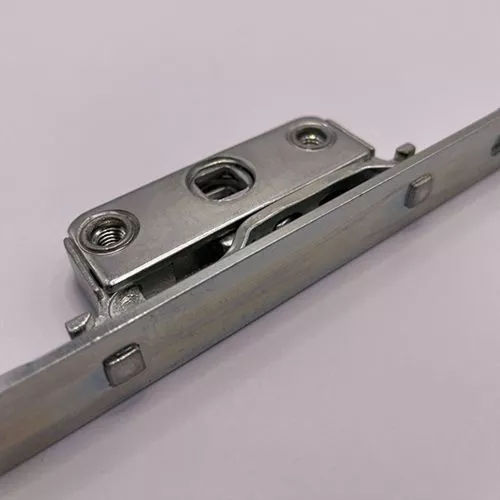

  • Minimum 40Nm Gearbox Torque Resistance
  • Sold in Singles or Trade Packs of 20x

Also available in 22mm Backset: see SKUs starting with TSSESP22

SKU: N/A Categories: , ,
Guaranteed Safe Checkout
  • Lift handle to engage locking points
  • Various sizes available
    Suitable for use with inline, left or right handed Espag Handles
  • Backset: 20mm
  • 7mm Spindle Drive
  • 7mm (8mm) Mushroom Height
  • 43mm Fixing Screw Centres (Suits Standard Espag Handles)
  • 240 Hours Neutral Salt Spray Corrosion Performance
  • Minimum 40Nm Gearbox Torque Resistance
  • Sold in Singles (loose) or Trade Packs of 20x

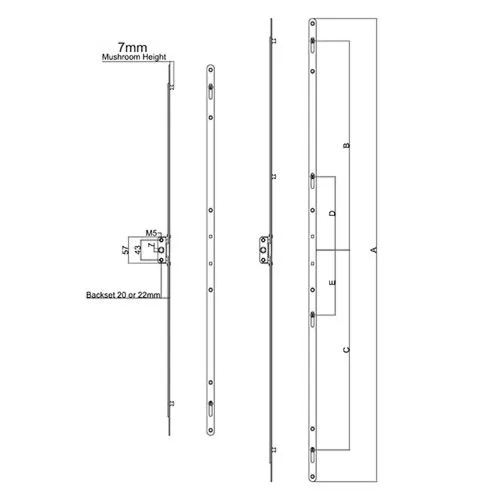

Mushroom Positions: Dimensions can be found in our line drawings images.

Length (Dim A) No Of Mushrooms Distance Between Outer Mushrooms Dimension B Dimension C Dimension D Dimension E
250mm 2 140mm 80mm 60mm N/A N/A
400mm 2 290mm 155mm 135mm N/A N/A
600mm 2 490mm 255mm 235mm N/A N/A
800mm 2 690mm 355mm 335mm N/A N/A
1000mm 3 890mm 455mm 435mm 155mm N/A
1200mm 4 1090mm 555mm 535mm 155mm 135mm
Length

1000mm, 1200mm, 250mm, 400mm, 600mm, 800mm
Packaging

Pack of 20, Single
