TSS Retro Fit British Standard 5 Lever Mortice Deadlock
This British Standard TSS 5 lever mortice deadlock has been designed with the same dimensions as classic mortice dead locks with a 40mm backset. These TSS mortice dead locks meet the requirements of British Standard BS3621:2007.
£21.54
This British Standard TSS 5 lever mortice deadlock has been designed with the same dimensions as classic mortice dead locks with a 40mm backset.
These TSS mortice dead locks meet the requirements of British Standard BS3621:2007. To meet this standard, products undergo rigorous testing. Featuring 5 levers, anti-drill and anti-saw features, these are a high quality and high security mortice lock.

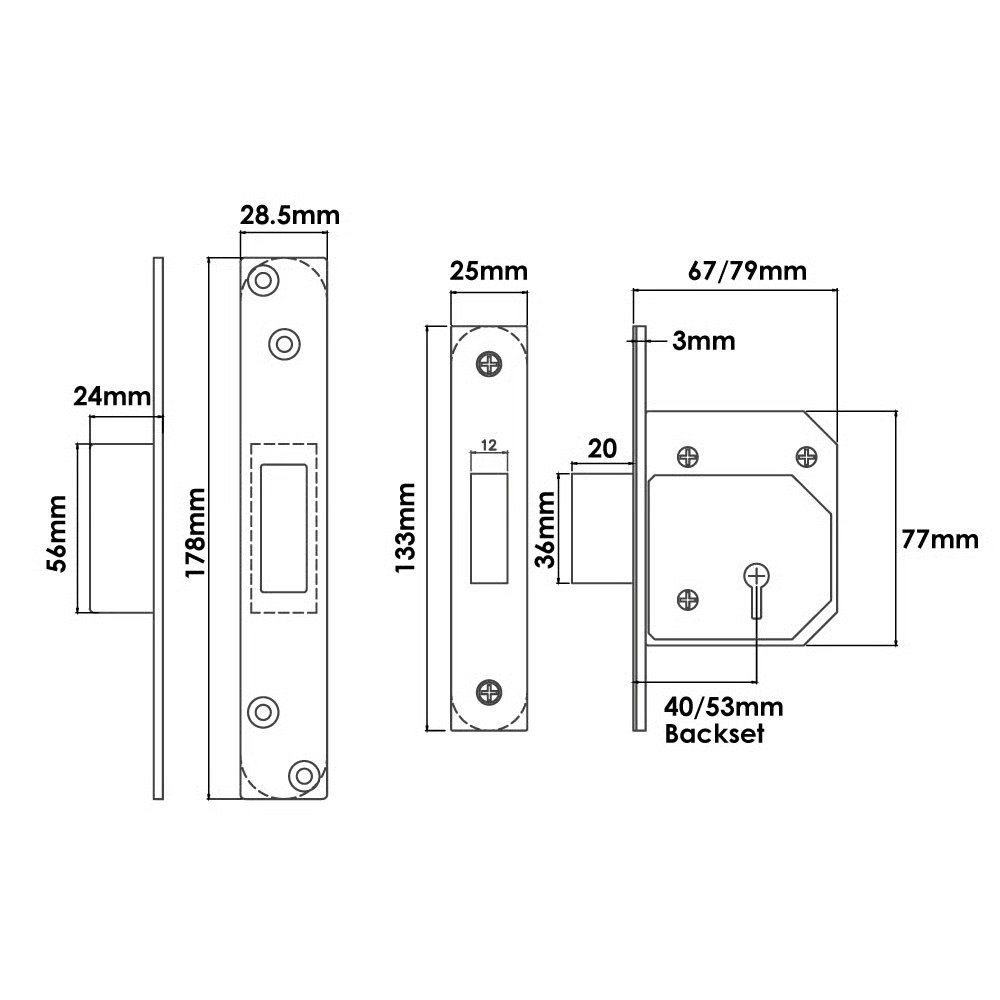

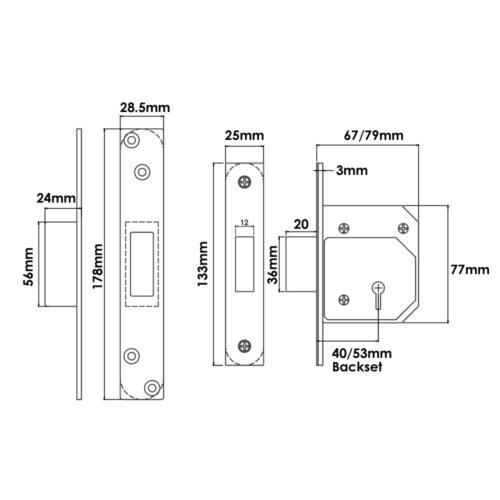

These locks feature a blue lock case but they have unique measurements that identify them from other mortice locks. While the case width features standard 67mm (2.5″) and 79mm (3″) sizes, the backset measures just 40mm on the 67mm width case and 53mm on the 79mm width case. Please refer to the line drawing for details.
To meet the requirements of British Standard BS3621, the deadbolt throws at least 20mm from the body of the lock to ensure positive deadlocking and additional resistance against attack. The deadbolt also has anti-saw features.

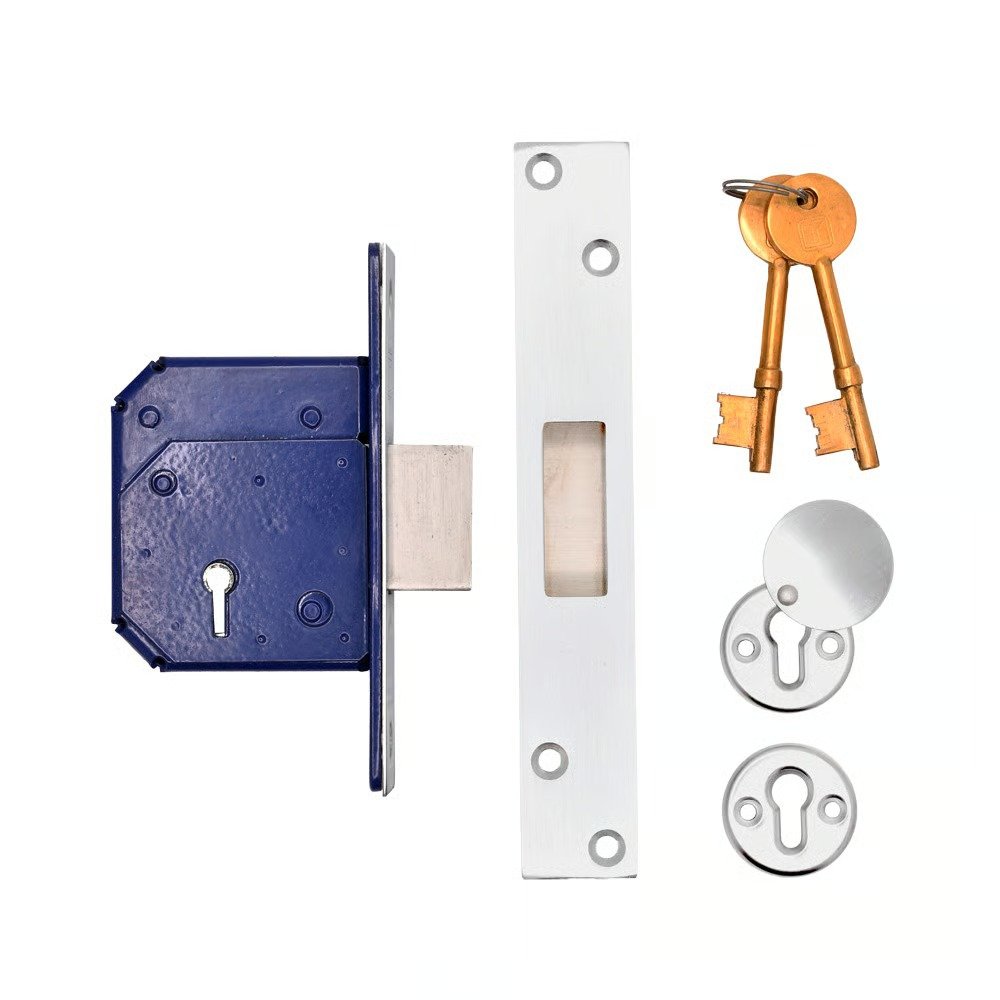

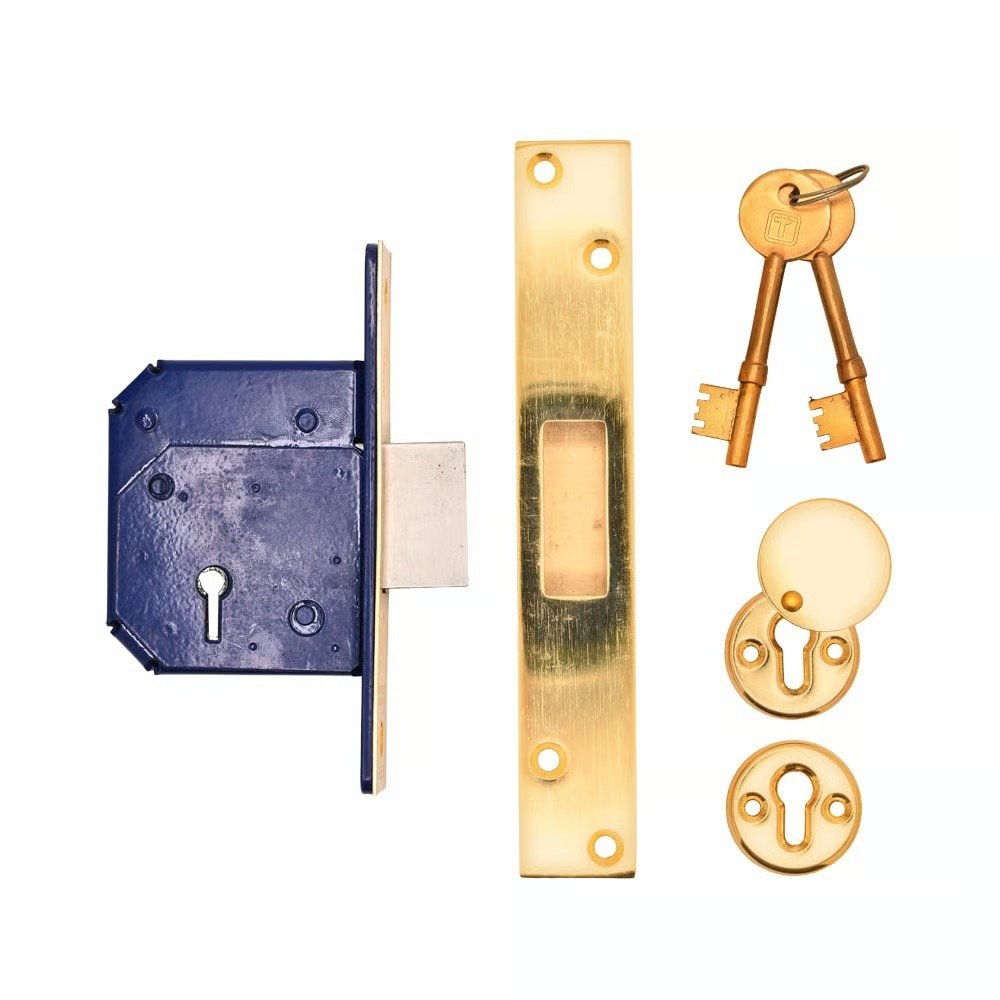

Supplied with:
2x Keys
2x Escutcheons
Fixings
Keep/Strike Plate
For additional keys use code – TSSBSRETKB
TSS – Stock More For Less
TSS believes that quality doesn’t have to come with a high price tag. TSS provides high-quality products to the trade that meet specification requirements, all at an affordable price. TSS manufactures its products to high standards to ensure their products are an improvement on your current product choice.
Product FAQs
How far does the deadbolt throw?
To meet the requirements of British Standard BS3621, the deadbolt throws at least 20mm from the body of the lock to ensure positive deadlocking and additional resistance against attack. The deadbolt also has anti saw features.
What is the operation?
The deadbolt can be locked and unlocked from either side by use of the key.
What is supplied with this item?
This lock is supplied with 2 key hole escutcheons, in a matching finish to the lock for both the internal and external sides of the door. It also comes with a security striking box (to meet the requirements of BS3621) in a matching finish to the lock faceplate.
What door size does this suit?
Suitable for use on doors up to 54mm thick. The thickness of the door is determined by the length of the keys.
How many keys are supplied?
Supplied with 2 brass keys as standard. We can cut additional keys for this lock.
Are these lever mortice locks handed?
These locks are not handed and can be used on doors hinged on the left or right, which open inwards or outwards.
Do these meet insurance company requirements?
Many insurance companies insist that locks fitted to external doors comply with BS3621 or BS8621. Your client should always check with their insurance company to be sure. These locks meet the requirements of BS3621 and you can find the BSI kitemark on the faceplate.
Can these locks be keyed alike?
No
| Case Width | 2.5 inch/ 67mm, 3.0 inch/79mm |
|---|---|
| Backset | 40mm, 53mm |
| Finish | Brass, Satin Chrome |
