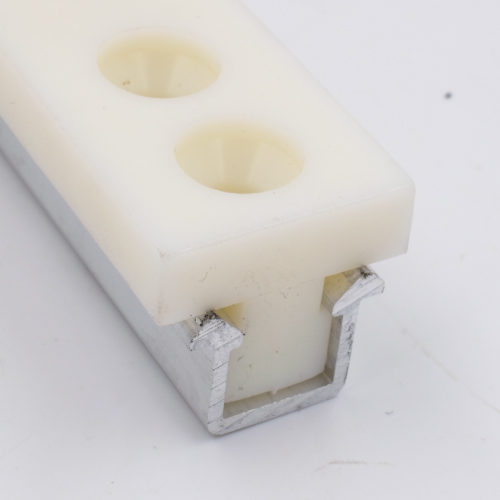

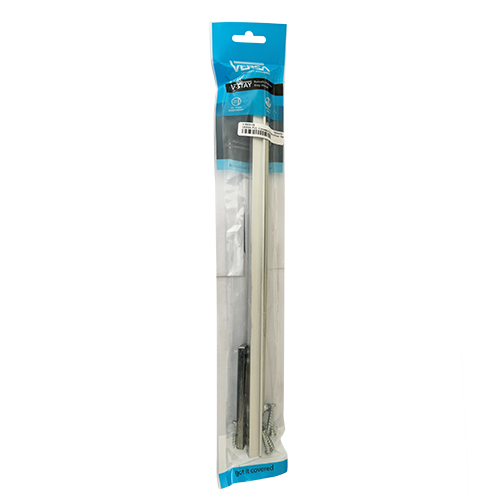

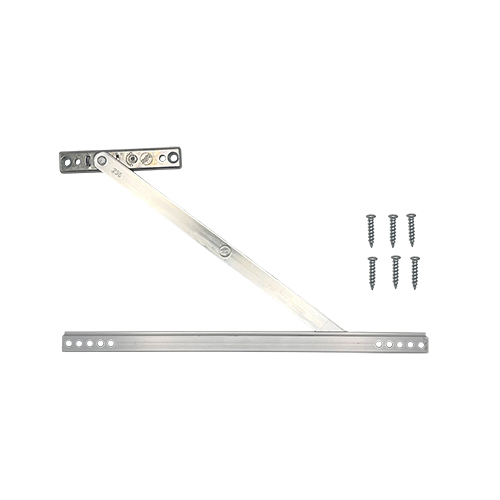

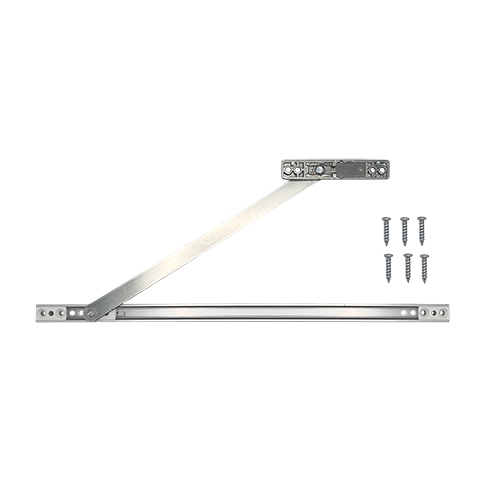

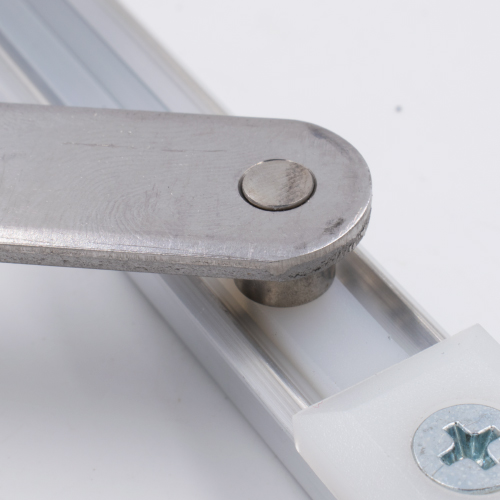

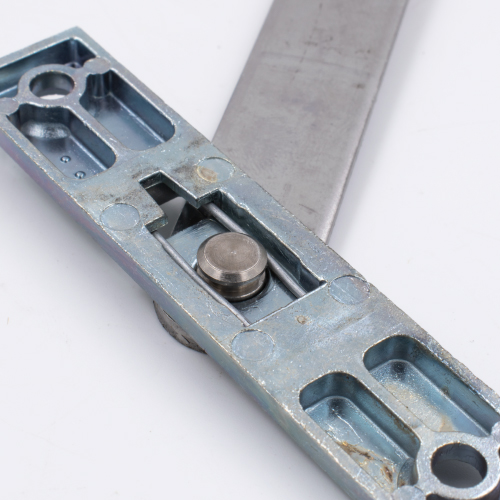

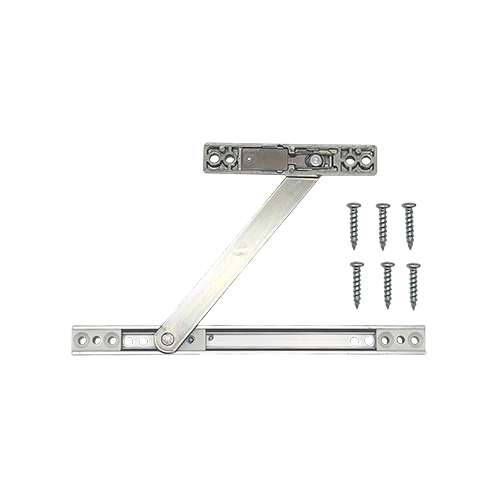

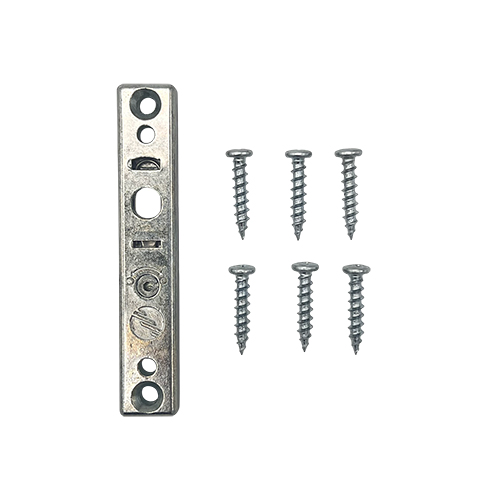

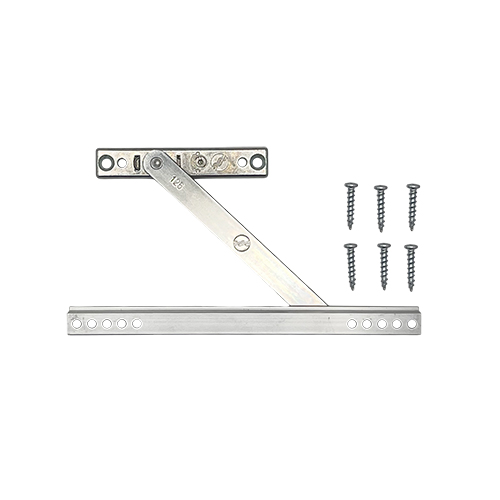

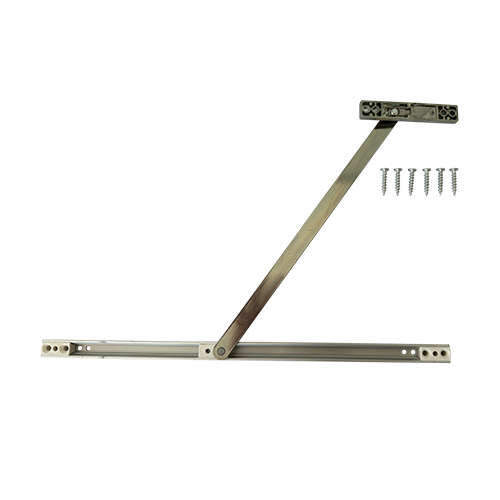

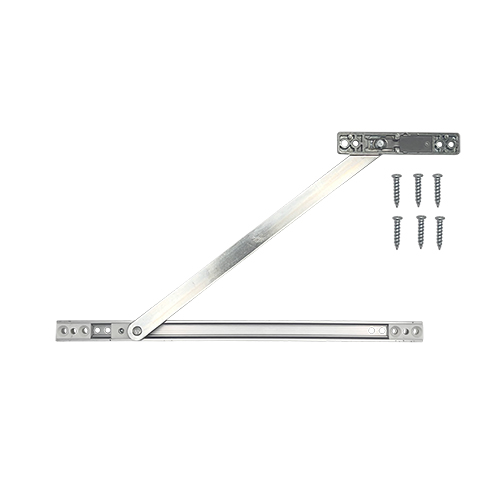

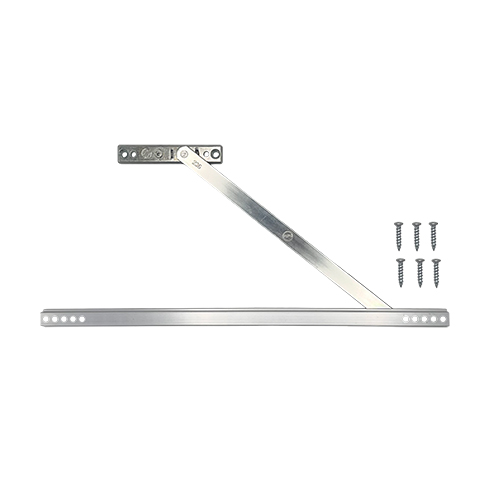

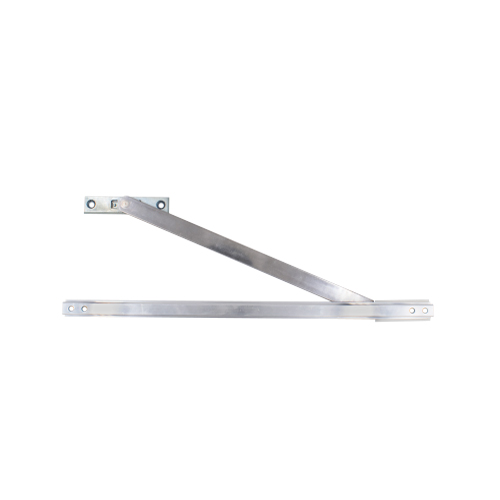

VERSA Concealed Door/Window Restrictor
A door restrictor, which features an adjustable stop position & friction, creating an opening angle between 90° and 125°
Prevents slamming or swinging of door.
Designed to suit aluminium, UPVC and timber doors.
- Length: 300mm
- Width: 15mm
Price range: £1.91 through £8.47
