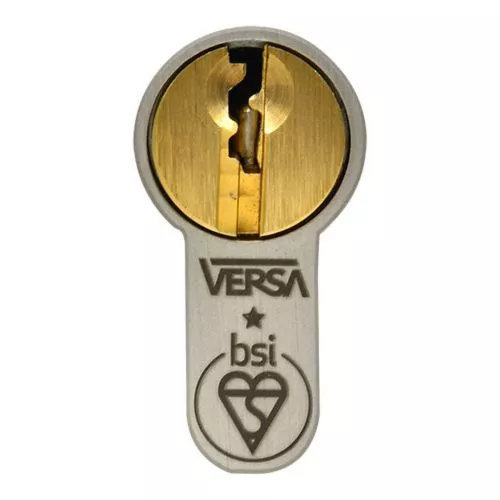

This is the VERSA 1* Euro cylinder.

A quality British standard, TS007 and SBD tested and approved cylinder, designed with sacrificial break points on both sides to limit the amount of stock you need to carry around topped with the all-important anti-bump feature. This cylinder has a fire rating of 30-60 minutes and is qualified for protecting Timber doors against EN1634-1:2014+A1:2018.

The VERSA 1* boasts Secured by Design, British Kitemarked TS007:2014 +A2: 2018 1 Star security and British Standards BS EN1303:2015

You no longer need to stock both brass and satin for insurance-approved cylinders as the VERSA 1* comes with its signature dual finish – a nickel plate body and a satin brass inner core! A remedy proven to save money by limiting the stock you need to carry and it’s also supplied with 5 keys.

This 1* cylinder has been tested to at least 100,000 cycles, has 547 Effective differs and has a 10-year mechanical guarantee. This is a Patented design until at least 2036!

The doubles have sacrificial break points on both sides for uneven sizes, half euros come with an adjustable cam, the thumb turns have our popular peanut knob design and all locks come with a 50mm retaining screw but longer screws are available separately if needed.

Guaranteed Safe Checkout
  • 6 pins
  • Supplied with 5 keys as standard
  • Dual finish
  • Anti-pick
  • Anti-drill
  • Sacrificial break points
  • Anti-bump
  • Tested to 100,000 cycles
  • 10 year mechanical Guarantee
  • British Kitemarked TS007:2014 +A2: 2018 1 Star security
  • British Standards BS EN1303:2015
  • Secured by Design
  • 108,547 Effective differs
  • Manufactured from Brass
  • Meets requirements of 30 and 60 minute Timber doors against EN1634-1:2014+A1:2018
  • Patent protected design until 2036
  • Adjustable cam available on single cylinders
  • Complete with 50mm retaining screw but have the option to purchase a 70mm version
  • EPD compliant
Classification overview Available classifications Achieved classification Description
Category of use – Key strength 1 1 Key exceeds applied torque of 2.5 Nm, then has to operate the cylinder with a torque not exceeding 1.5 Nm
Durability 4-6 6 100,000 cycles
Door mass 0 0 No requirement
Fire resistance 0, A-B B Suitable for 30 and 60 timber doors against EN1634-1: 2014+A2:2018 (Assessment report WF148484A)
Safety 0 0 No requirement
Corrosion resistance & temperature 0-1 C Conforms to grade 3 of EN1670 (96 hours -25°C and +65°C), then has to operate the cylinder with a torque not exceeding 1.5 Nm
Key related security 1-6 6 Over 100,000 differs (108,547 differs available)
Attack resistance 0, A-D D Resistance drilling – Minimum: 5/10 minutes, Resistance attack by chisel: 40 quantity
Size

30/10, 35/10, 40/10, 45/10

Length

40mm, 45mm, 50mm, 55mm
