VERSA Lite Latch, 3 Hook, Lift Lever Repair Multipoint Door Lock

£50.73

+ Free Shipping

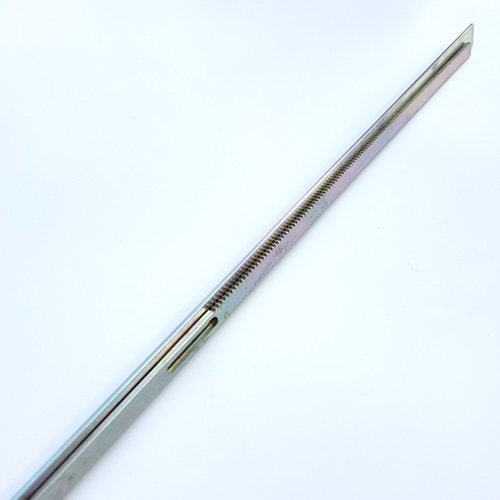

The VERSA LITE multipoint lock is a UPVC repair lock which comes in 3 pieces. A centre section with a faceplate adapted to receive the top and bottom extension pieces, The extension pieces each have 300mm of serrated teeth meaning they can be cropped to adjust the hook centres between 1033mm – 1492mm.

The hook cases on this versatile lock are small measuring 55mm in height and just 25mm in depth, this means you don’t need to chop out customers’ doors onsite.

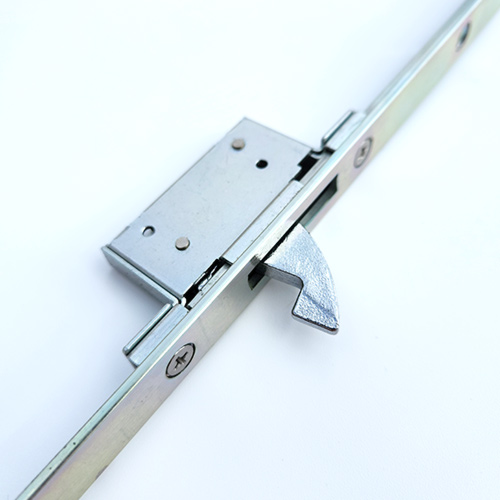

This lock comes with 3 hooks. 1 on each extension piece and another on the lock case for greater security *Note hooks will fit in the same keeps as deadbolts so if you want to use the existing keeps you can!

This product comes with 2 hook keeps and a centre keep which are both easily and fully adjustable to suit any profile – no packers needed.

The VLITE MPL is available in 2 backsets either with a split spindle or double. 35/92, 35/92/62, 45/92,45/92/62

The lock also comes with cover plates for a neat finish and a generous amount of repair screws.

Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace the screw.

VERSA products are designed to allow you to confidently complete repairs in one visit. Our products are retrofit solutions that provide a number of options to save you time and help you complete the job fast.

We provide a range of versatile UPVC door and window repair products that can be adjusted to the job’s requirements, meaning you can cut costs and reduce stock of specific-sized products.

VERSA products mean you only need to stock one of each of our versatile products to resolve all your emergency replacement jobs.

  • NO MORE RISK of jobs being cancelled while you wait for parts to arrive.
  • NO MORE DIFFICULTY in finding the exact replacement product.
  • NO MORE FILLING UP YOUR VAN with stock you may never use.
Guaranteed Safe Checkout
  • Available in 35mm or 45mm backsets
  • Flat 16mm faceplates with square ends
  • Available as either a single split spindle version or a double spindle version
  • Centres for the split spindle version are 92mm, and centres for the double spindle version are 92mm/62mm

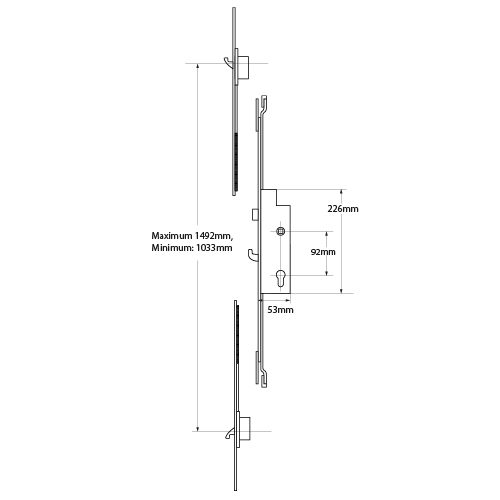

  • Distance between hooks: Maximum 1492mm, Minimum: 1033mm
  • Case Height: 226mm
  • Case Depth: Backset + 16mm
  • Maximum top hook to spindle: 724mm
  • Minimum top hook to spindle: 445mm
  • Maximum bottom hook to spindle: 776mm
  • Minimum bottom hook to spindle: 479mm
  • Non-handed, reversible latch

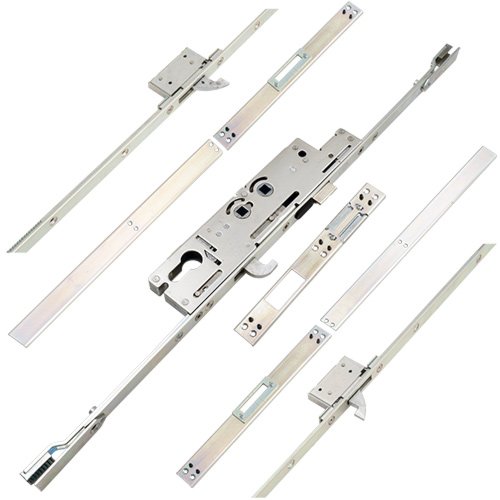

  • Supplied with: Central gearbox section, x2 hook/roller extension pieces, x1 centre keep, x2 Hook keeps
  • Supplied in single tubes.
Backset

35mm, 45mm

Centres PZ

92/62mm, 92mm

Spindle

Double 8mm, Split 8mm
