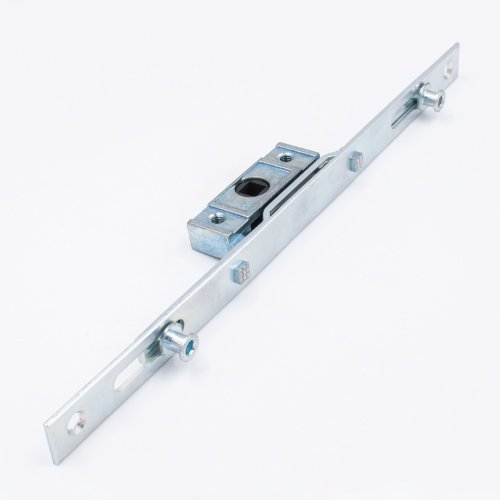

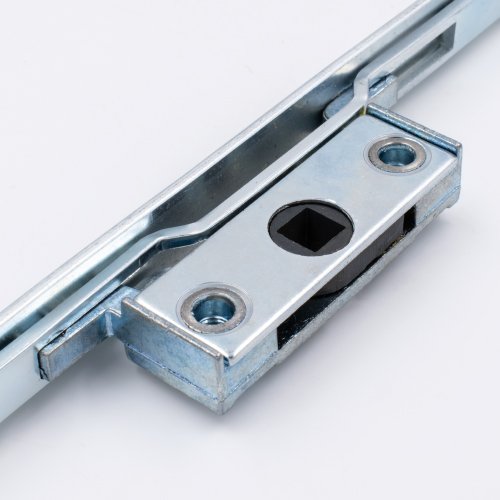

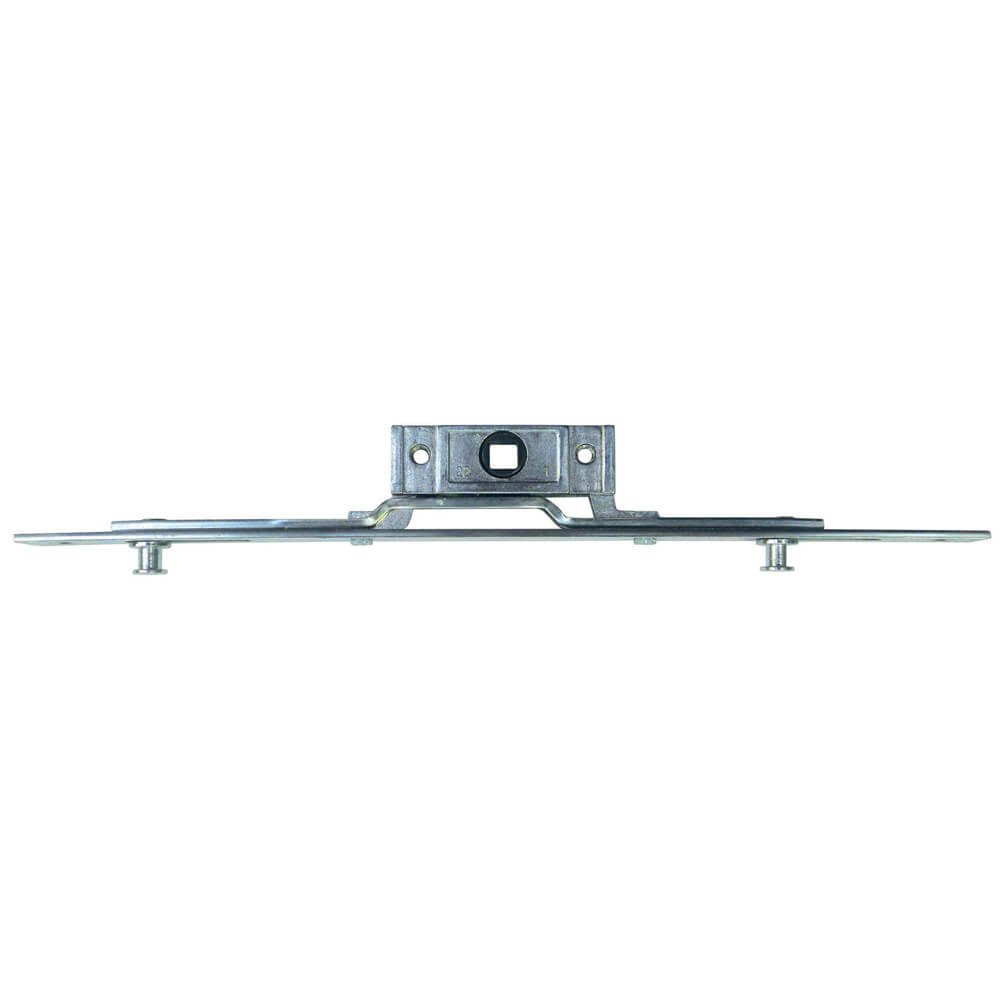

Vitawin Inline Espags 20mm Backset
The Vita Inline Espag range has been designed to meet the requirements of both trade and newbuilds requiring high quality and high performance.
These inline espags are made from high-quality steel and are suitable for use with either inline, left or right handed espag handles.
Vitawin Inline Espags are also available with a 22mm backset.
Price range: £2.40 through £5.18
- Lift handle to engage locking points

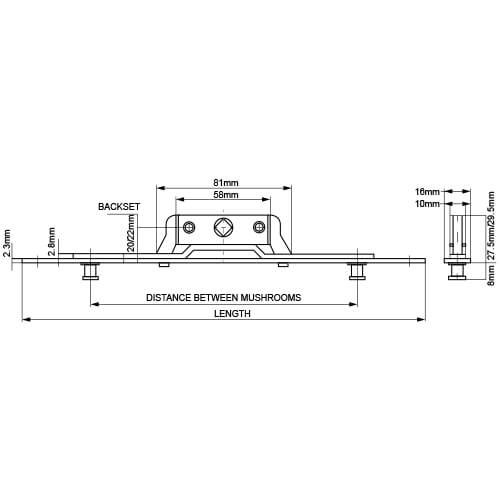

- Various sizes available please refer to table below for assistance
- Suitable for use with either inline or left or right handed espag handles
- Loose
