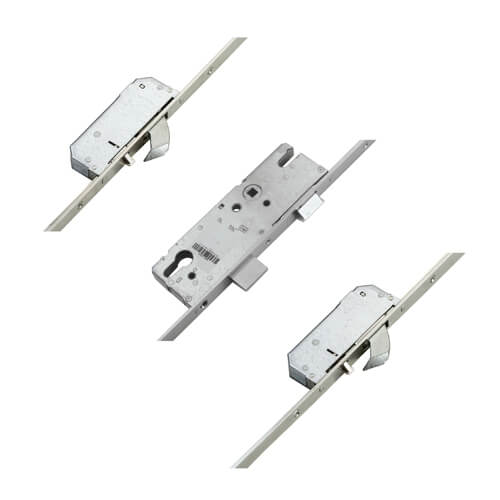

Winkhaus AV2 + Latch Deadbolt 2 Hooks Flat 20mm Faceplate Autolocking Multipoint Door Lock

£165.23 – £172.48

+ Free Shipping

Hooks on this lock are automatically engaged as the door is closed without needing to lift the handle. The handle will retract the hooks from the inside and a further turn of the key deadlocks the door.

To transform this multipoint lock into an electronic locking solution, simply attach the 12V DC Winkhaus AV2 motor (available separately) and connect using the Winkhaus AV2 cable to the wide range of Winkhaus access control products available.

SKU: N/A Categories: , , ,
Guaranteed Safe Checkout

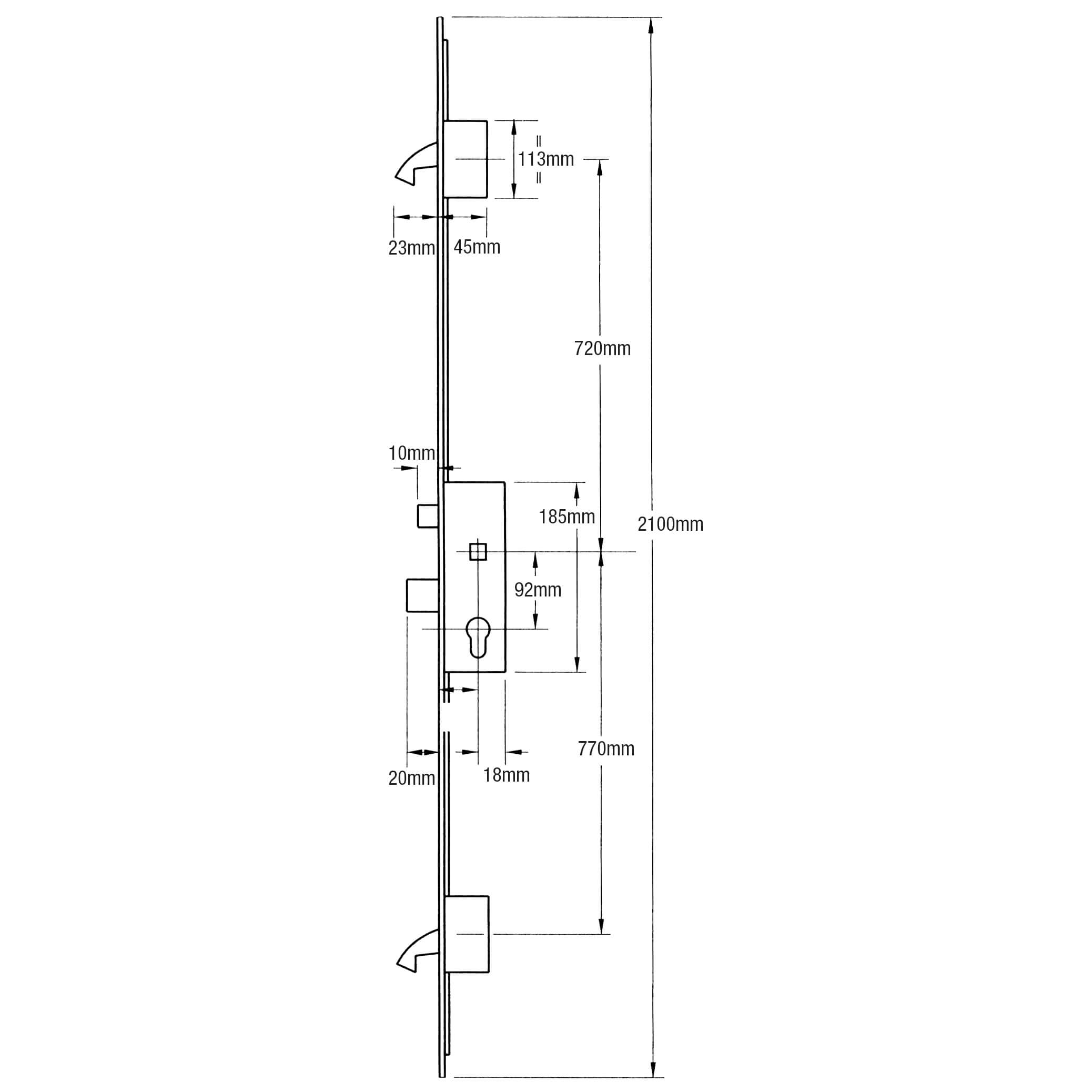

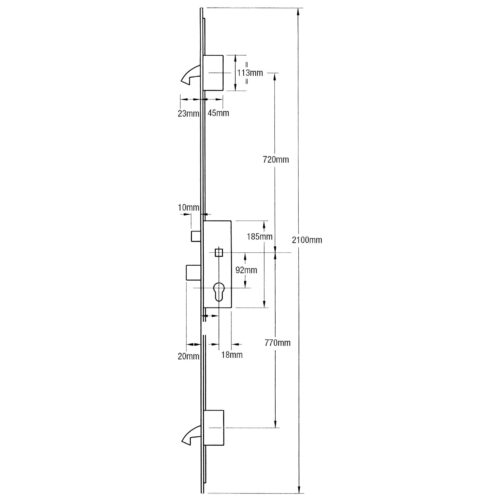

  • Operation: Automatic
  • Backset: 45mm or 55mm
  • Latch Reversal: Yes
  • Centres: 92mm
  • Case Height: 185mm
  • Case Depth: Backset + 18mm
  • Overall Length: 2100mm
  • Motor Power: 12V DC
  • Distance between hooks: 1490mm
Backset

45mm, 55mm
Faceplate

Flat 20mm
Spindle

Single 8mm

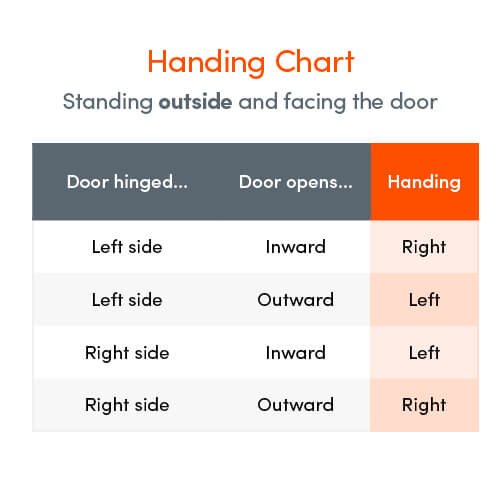

Handing

Left Hand, Right Hand
