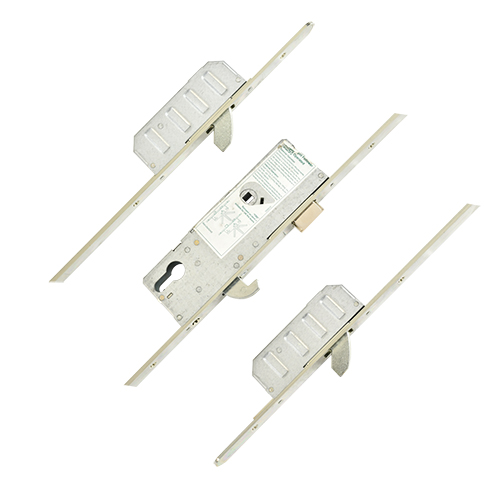

Winkhaus SCOBRA Latch, Hookbolt & 2 Hooks Multipoint Door Lock
This is a unique Winkhaus lock. It is Cobra lock but with a modified gearbox, which features a hook, rather than a deadbolt. It’s not a Scorpion lock, but a one off lock called the “SCOBRA”. The SCOBRA multipoint door lock features 2 hooks and a 20mm radius faceplate.
The lock is only 1562mm long and is predominantly fitted to timber and composite doors.
Meets the requirements and is approved by the police Secured by Design security initiative. These locks feature a 25mm throw tensile “Cobra” steel hook. The tapered design of the hook has the effect of helping the door achieve a higher level of weather performance.
£187.58
- Manufacturer: Winkhaus
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Hooks: 3
- Latch: 1
- Main Gearbox: Latch & hookbolt
- Operation: Select from drop-down
- Spindle: Split 8mm
- Handing: Non handed

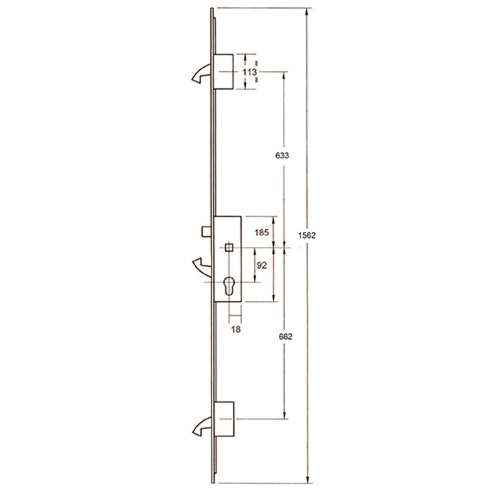

- Distance Between Inner Locking: 1295mm
- Height: 1562mm
- Top Hook to Spindle: 633mm
- Bottom Hook to Spindle: 662mm
- Door Material: UPVC, Aluminium, Timber & Composite
Operation: Lift lever or split spindle nightlatch.
Latch Reversal: Push in the latch and a screw will appear in the back of the lockcase. Undo the screw to remove the latch. Reverse, reinsert and replace screw.
Nightlatch Reversal: The small rectangular slot adjacent to the side of the spindle hole contains a black roll pin. Insert a flat-bladed screwdriver and roll the pin to the opposite side to reverse the function.
Related products
-
Door Locks, Multipoint, Multipoint & UPVC
Avocet Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top roller to spindle = 675mm) – Shootbolt Compatible
Quick View
Door Locks, Multipoint, Multipoint & UPVCAvocet Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top roller to spindle = 675mm) – Shootbolt Compatible
This Avocet multipoint door lock features 2 Rollers, 2 Hooks, 1 Deadbolt & 1 Latch.
The original Avocet 2 hook, 2 roller lock features unique locking positions.
Often known as the silver version and shouldnt be confused with the yellow AVO352HB which has different roller positions.
Avocet multipoint door locks are easily identifiable once they are removed from the door. Faceplates are usually stamped with the Avocet logo, although older locks may have the “WMS” logo stamped. Gearboxes are uniquely shaped, with the cut out extending below the latch, which is unique when identifying multipoint locks.
Avocet multipoint door locks were originally available in a wide range of different configurations featuring hooks, rollers, deadbolts and an Affinity Bastion lock with opposing hooks. Earlier versions of Avocet multipoint locks were made in yellow passivated steel, which have a distinctive brassy colour. Recently, the locks have changed with faceplates made from a stainless steel or a Trivalent silver finish.
When these locks swapped from yellow passivated to silver, the majority of variations were replaced. Notable exceptions include the 2 roller and 2 mushroom lock as well as the shorter version of the 3 deadbolt lock designed for use on caravans. Please contact us if you would like assistance finding the best replacements for these locks.
Also, it’s worth noting some Avocet multipoint door locks feature a “sash lifter” device. This device was designed to help ensure the correct sash to frame alignment but these are no longer available so we would recommend replacing these locks with the standard version.
Most Avocet locks are only available in a 35mm backset, but the Affinity Bastion lock is designed for composite doors and feature a 45mm backset.
Although some original Avocet multipoint 4 roller door locks feature a single spindle and lift lever functionality, all current locks are only available in a double spindle nightlatch configuration. The centres are at 62mm and 92mm, but if the nightlatch functionality is not required, the lock can still be used as a lift lever version using the top spindle.
All Avocet locks which are designed for PVCu with a flat 16mm faceplate have the ability to accept shootbolts.
Avocet gearboxes measure 218mm high x backset + 15mm. It’s the large cut out in the top corner, that extends below the latch which makes them unique. This feature can assist with the fitment of handles as the screws are located above the lever.
Avocet gearboxes feature a latch that is 29mm high and a deadbolt that is 34mm high with a distance of 82mm between the top of the deadbolt and the bottom of the latch.
These gearboxes are not attached to the strip using conventional screws or rivets. Instead, the gearboxes are held by arms which connect using circlips. While it’s possible to remove a gearbox from a full Avocet lock, we would advise replacing the full unit. Also, it’s worth noting the design of the arms have changed over time and older gearboxes have a flat clip. Newer versions have a slightly curved connecting arm located lower down making gearbox swaps with newer for older versions impossible.
When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.
Avocet hooks throw in opposing directions, with the top hook going upwards, and the bottom hook throwing downwards. Hook boxes are 123mm high and doors that are normally prepared to 150mm will accept the hook case.
Avocet deadbolts feature a 20mm throw made from nickel plated brass. The deadbolt gearboxes feature a distinctive chamfered design, in contrast to the square design of Avocet hook cases.
Rollers are manufactured from nickel plated brass. They are used for compression, to pull the door against the frame, to help prevent dust or water ingress. They do little for security, but they also have the added benefit of helping to prevent the door from becoming warped as it is supported across its full height. This is dependent on the rollers being engaged into their keeps.
Operation:Â Double Spindle
To lock the door
1. On closing the door, the latch is automatically engaged.
2. Lift the handle up to engage the locking points.
3. Lock the system by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points.
3. A further quarter turn of the key will retract the latch.
- Corrosion resistance: BSEN1670:2007 Grade 4
- Tested to 100,000 cycles.
We stock a range of associated products for Avocet multipoint door locks, including keeps, spindles, handles and accessories.
Latch Reversal:Â Depending on date of manufacture either – Undo hexagonal screw on side of lock case to remove latch. Reverse, reinsert and replace screw. Or undo screw in centre of latch, reverse, reinsert and replace screw.
You may find this lock used as an UPVC door lock or an aluminium door lock.
SKU: AVO352H2RSS -
Door Locks, Multipoint, Multipoint & UPVC
Roto Elite Heritage Latch Deadbolt 3 Deadlatches Auto Locking Multipoint Door Lock
Quick View
Door Locks, Multipoint, Multipoint & UPVCRoto Elite Heritage Latch Deadbolt 3 Deadlatches Auto Locking Multipoint Door Lock
This Elite Auto multipoint door lock features 1 Deadbolt, 1 Latch, 3 Autolatches.
Elite automatic multipoint door locks cover a wide range of different applications. They feature a unique trigger which, when activated by closing the door, throws auto deadlatches to eliminate the need to lift the handle when locking the door. They are available in standard and “Heritage” (where the gearbox is higher up the door) configurations.
As these locks engage without the need to lift the lever, as would be necessary on a traditional multipoint lock, they are often fitted to modern timber and composite doors with pull handles where the euro hole is covered by an escutcheon. These locks are made in Europe and feature a “Silbear” coating which offers 480 hours salt spray protection.
Identifying an Elite lock starts with the faceplate, which should be stamped with an Elite logo. The gearboxes feature a slot and a small hole below the slot, just above the top spindle, which is a piercing for bolt through handles.
Automatic locking multipoint locks have the added benefit of always having the locking points engaged at the top and bottom as well as the the middle of the lock when the door is closed. This differs to a traditional multipoint lock, where the user may not always throw the locking points, leaving the door closed only by the central latch. As the door is not held against the frame across its entire length, this can lead to doors becoming bowed or warped over time as they are exposed to the elements. Automatic locking multipoint locks help alleviate this issue as when closed, the door will be automatically held against the frame in the middle, top and bottom of the door. This helps to ensure the door stays straight and true.
If these locks look familiar, that’s because they are. Elite took over the manufacturing of these locks from Roto-Frank when they discontinued the range. They use the same tooling, with the exception of the new Silbear coating, they are made to the same specification as the original locks. You may recognise them from our catalogues as the MVD range or “Roto mark 2” locks. Gearboxes cannot be changed with the original locks but they do offer a relatively simple complete lock swap.
Elite automatic gearboxes are available as a 35mm or 45mm backset, single spindle lock. There is no need for a double spindle version as that feature is not used on an automatic locking gearbox. The same gearbox is used for both standard and heritage versions of the Elite automatic gearbox.
Elite gearboxes measure 200mm high x backset + 19mm. Be sure to account for 2mm for the faceplate when measuring the backset.
Gearbox deadbolts project 20mm and are 32mm high. The latch is 30mm high and projects 10mm. The distance between the bottom of the latch and the top of the deadbolt is 63mm.
Centres are positioned at 62mm and 92mm with the top spindle being 122mm from the bottom of the case. Single spindle locks have a round hole where the second spindle would usually be located. The gearbox is pierced to accept a bolt through fixing 19mm from the top spindle, and the slot above for fixings is 42mm above the spindle.
Elite auto latches feature an activation snib, that when triggered by the door hitting the keep, fire latches to secure the door. The cases for these auto latches measure 145mm high h x 45mm wide.
The same auto latches are used on both the flat and radius faceplate locks. Heritage versions of the Elite automatic lock feature a 3rd auto latch where the main gearbox would be positioned on a standard lock.
SKU: n/a -
Door Locks, Multipoint, Multipoint & UPVC
Accado Style Latch Deadbolt 4 Roller Multipoint Door Lock
Quick View
Door Locks, Multipoint, Multipoint & UPVCAccado Style Latch Deadbolt 4 Roller Multipoint Door Lock
This Accado Style multipoint door lock features 4 Rollers, 1 Deadbolt & 1 Latch.
Accado Style multipoint door locks are made by Turkish manufacturer, Accado. They were imported into the UK and fitted onto PVCu doors sold by B&Q, although it has been some time since B&Q have sold doors with these locks fitted.
While this lock is relatively obscure, there are many doors with this lock in use. It’s relatively easy to identify by its 85mm PZ (centres) measurement and 4 roller configuration. It also features a latch reversal instruction sticker on the side of the lock case and some variations have Accado stamped on the faceplate.
Multipoint locks with 85mm PZ are rare in the UK but are common in Europe and the rest of the world. The 4 roller configuration of this lock makes it a useful product to replace an existing 85mm centre locks, where the centres cannot be changed, even if they are not Accado branded.
Sold in Turkey with 25mm, 28mm and 35mm backsets, this lock was fitted to PVCu doors in the UK with a 35mm backset and 16mm faceplate. The rollers are positioned at 308mm and 824mm above the spindle and 300mm and 806mm below the spindle.
Unfortunately, handles are harder to source, so if the handles are damaged on your door, we would recommend swapping the lock for a 92mm PZ version, repositioning the roller keeps and fitting new handles.
Accado gearboxes are distinctive because of their 85mm centre measurement. Newer versions have the top corner of the gearbox cut out with a groove for handle fixings, whereas older versions feature a curved top. Also, the older versions are no longer available but they can be interchanged with the new gearbox.
Certain versions of this gearbox also feature a black plastic cover on one side (with metal on the other side).
Accado Style gearboxes measure 225mm high by 51mm wide. They were only available with a 35mm backset when fitted to doors sold by B&Q. The deadbolt is 31mm high, projecting out 13mm when thrown, and the latch is 25mm high.
These gearboxes are only available with lift lever functionality.
Accado Style locks feature traditional, round rollers with minimal adjustability.
Operation:Â Lift Lever
To lock the door
1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.
We stock a range of associated products for Accado Style multipoint door locks, including keeps, spindles, handles and accessories.
To reverse the latch on this lock:
1. Locate the small screw on the reverse side of the lock, which is just behind the latch.
2. Unscrew this screw until you feel the latch move.
3. Push the latch back into the e body of the lock.
4. Rotate the latch and allow it to spring back to its normal position.
5. Re-tighten the screw to complete the reversal.
You may find this lock used as an UPVC door lock or an aluminium door lock.
SKU: ACC4R35
