Yale Doormaster Gearbox Kit

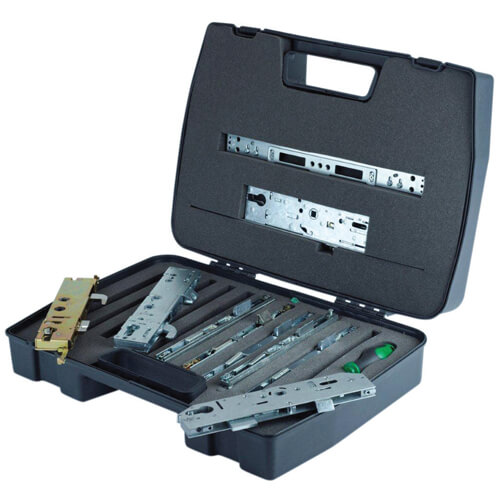

This Doormaster gearbox kit is a set of eight of the most popular gearboxes, one overnight lock, one adjustable keep and one torx screwdriver
Supplied in a foam lined black plastic carry case for convenience.
£330.10

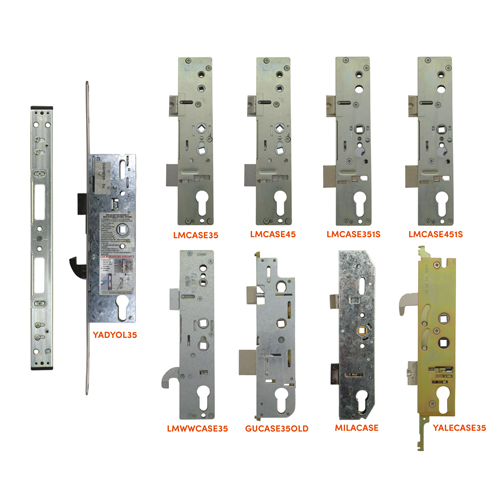

- x1 Lockmaster 35mm backset double spindle
- x1 Lockmaster 45mm backset double spindle
- x1 Lockmaster 35mm backset Single spindle
- x1 Lockmaster 45mm backset Single spindle
- x1 Yale G2000 35mm backset
- x1 GU old style 35mm backset
- x1 Mila old style 35mm backset
- x1 Lockmaster 35mm backset with hook and Latch
- x1 Yale overnight lock 35mm backset
- x1 Adjustable keep
- x1 Torx screwdriver
