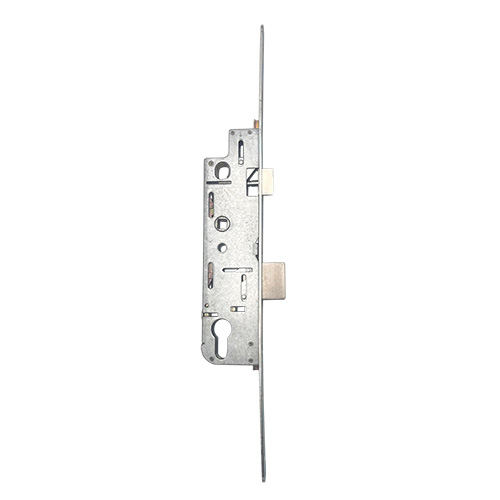

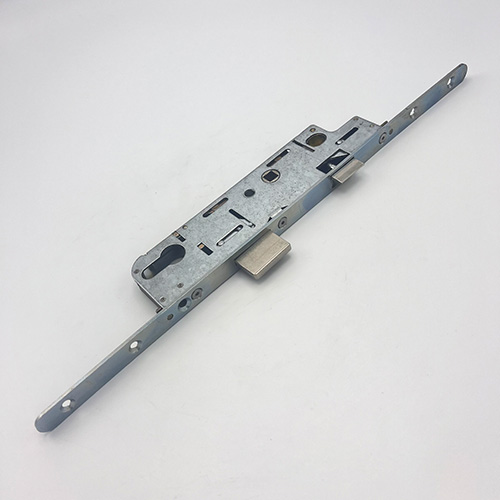

Yale GU Old Style Overnight Lock – Lift Lever 16mm Faceplate
This GU old style lock secures properties overnight while the replacement multipoint lock is acquired.

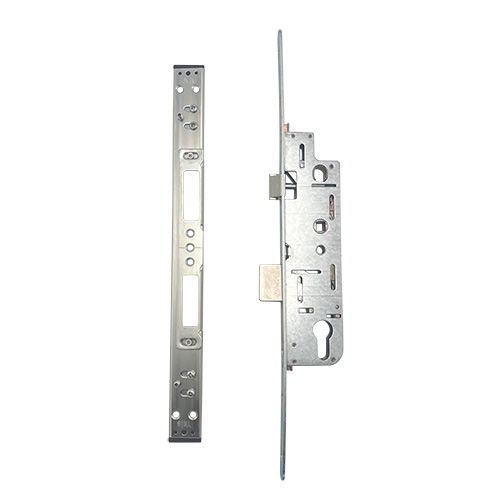

Supplied with unique adjustable keep and screws
Operation: Lift Lever
Latch reversal: Push latch clear of the faceplate, twist the latch to reverse and release.
£50.68

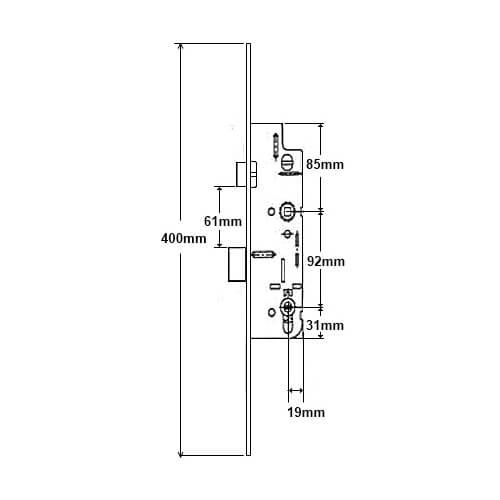

- Faceplate: 290mm x 16mm
- Case Height: 208mm
- Case Width: Backset + 19mm
- Centres: 92mm
- Backset: 35mm

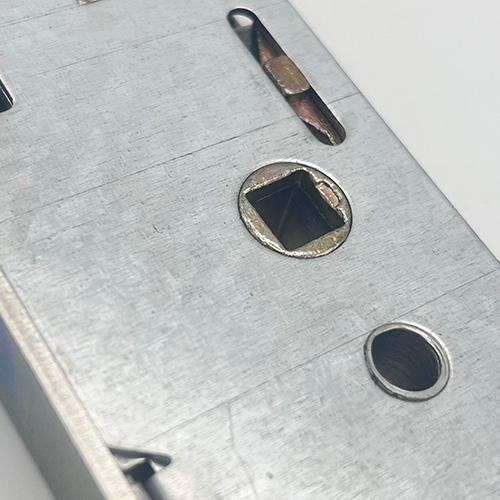

- Spindle: Single 8mm
- Packaging: Supplied in singles
